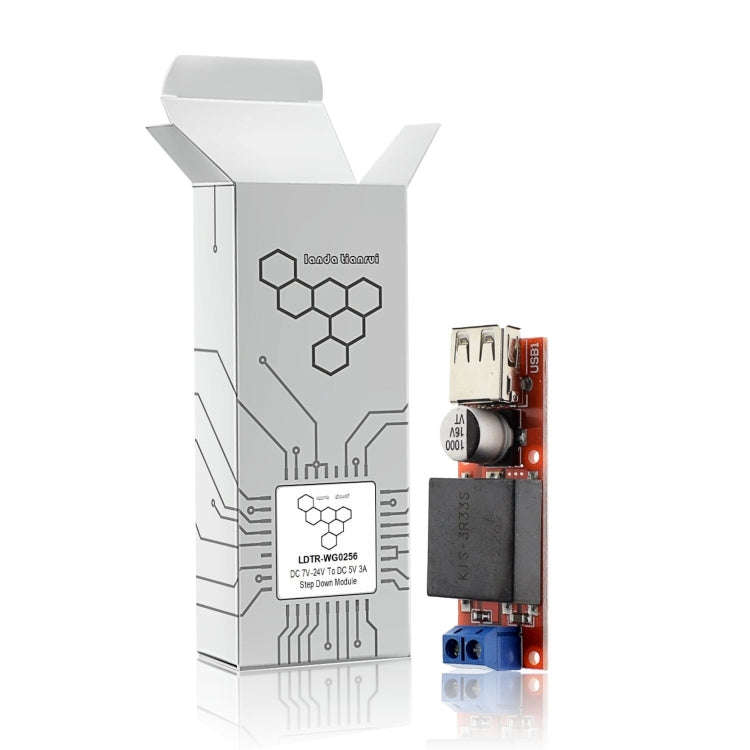

LDTR-WG0256 DC 7V-24V To DC 5V 3A USB Output Converter Step Down Module
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
ZY14348265
Bob Shop ID
605075347

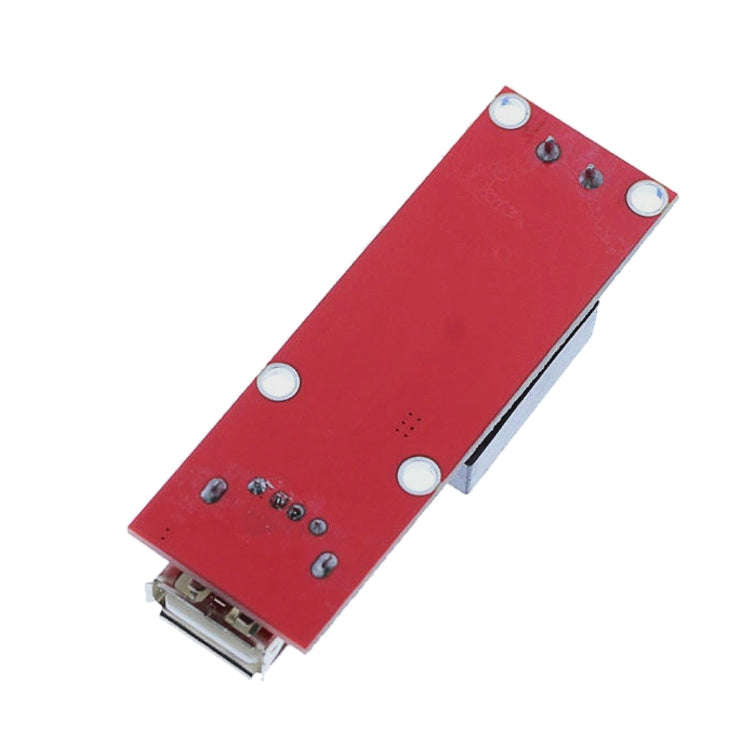

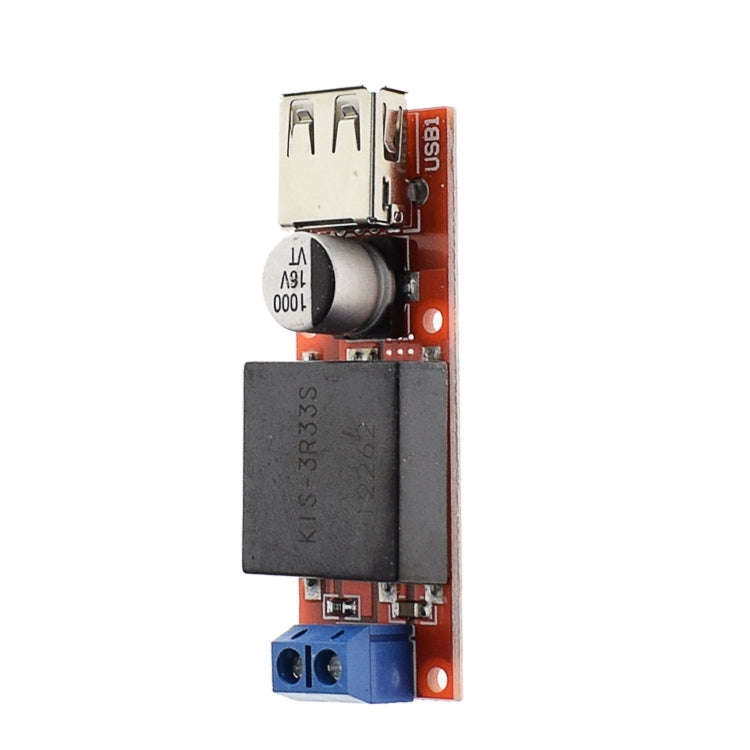

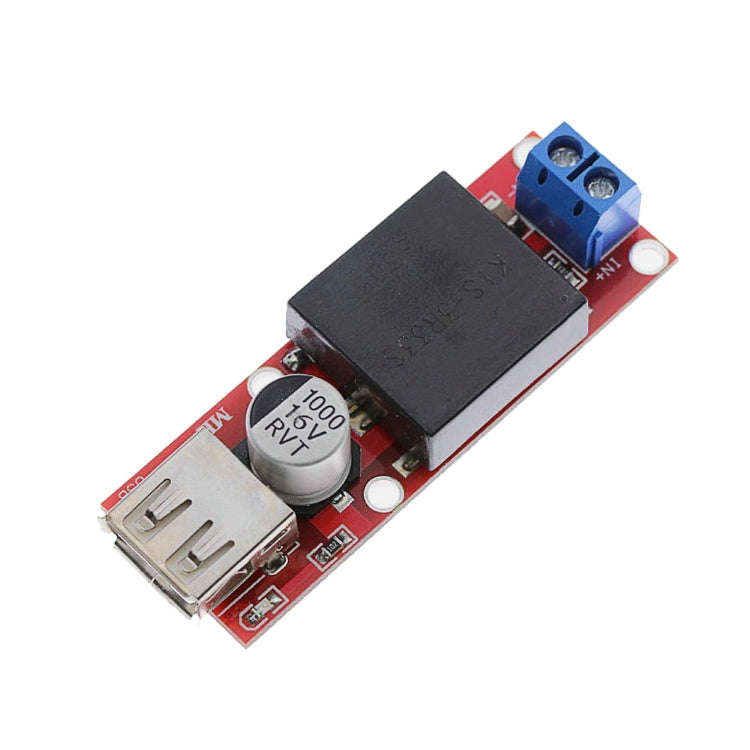

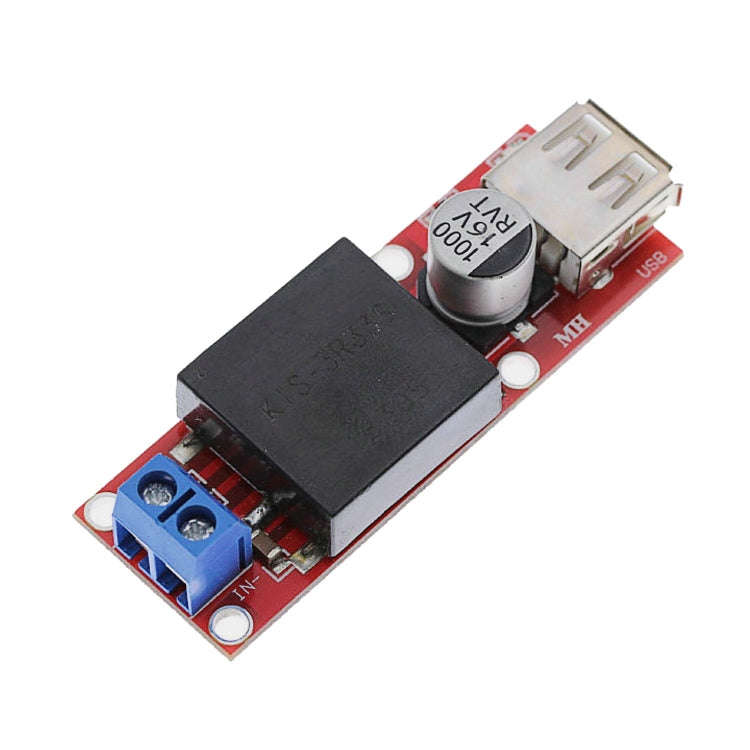

This 5V USB output converter module is based on the KIS3R33S module specific design, the input voltage 7V to 24V, output voltage 5.01V 2.5A peak output current of 4A continuous output. Able to provide 3A continuous load current. The majority of players professional testing, with high efficiency, ultra-low loss characteristics, beyond lm2596 power module. This module has a USB recognition. This module uses the original Sanyo low ESR filter capacitor voltage as low as possible so that the ripple 30mV, fully capable and linear power comparable. IN-(input negative), IN + (positive input), OUT-(negative output), OUT + (positive output) must be connected to the right, otherwise may cause damage to the module.
The USB output converter module has short circuit protection, 5A current automatic protection.
Specification
1. Modules nature: Non-isolated buck
2. Rectification: Non-synchronous rectification
3. Input voltage: DC 7V - 24V
4. Output voltage: DC 5V
5. Output current: 4A(short time)
6. Conversion efficiency: 96% (MAX)
7. Switching frequency: 340KHz
8. Output ripple: 30mV(max)
9. Load regulation: +/- 0.5%
10. Voltage regulation: +/- 2.5%
11. Operating temperature: -40 degree C to +85 degree C
12. With overcurrent protection
13. Size: 60 x 21 x 14mm
Notice
1. DIY mobile power supply, to achieve 5V output for charging Phone, MP3, MP4, PSP etc.
2. Please connect right as the printed: IN-, IN+, OUT-, OUT+, or the module will be burned
3. May not charge for the IPAD
Package included
1 x KIS3R33S USB output converter module
