LDTR-WG0265 DC 6A Motor Speed Governor Slow Down Motor Controller Positive And Negative Rotating ...
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
ZY14348394B
Bob Shop ID
605075340
Features
1. Input voltage range: DC 10V-60V
2. Rated current: continuous operating current within 6A
3. Function: control DC brush motor speed, forward, stop, reverse

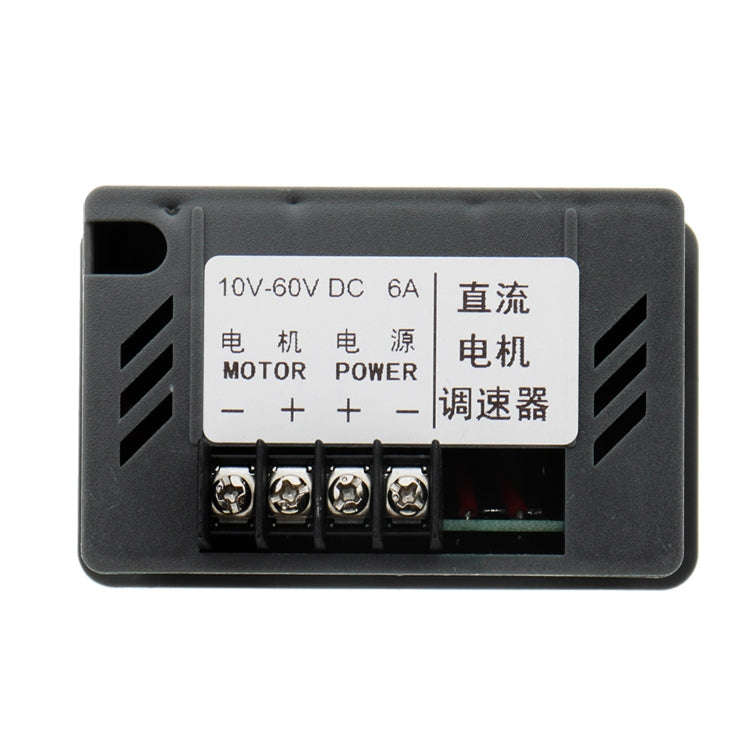

4. Installation method: panel type, and wiring according to wiring diagram
5. Brand: Landa tianrui
6. Model: LDTR-WG0265
7. Material: FR-4

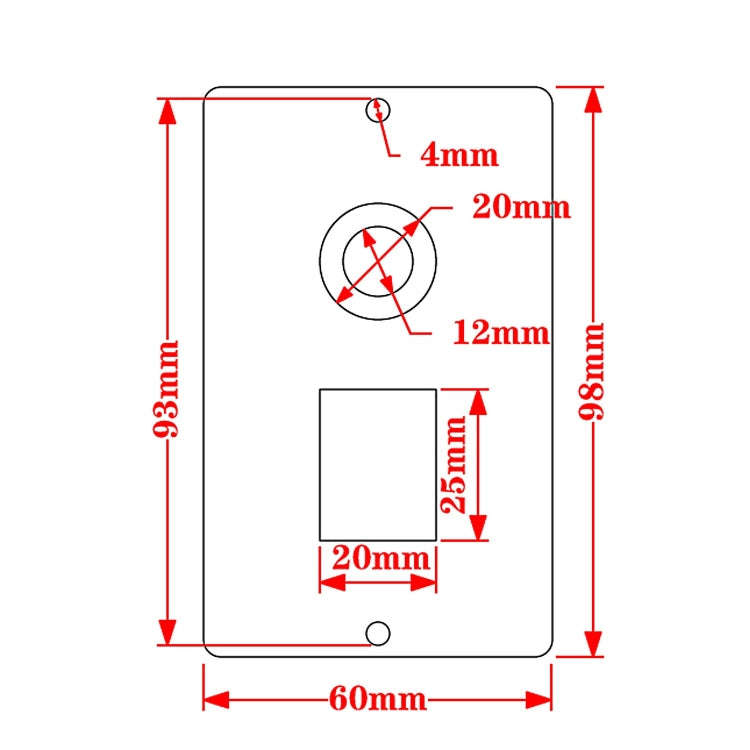

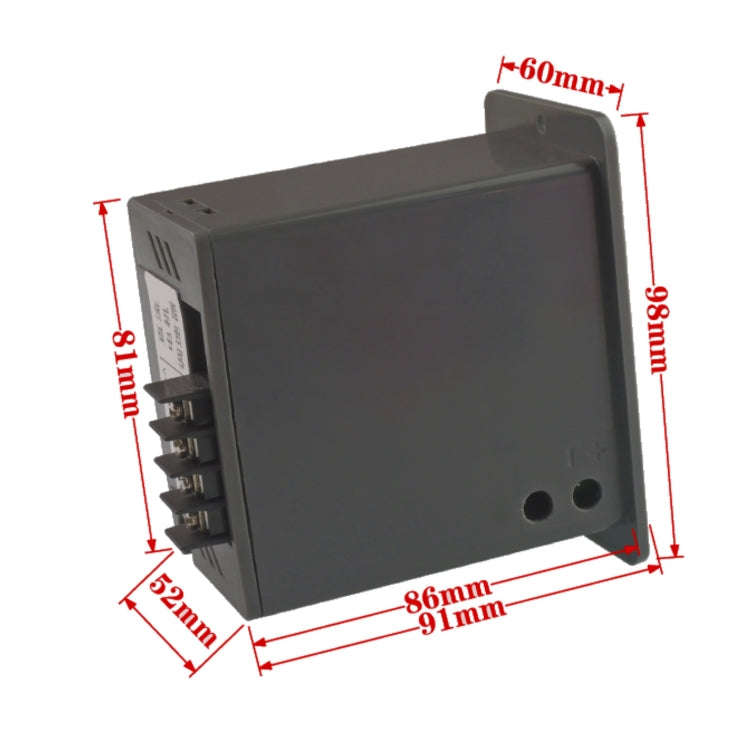

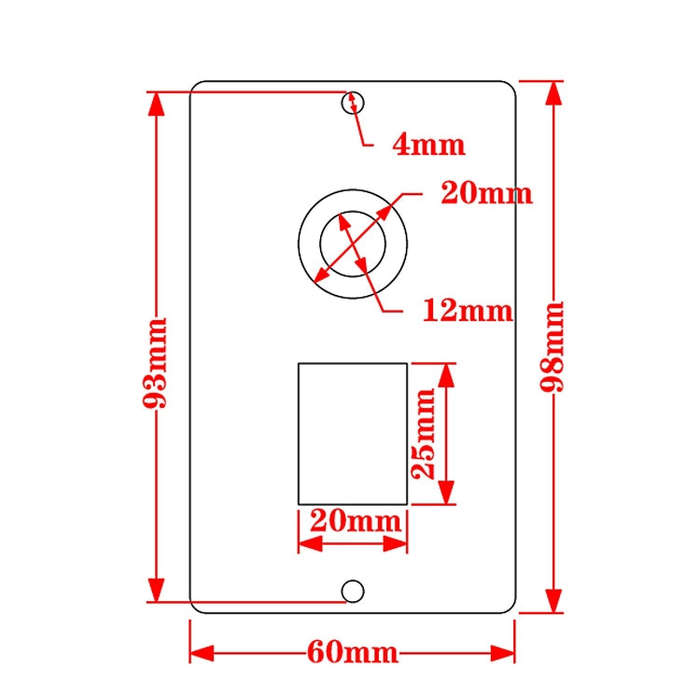

8. Dimensions: 9.8 cm * 9.1cm* 6cm
9. Weight: 124 g
10. Package Included: 1 x Motor Speed Controller
Note
1. The input of the DC motor governor is DC, and it cannot be directly connected to AC (for example, household 220V AC), otherwise it will burn out.
2. The positive and negative poles of the DC power cannot be reversed, otherwise the governor will be bad.
3. The motor is not divided into positive and negative. When the running direction is inconsistent with the expectation, the direction can be changed by adjusting the line sequence.

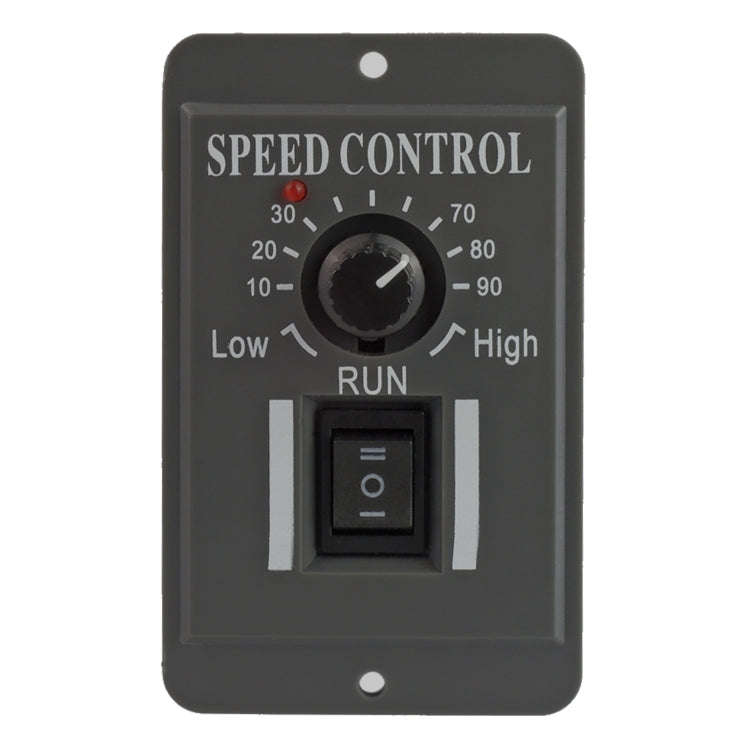

4. The potentiometer knob can change the governor output duty cycle, thus changing the motor speed.
