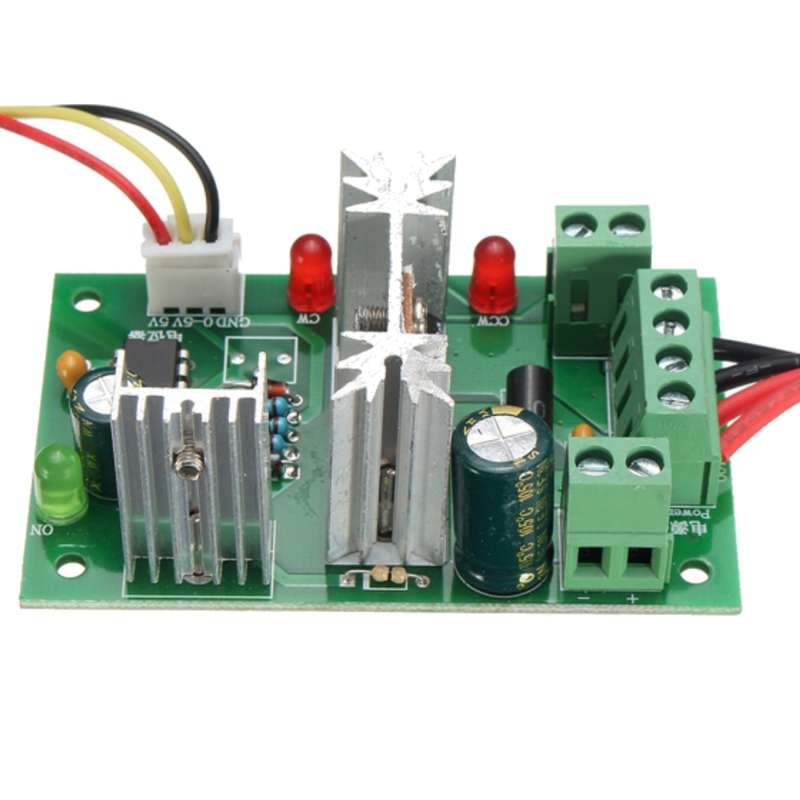

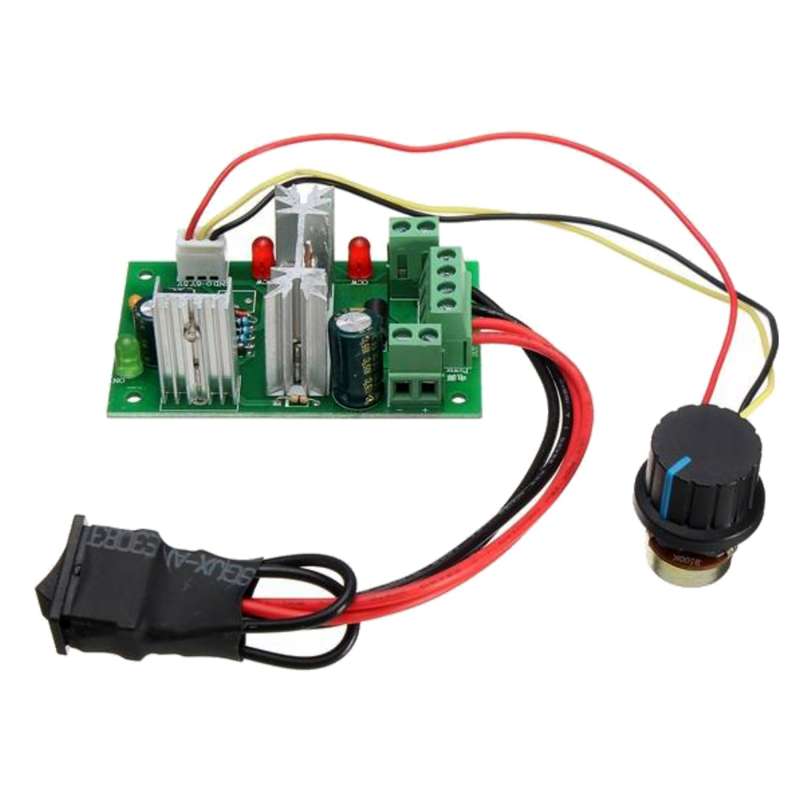

LDTR-WG0266 DC 6-30V 200W 16KHz PWM Motor Speed Controller Regulator Reversible Control Forward/Reverse Switch (Green)

Features
1. High efficiency, high torque, low heat generating
2. Control the speed of a DC motor with this controller
3. With reverse polarity protection, high current protection

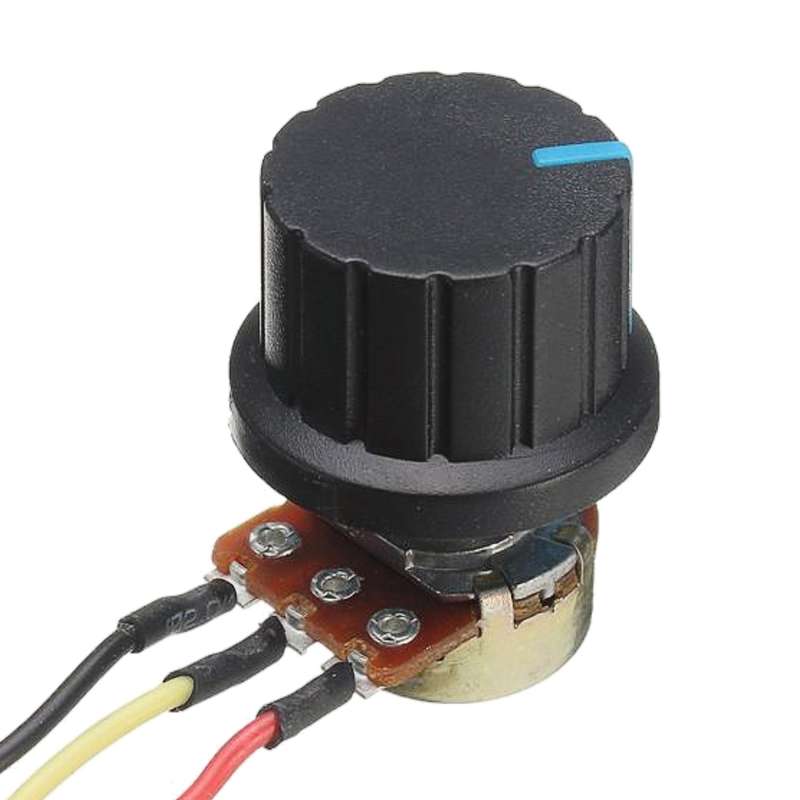

4. With potentiometer

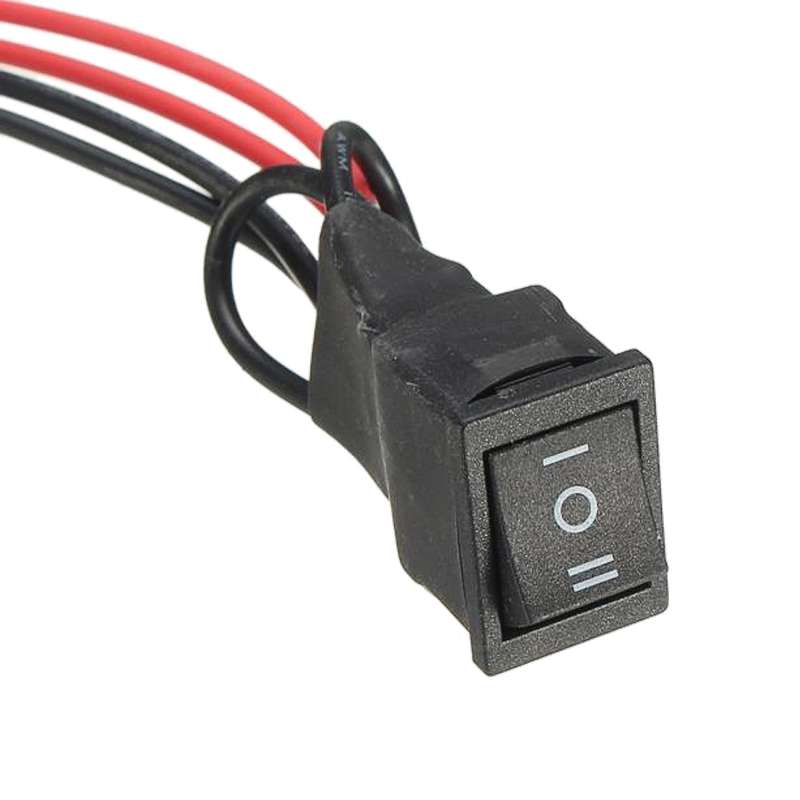

5. With reversible switch

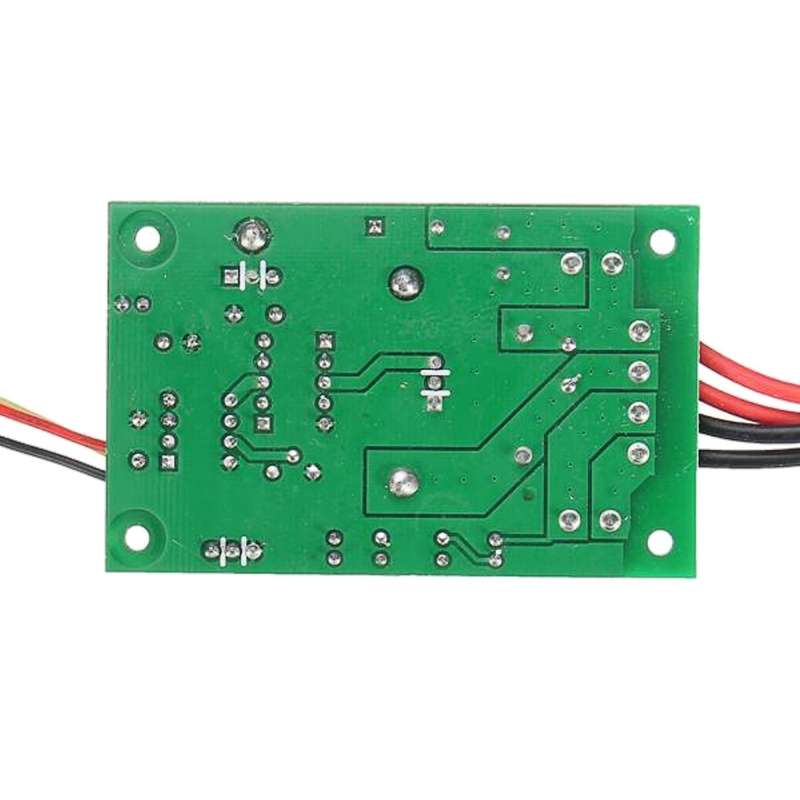

6. Speed controller is made with high quality circuit board which ensures a longer service life
7. This simple and easy-to-use DC motor speed controller has an stable performance
8. The output current of this motor speed controller can be adjusted from 6A to 10A, and it is simple to set
9. This motor speed controller uses screw terminals for convenient and quick wiring

Specifications
1. Input Voltage: DC 6V-30V
2. Output Voltage: Linear with load
3. Output Current: 6A-10A
4. Power: Max. 200W
5. Speed Range: 0% to 100%
6. Regulation Method: Potentiometer
7. Regulation Type: Regulating Current
8. Control Frequency: 16KHz
9. Wiring Type: Screw terminal
10. Rotary Knob Wire Length: 20cm
11. Brand: Landa tianrui
12. Model: LDTR-WG0266
13. Material: FR-4

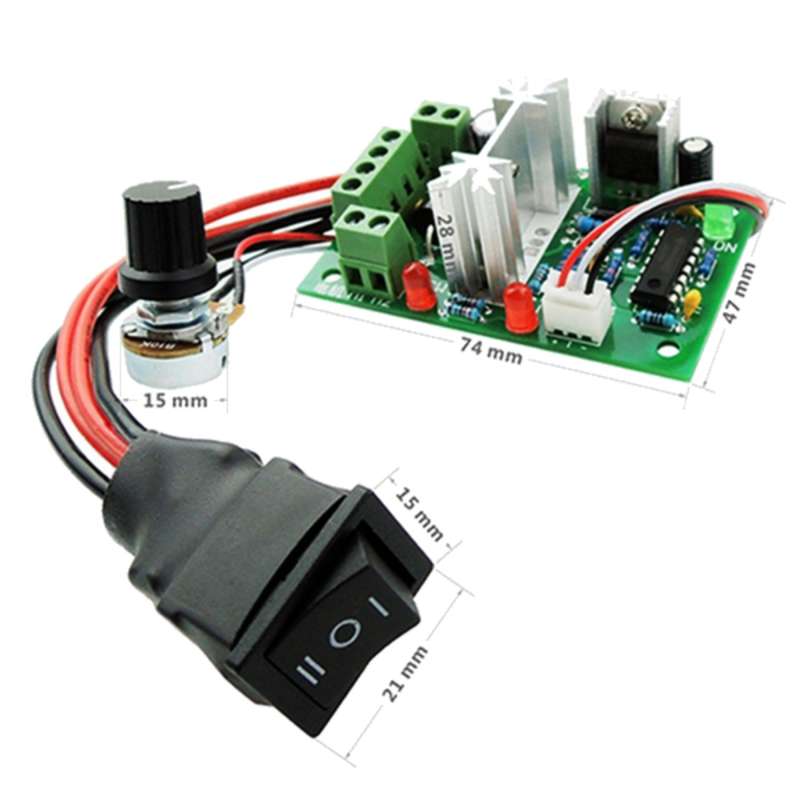

14. Dimensions: 7.4 cm * 4.7 cm* 2.8cm
15. Weight: 68 g
16. Package included: 1 x PWM DC motor speed controller
