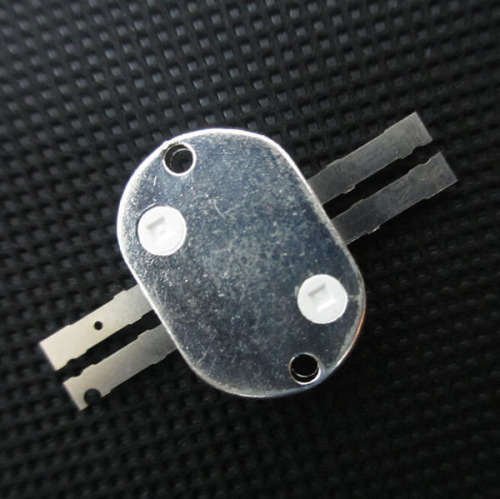

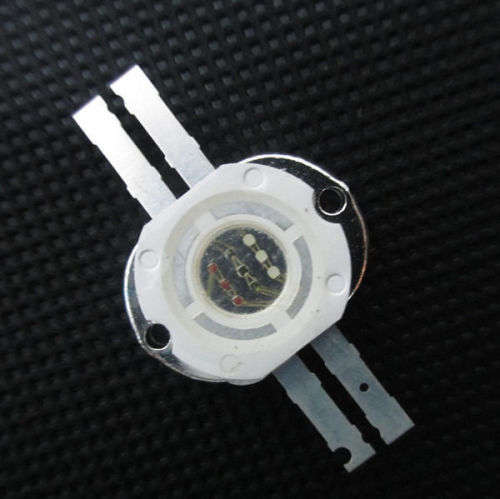

10W LED RGB Round Chip:
Specifications:
Total Power Usage: 10W
Wavelength: Red: 620-630nm, Green: 520-525nm, Blue: 460-465nm
Lumens: Red: 90-100 Green:120-130 Blue: 30-40
Forward Voltage: Red: 6-7V, Green: 9-10V, Blue: 9-10V
Forward Current: 300-350mA
Configuration:
One leg is your Positive. The other 3 are R,G,B.
Positive Leg: Marked with Black Pen.
Red Leg: Leg with a small hole (next to positive leg)
Green + Blue Legs: The two remaining Plain Legs.
