LED Driver Board Kit Single 1CH 6-bit 40P 0.5mm Pitch for 1366x768 Resolution Notebook Screen Modifi

Size Conversion

Inches

Centimeters

Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.

Feature:

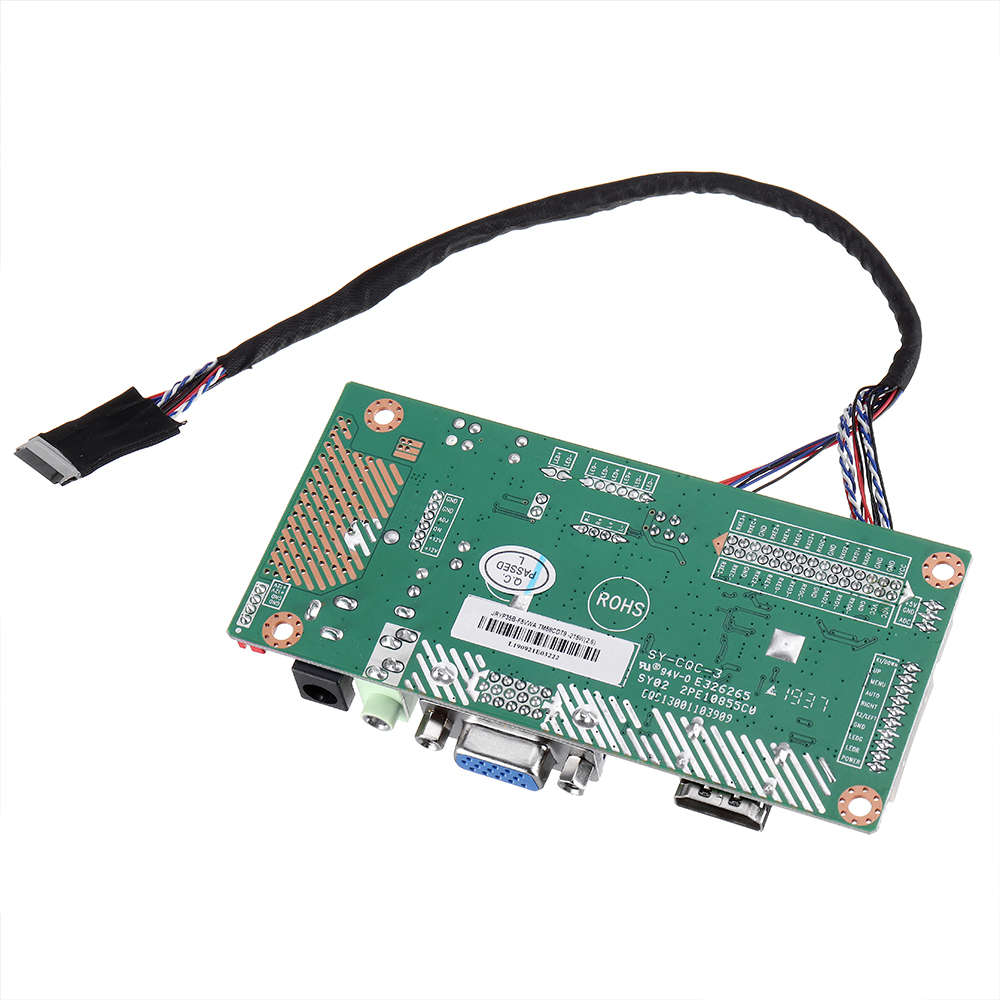

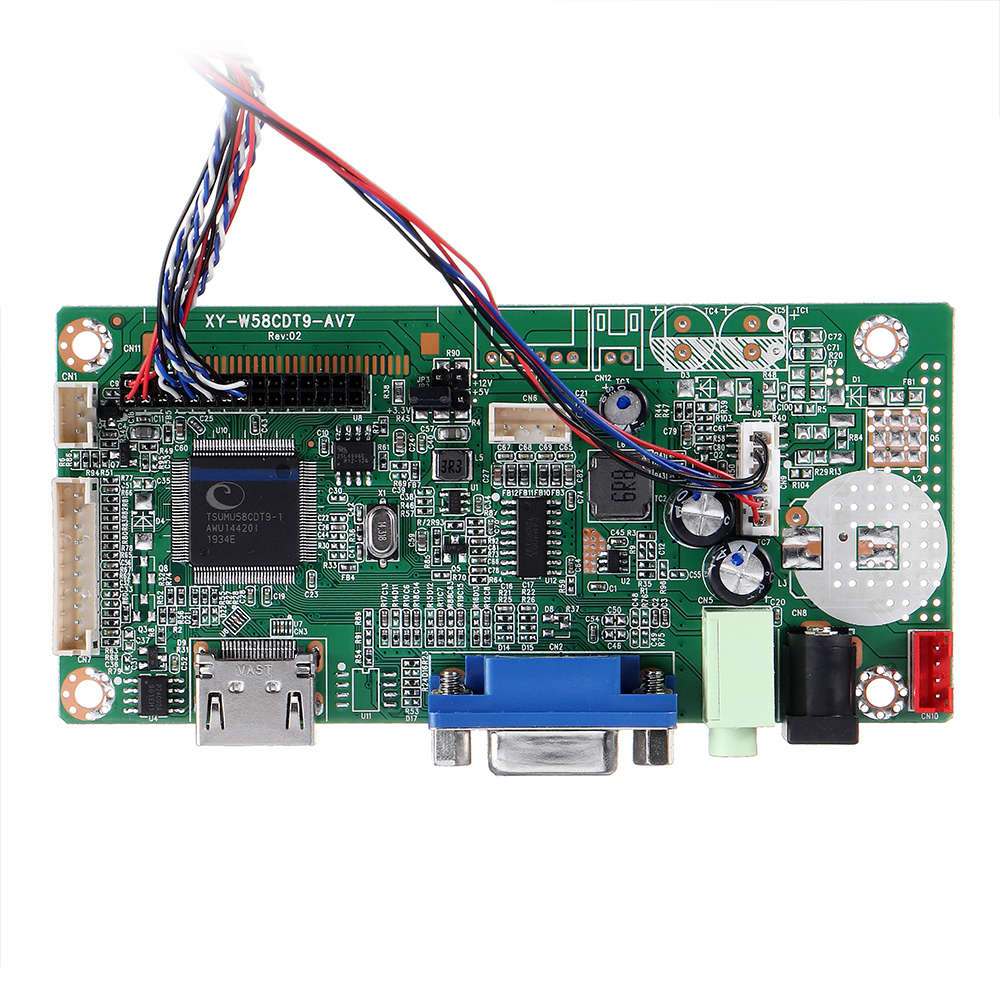

1. This is a new type of integrated liquid crystal display control motherboard. The main chip uses the new chip TSUMU58CDT9-1 of Chenxing Semiconductor

2. It can support VGA and HDMI input. If the HDMI signal is connected to the HDMI signal, the 3.5 audio socket of the motherboard can support the output of sound. It can be connected to your headphones, home audio, etc.

3. The default resolution is: 1336 * 768, 1CH 6-bit. The standard screen line is LED single 6-40P-0.5MM pitch.

4. Function: Support VGA and HDMI input, it support most PC high-definition set-top boxes Xbox / PS3 / PS4, while audio input in HDMI, 3.5 audio port can output sound at the same time.

5. Power supply requirements: DC12V, 2A-4A (Be careful insulation)

Note:

As long as your LVDS signal interface is: 1CH 6-Bit, the number of pins is 40Pins, the pitch is 0.5MM, and the screen with a resolution of 1366 * 768 can support. Regardless of size, it can be from 11 inches to 15.6 inches, all can be supported. No additional firmware is required.

Example model:

LTN116AT01 (supported)

LTN133AT21 (supported)

B140XW01 VC (supported)

lp140wh1-tla1 (supported)

N140BGE-L22 (supported)

LTN140AT02 (supported)

HSD140PHW1 (supported)

...,etc

How to check the LCD information:

Step 1: Open this link: panelook.com

Step 2: Enter your LCD model and search.

For example:

LCD MODEL: LP140WH1-TLA1, Check these two data, confirm that the resolution is 1366 * 768, the screen line is LVDS (1 ch, 6-bit) 40 pins Connector, it is compatible. Other datas are not compatible.

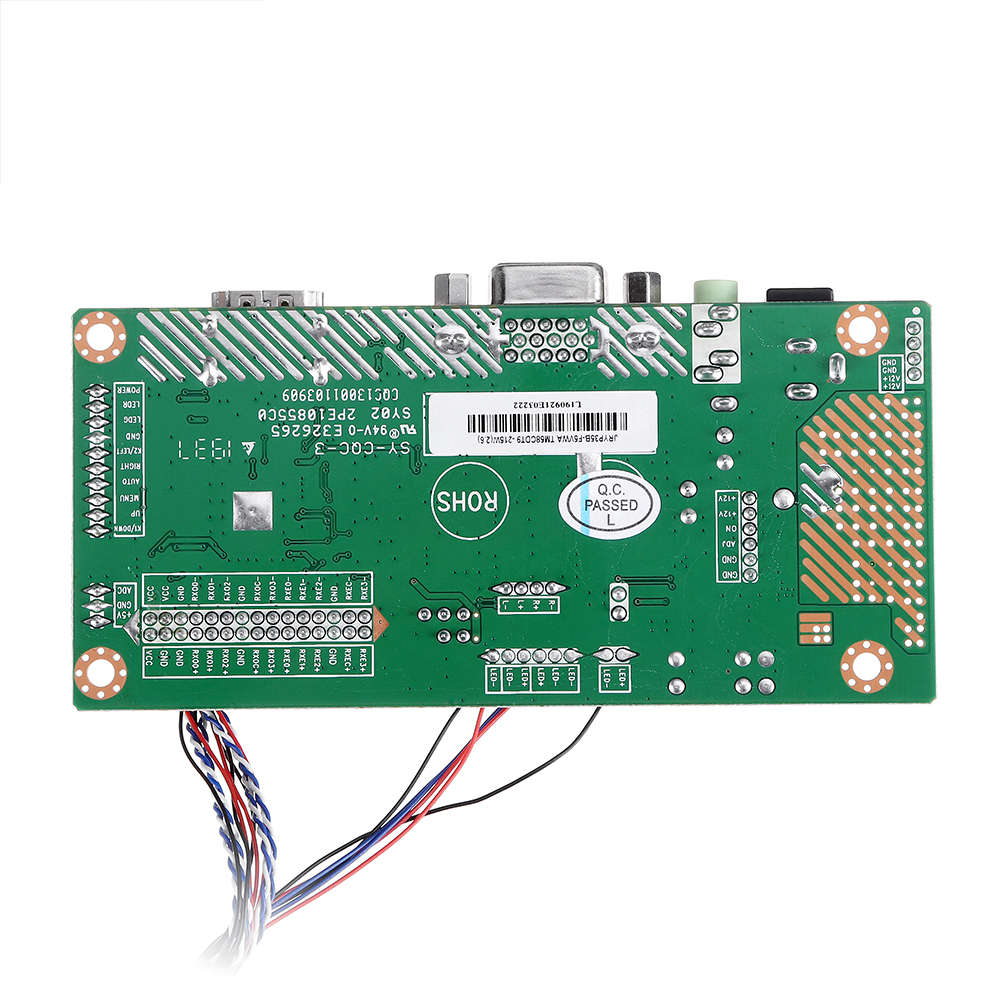

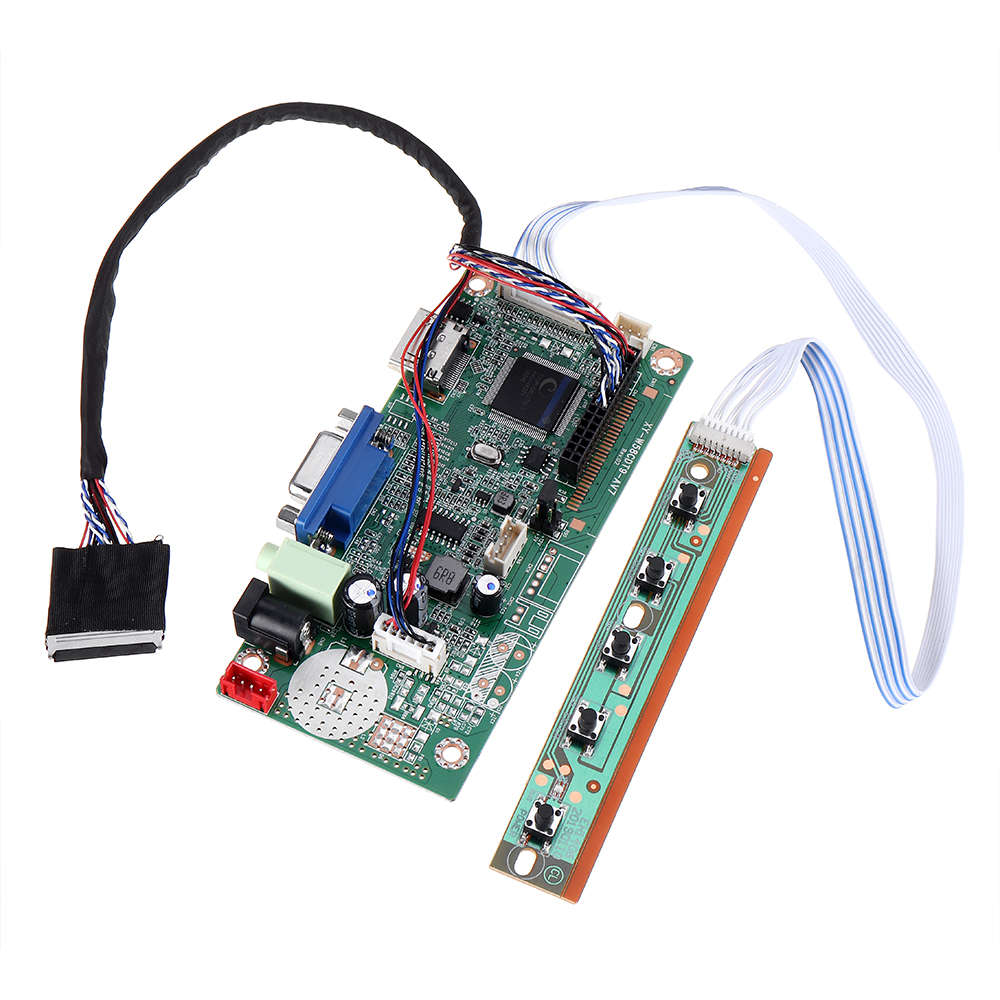

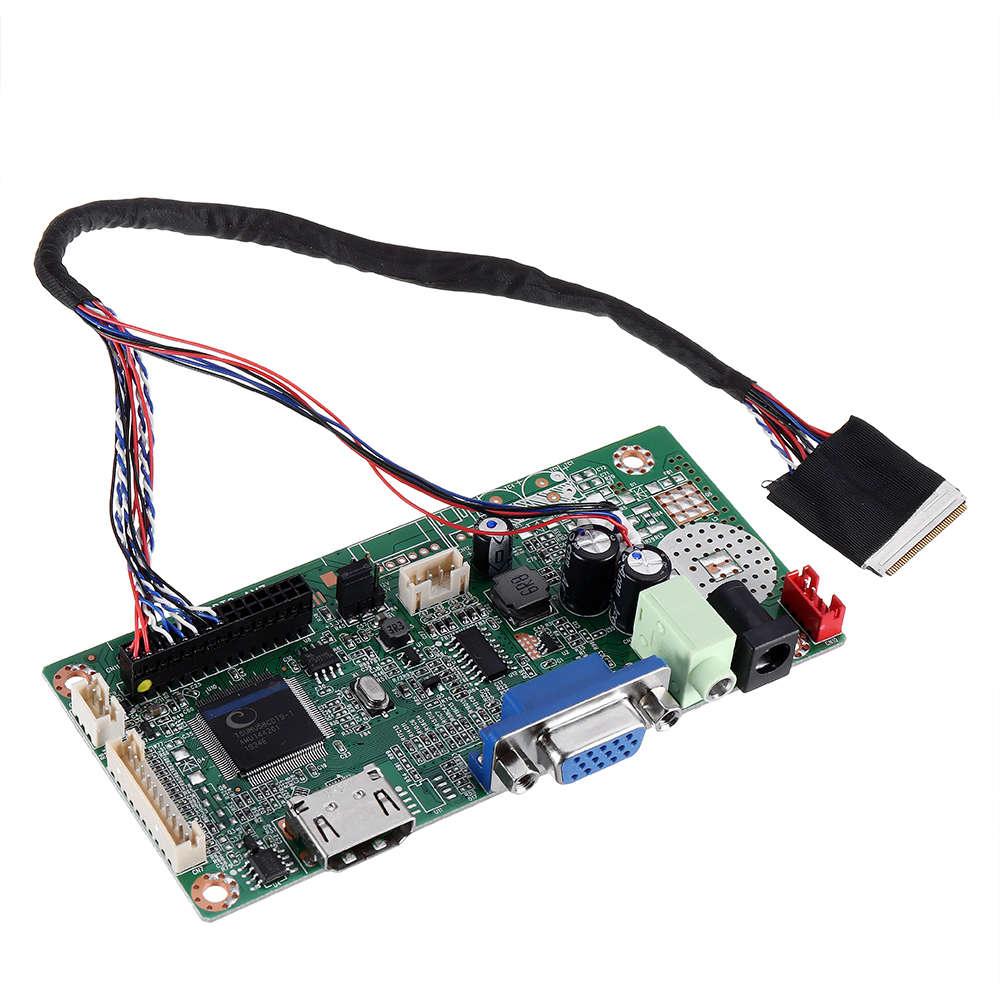

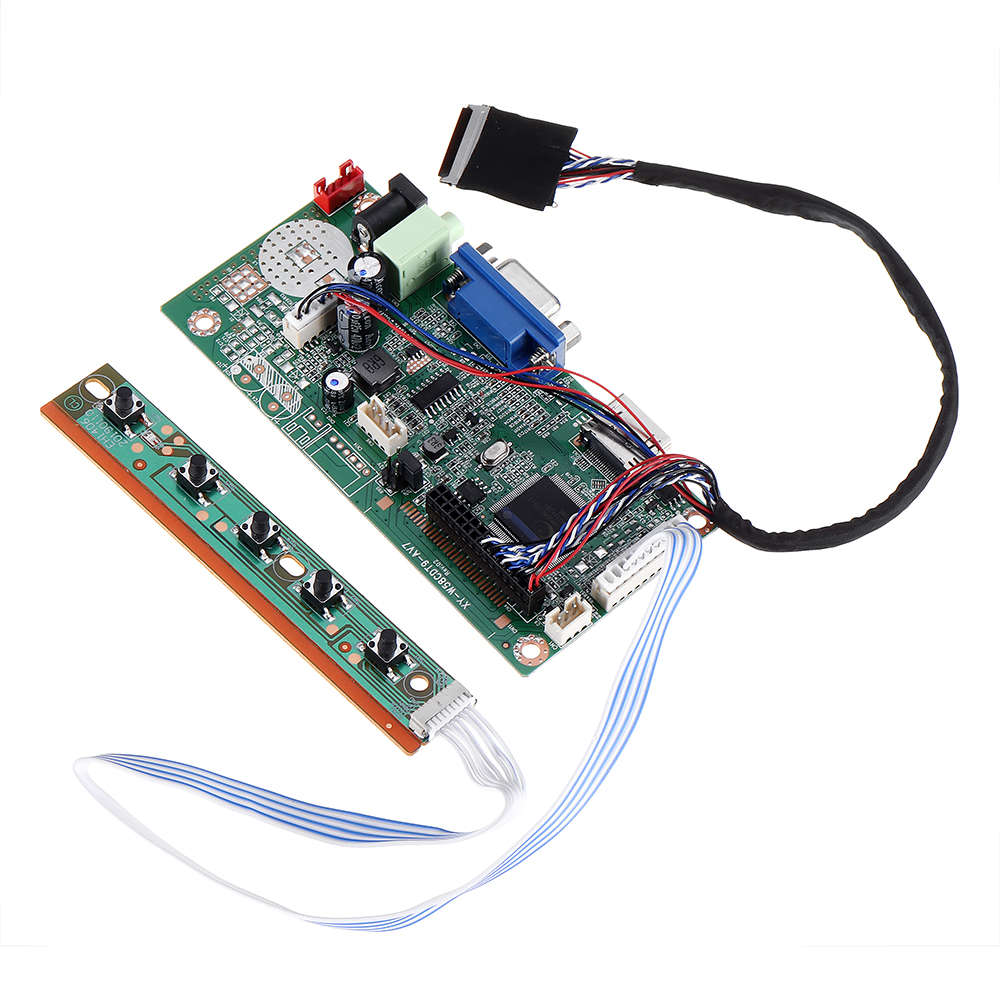

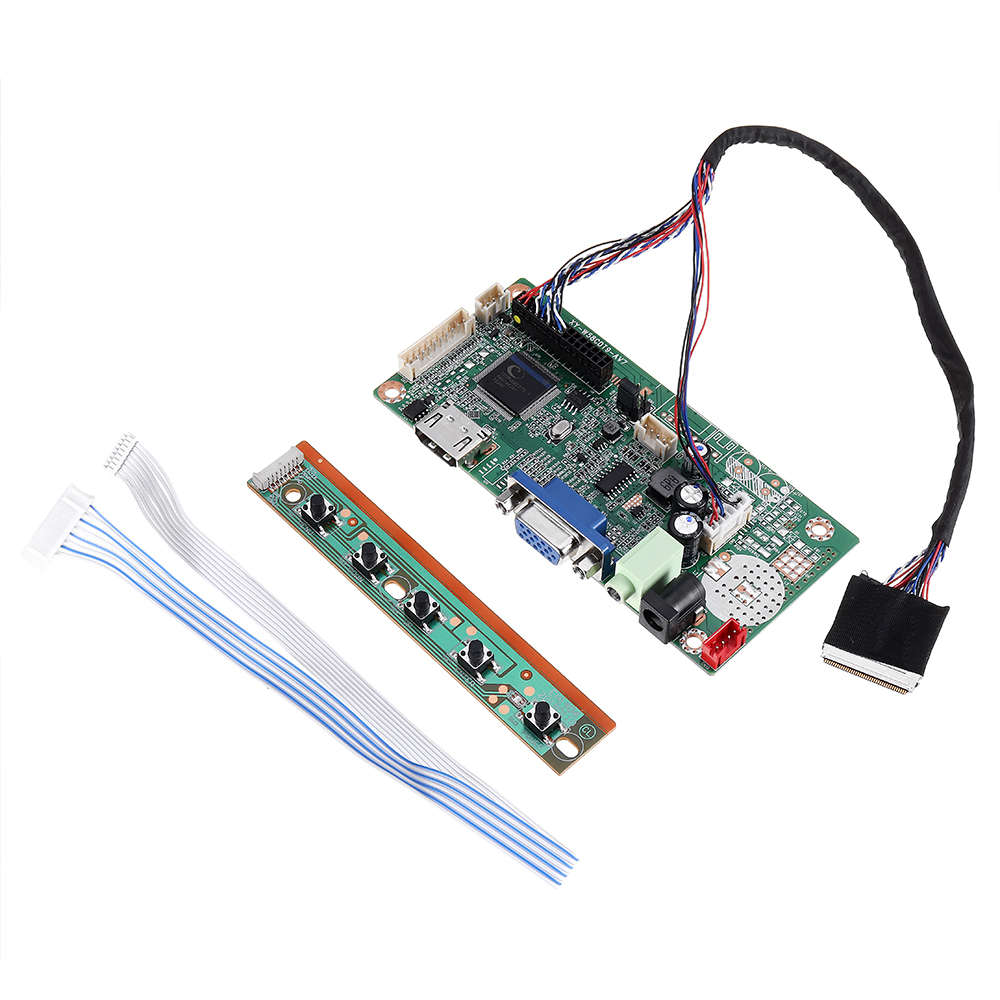

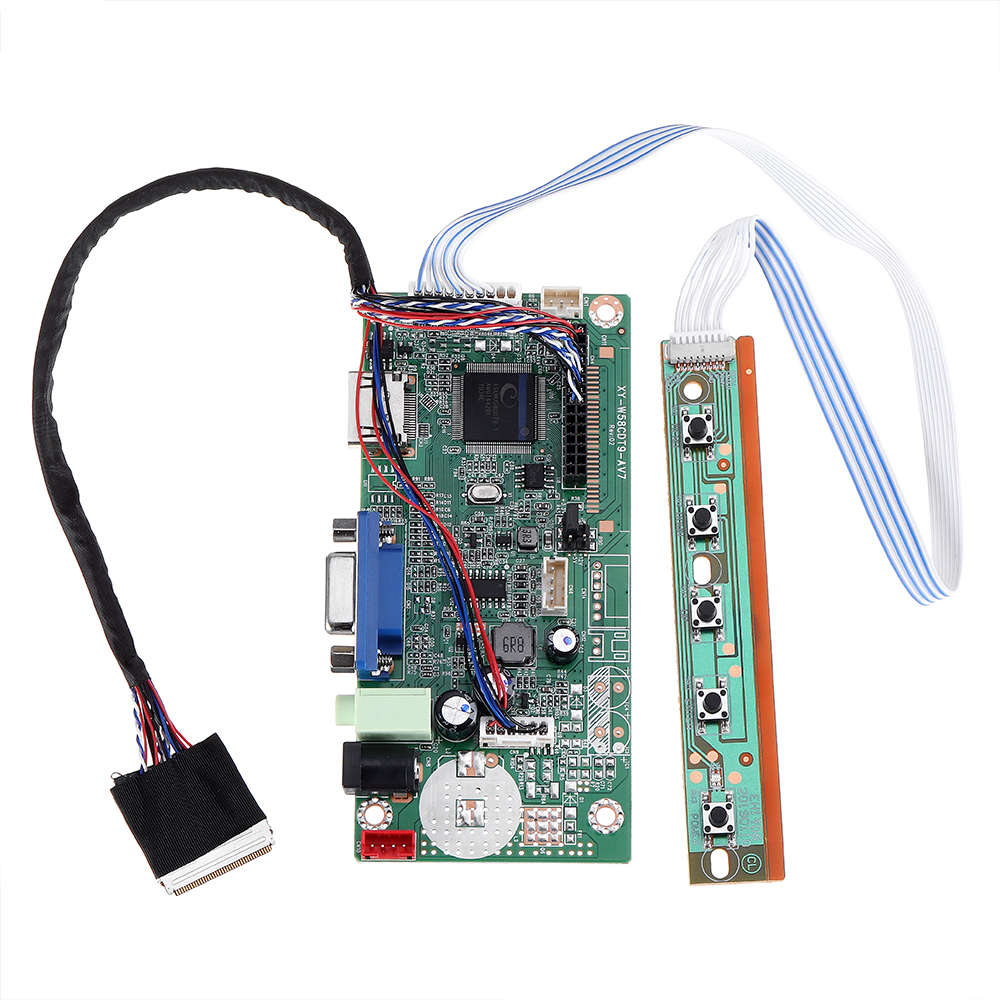

Package includes:

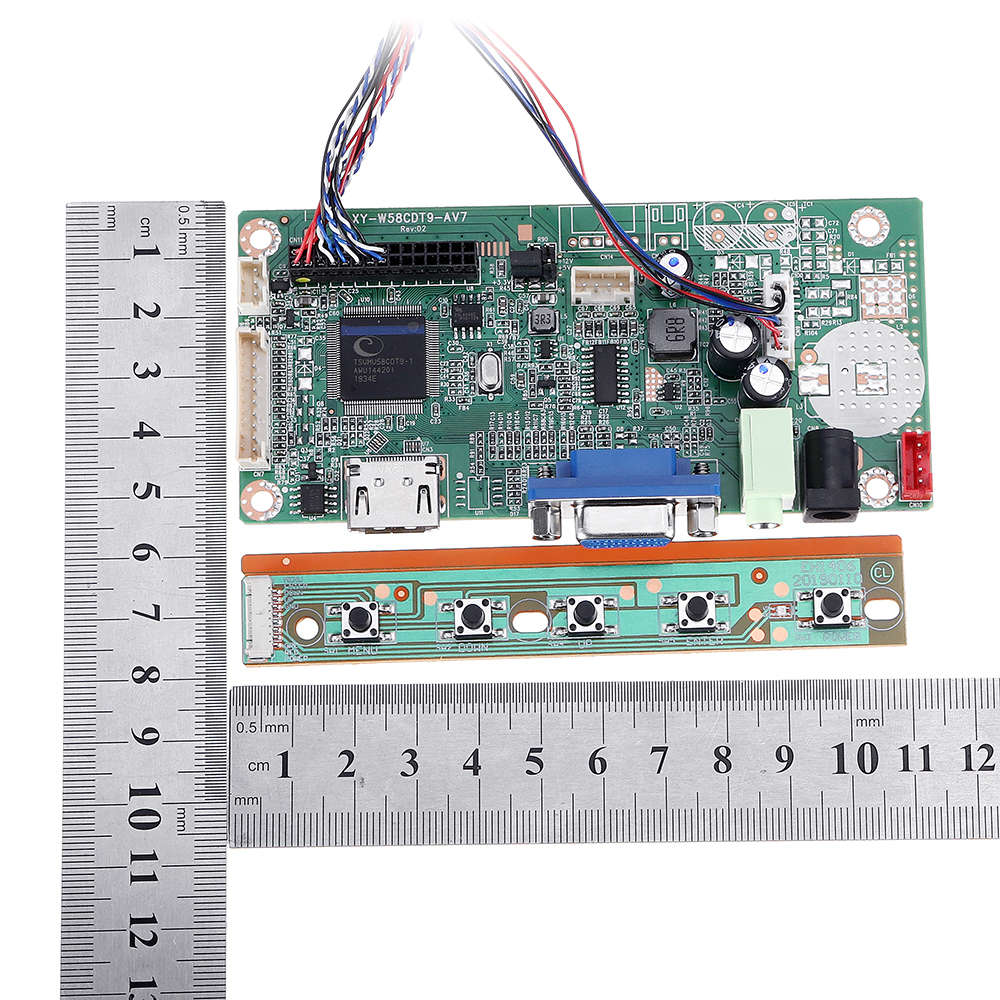

1 x Motherboard

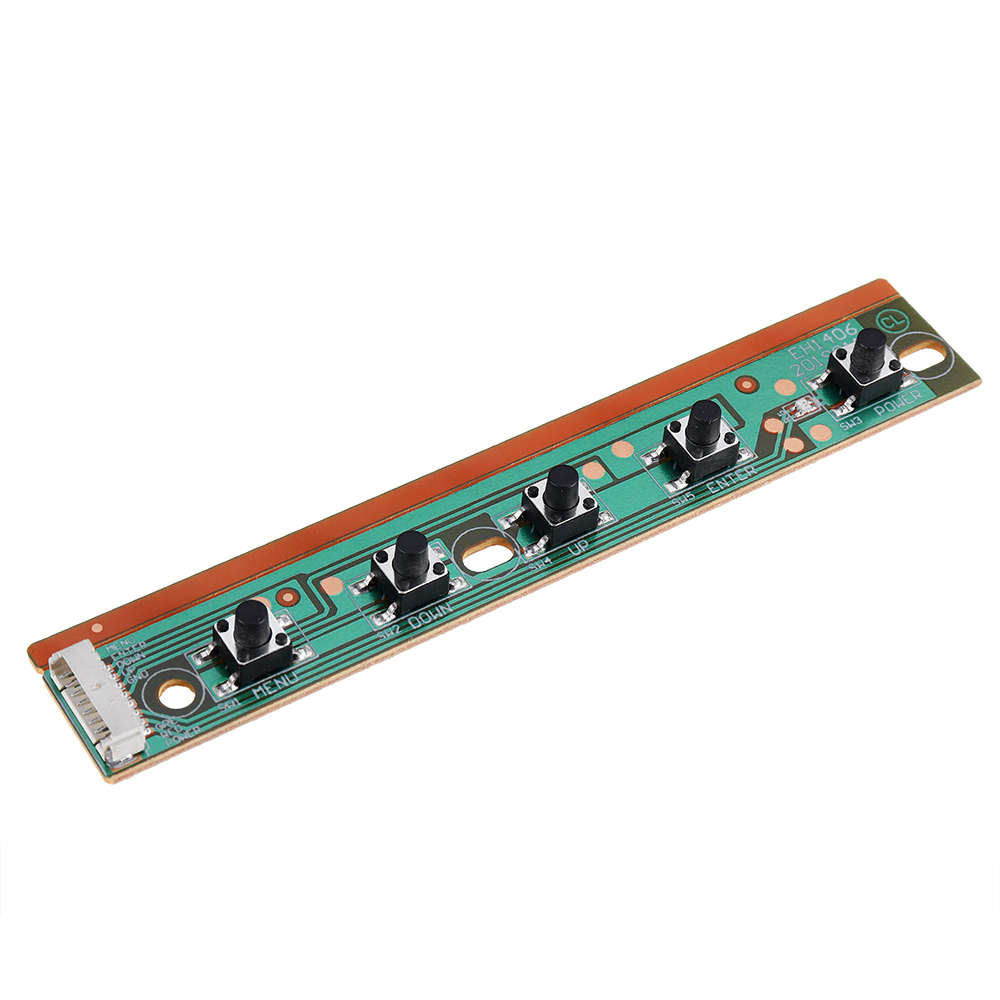

1 x Button

1 x LVDS cable
