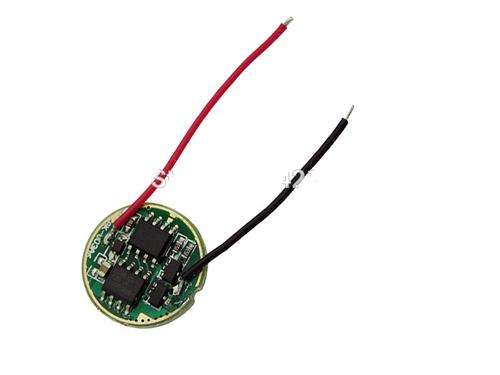

Led Driver for Cree XML T6 Flashlight

Led Driver for Cree XML T6 Flashlight:

Technical Parameters:

• Diameter:  16mm

• Thickness: 3.5mm

• Forward Voltage: DC3.7V

• Current: 300mA~2500mA
• 5Modes: Low, Middle, High, Strobe, SOS

• Operating Temperature: -20~80 degree

• Storage Temperature: -20~80 degree

• Function: Open circuit, Short circuit and Over loading

• Application: Fit for P7,XML-T5,XML-T6 High Power LED light.

•

• Important Notice:

• The red wire is positive and the blue wire is negative, both can attach to the led. On the backside: inside of the circle,it is positive for power supply;outside of the circle,it is negative for power supply.
• Safety information:

• Supply voltage of this product is DC3.7V .

• Never connect two wires directly in case of short circuit.
