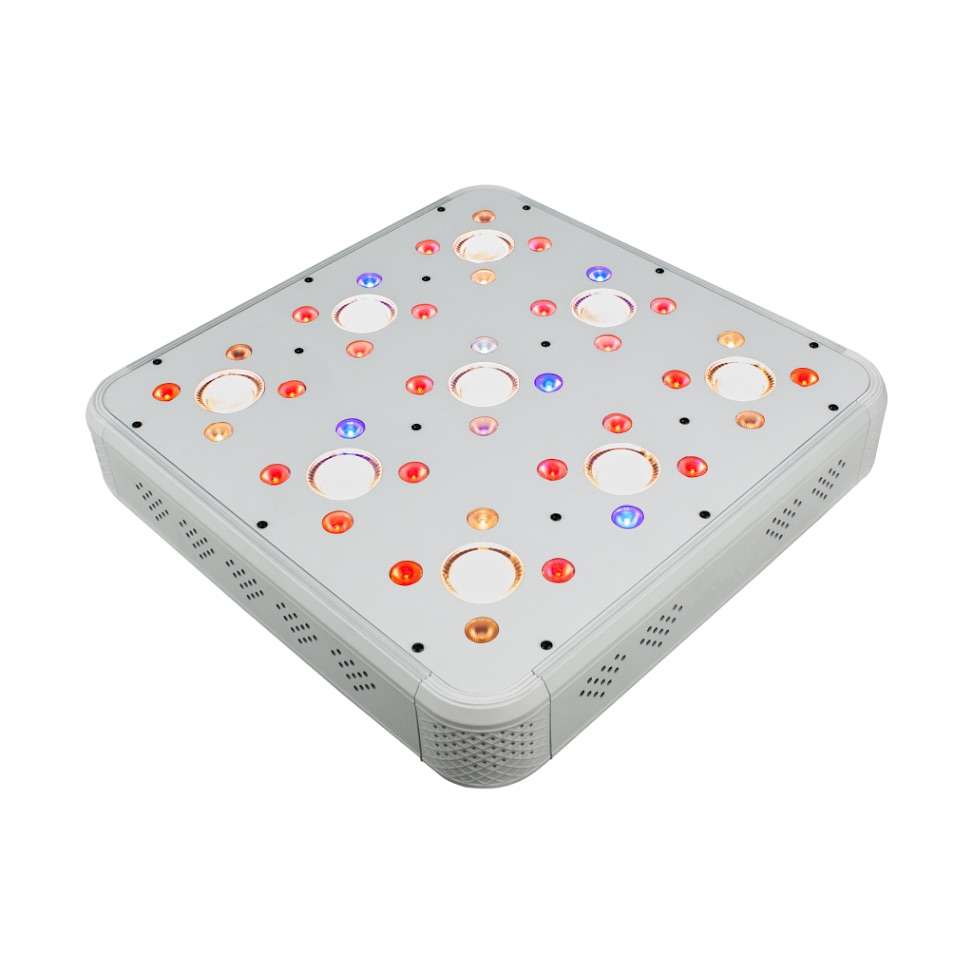

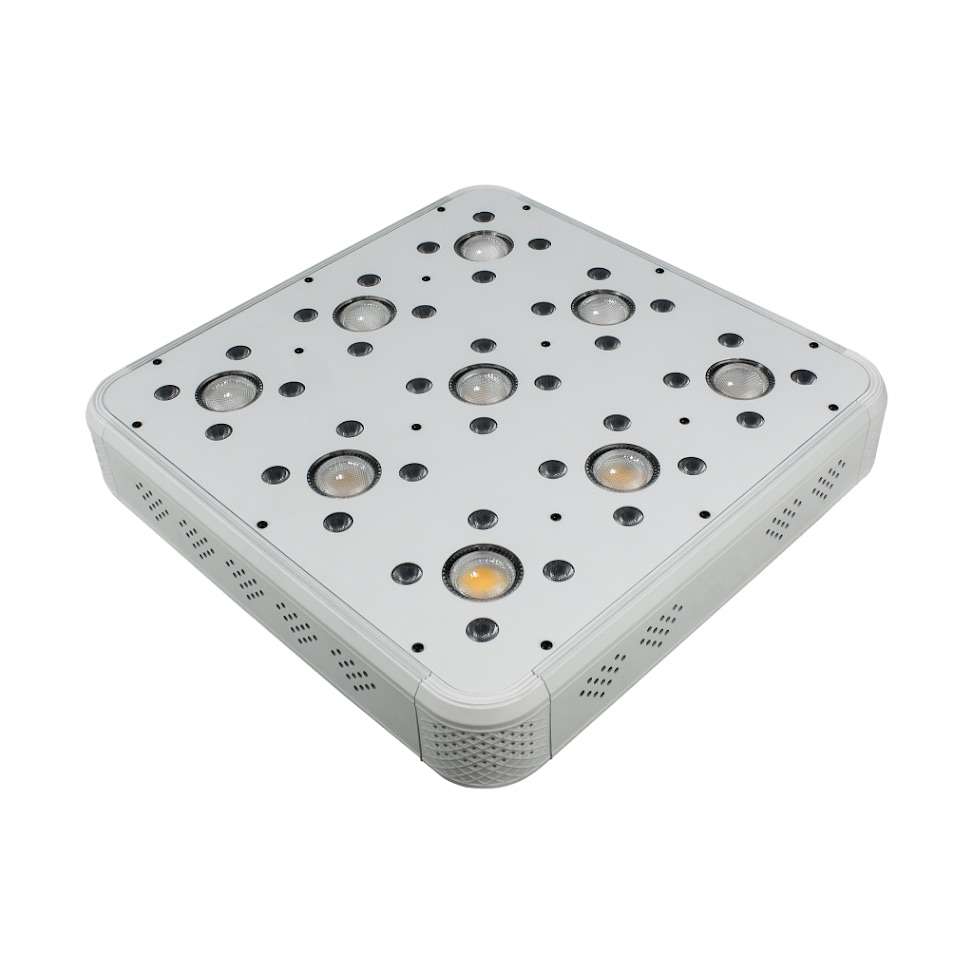

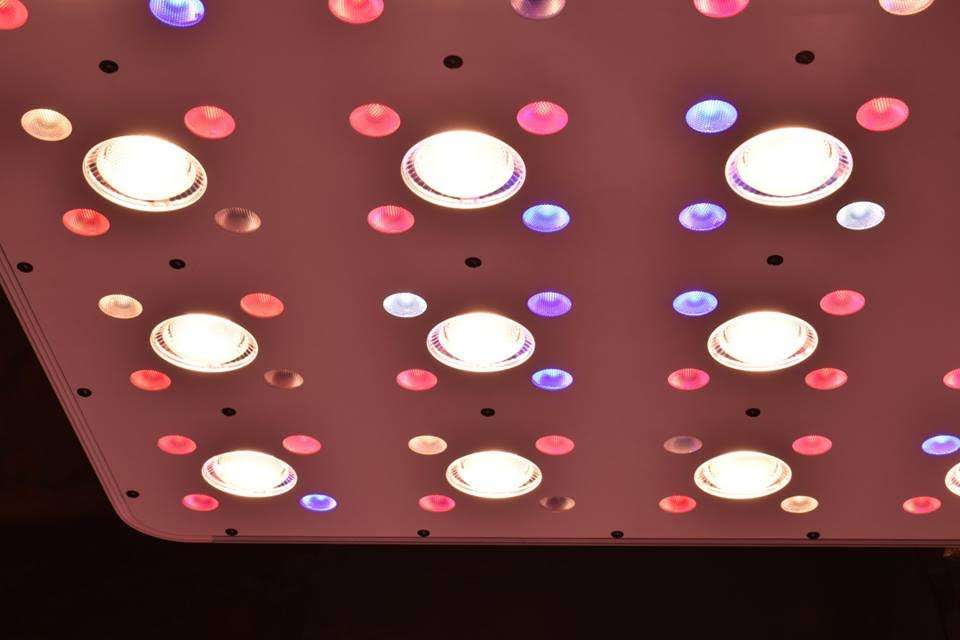

The latest Cluster LED Grow Light series is designed specifically for home cultivators who are looking for a high-quality and performance LED grow light but at affordable price.
These full spectrum lights will provide all wavelength lights needed for growing your favorite herb. Thanks to its 3000K and 5000K COBs, the Cluster have a high PPFD output that will help your plants grow faster and stronger. Each COB runs four 3W SMD3535 LEDs and they are backed by high-quality LED drivers.
All Cluster lights use lenses and not reflectors. Reflector can't protect chip surface which is made of silicone; small dust particles will stick to the surface and this will reduce the luminous efficiency, hinder heat transfer and reduce the lifespan of LED chips. This will not happen when the light uses lenses though.
Because of their adjustable Spectral output, these lights are smart; on the backside of each module there are three toggle switches (Veg, Full Spectrum, Flowering) and you can achieve different operating-patterns through various employment of the switches. Turn on Veg Switch for veg stage, turn on Veg Switch and Full Spectrum Switch for grow stage, turn on all switches for flowering stage.
This modus operandi will save you a considerable amount of electricity.
You can choose between 3 different LED modules (Small, Medium and Large).
The housing of the LED module is aluminum for the side panels and metal for the front and rear panel.

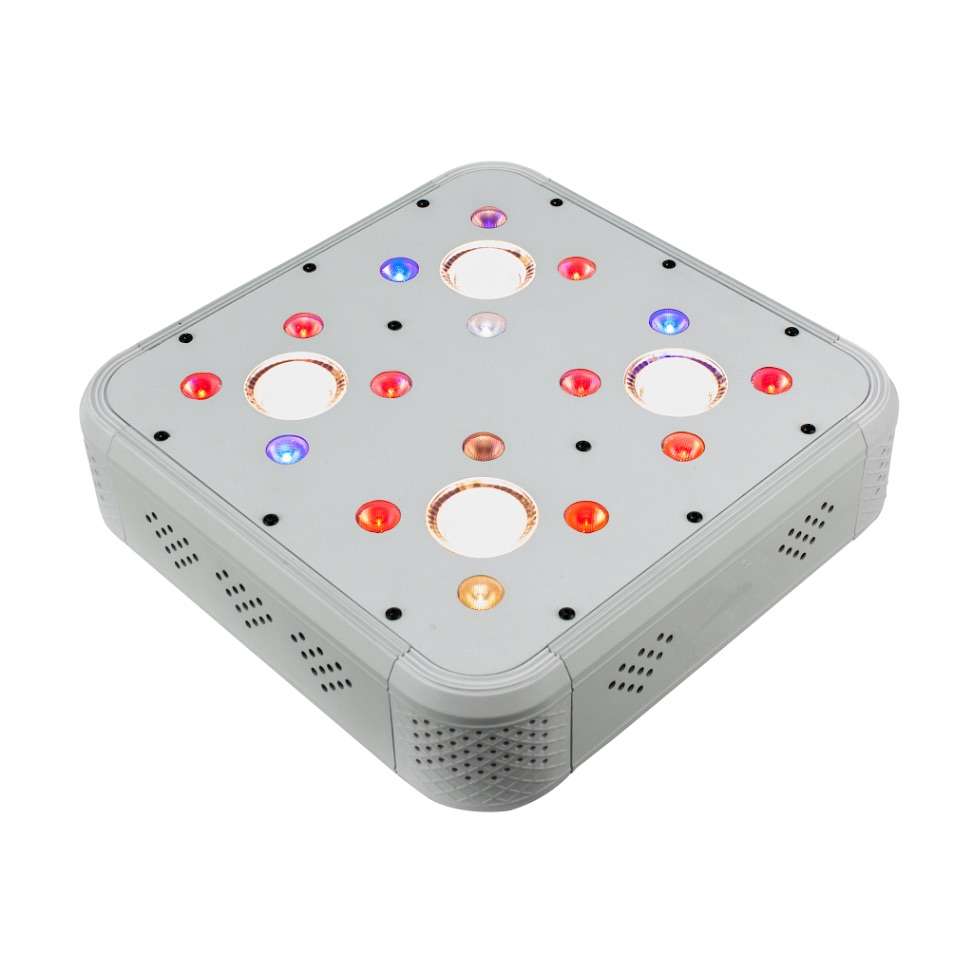

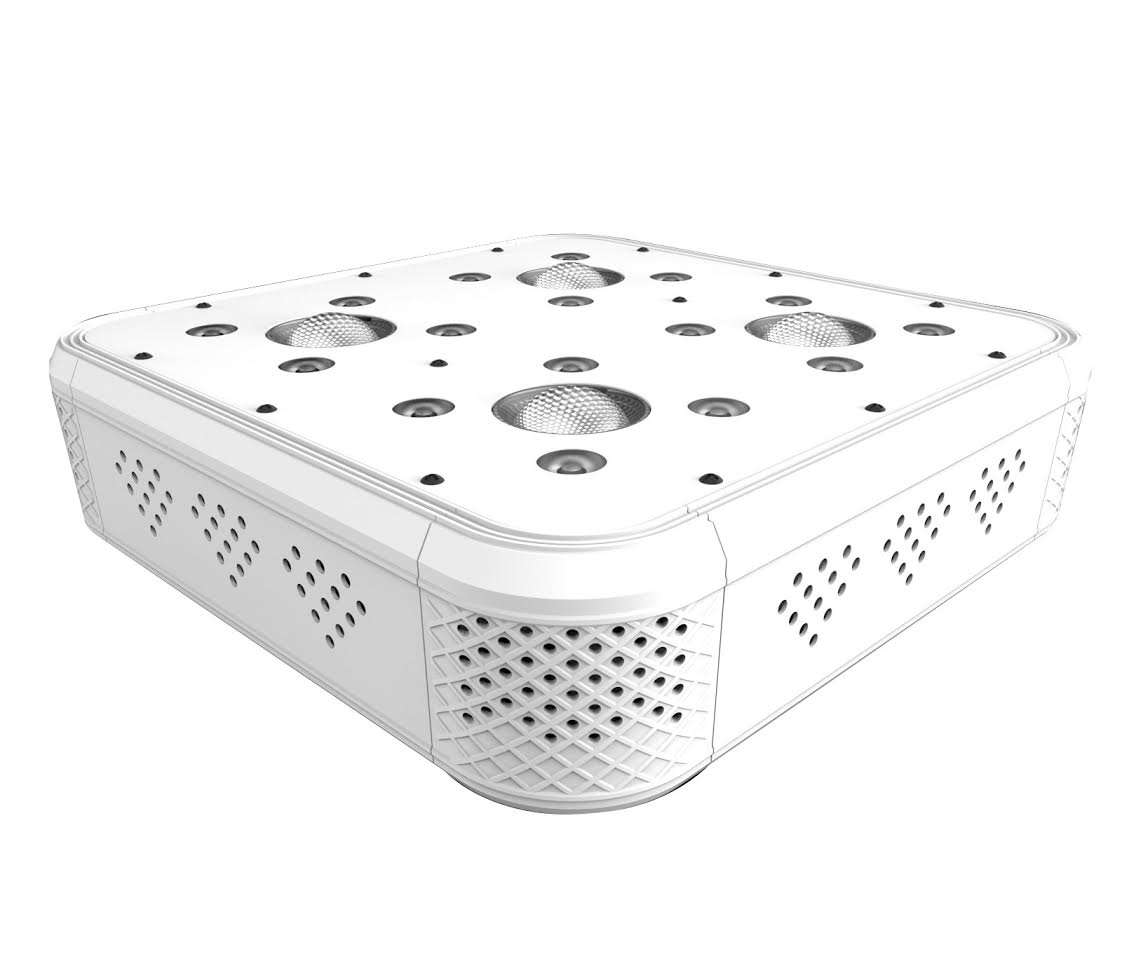

SMALL Cluster
LED Qty: 4x High Efficiency COB + 16x 3W SMD3535 LED
Fixture Optics: COBs: 90° | LEDs: 90°
True Power: 120W (Equivalent to 250W NDL/HPS)
Area coverage: Vegetative: 90 cm x 90 cm | Flowering: 60 cm x 60 cm
Size: 285x285x70mm
Weight: 2.94Kg
Voltage: 220-240V 50-60Hz
MEDIUM Cluster
LED Qty: 9x High Efficiency COB + 36x 3W SMD3535 LED
Fixture Optics: COBs: 90° | LEDs: 90°
True Power: 270W (Equivalent to 400W NDL/HPS)
Area coverage: Vegetative: 110 cm x 110 cm | Flowering: 80 cm x 80 cm
Size: 405x405x70mm
Weight: 5.88Kg
Voltage: 220-240V 50-60Hz

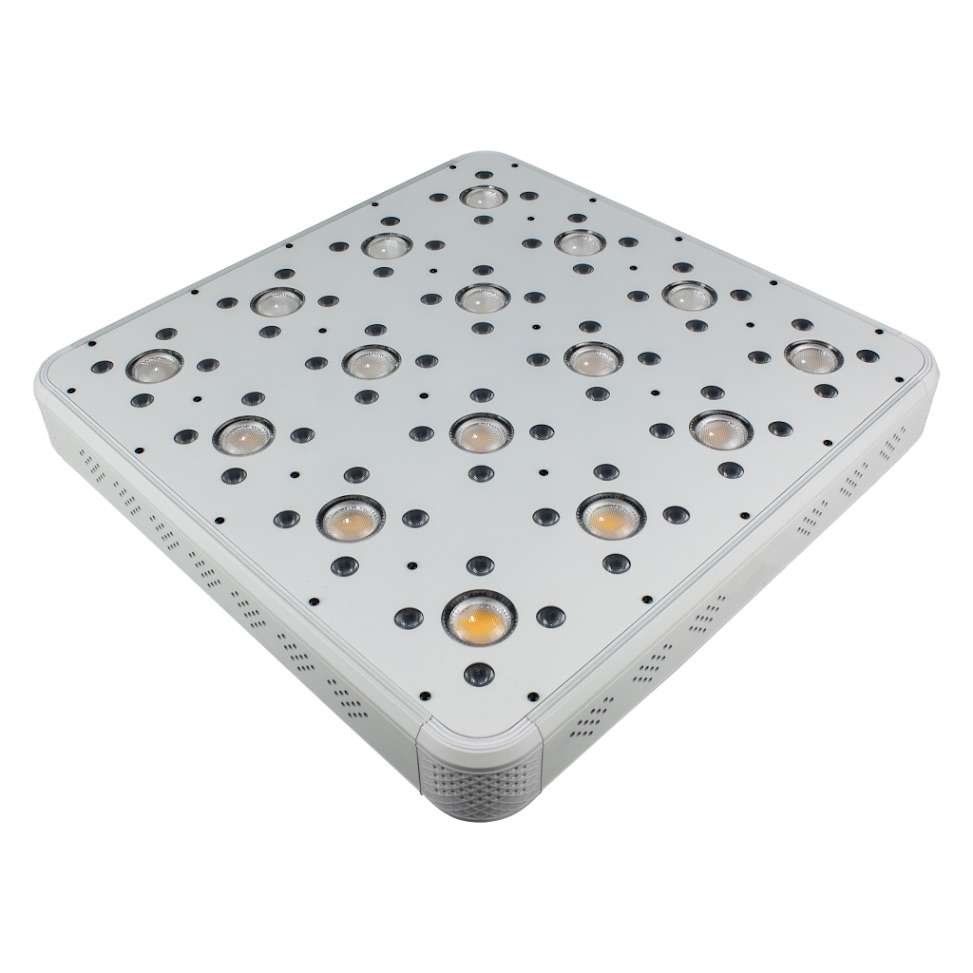

LARGE Cluster
LED Qty: 16x High Efficiency COB + 64x 3W SMD3535 LED
Fixture Optics: COBs: 90° | LEDs: 90°
True Power: 480W (Equivalent to 600W NDL/HPS)
Area coverage: Vegetative: 140 cm x 140 cm | Flowering: 100 cm x 100 cm
Size: 525x525x70mm
Weight: 9.86Kg
Voltage: 220-240V 50-60Hz
The general guideline most growers use for coverage is that you need 32 watts of actual power per 30 cm² if you're growing high-light plants. Low-light plants need somewhere between 11 to 18 watts per 30 cm².
The expected cycle of operation exceeding 50,000 hours (8.5 years @16hrs daily use).
Included in the box:
- 1pc Smart LED Module (Small, Medium or Large)
- 1pc Cable with rubber connector
- 1pc Assembly Set *
- 1pc Instruction manual
*Depending on the size of the module, the amount of steel wires and snap-hooks may vary.
