Specification:Voltage:AC90-240V
Output channel:1 channel
Power frequency:50Hz-60Hz
Output current:1A
Output power:<300W(effctive power 200W/220V,120W/110V)
Voltage dimming range:5%-100%
Material:PC fire-retardant materials

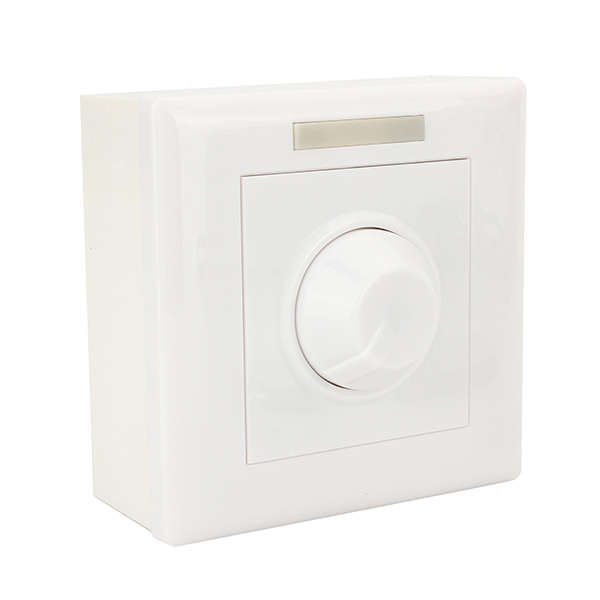

Switch size: L87×W87×H53(mm)
IR Remote size: L86×W40×H6.6(mm)
Feature:Power output can be cut off
5-100% brightness dimmable, no twinkling
Scheduled shut down (1-4 hours), Memory feature (while controller is keep power on)
Control mode:Manually and IR remote
AC along the digital phase dimming technology
Installation and use instructions:1,The input voltage of this controller should to be AC90 -240V.
2,Never connect two wires directly in case of short circuit.
3,Knob operation:Rotary knob clockwise to increase brightness, knob counterclockwise rotation will decrease the brightness.
4,Remote control operation:IR remote can be working alone, First use, please take out the lucid spacer which under remote down side,the remote control facing the infrared receiver,ensure that there are no obstructions between remote controller and receiver,when dimmer receives an effective signal from the infrared remote control,the light on
the upside flickers. Long press “+” and “-“ can be fast dimming.
Notice:The dimmer effective power is about 80%, so please make sure dimmer power overstep 20% than led load when you choice.
Package Included:1*LED Switch
1*IR Remote Control
