Led/LCD TV Backlight Tester Meter Tool Lamp Beads Detector Repair GJ3C

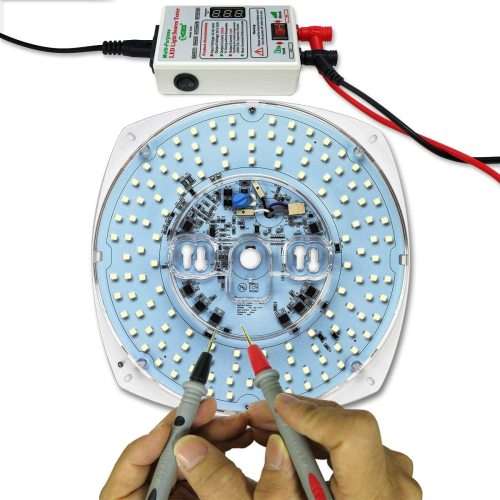

Portable LED tester for testing LED TV backlight, light strip, LED panel, COB, lamp bead, diode, etc. comes with a pair of test probe.

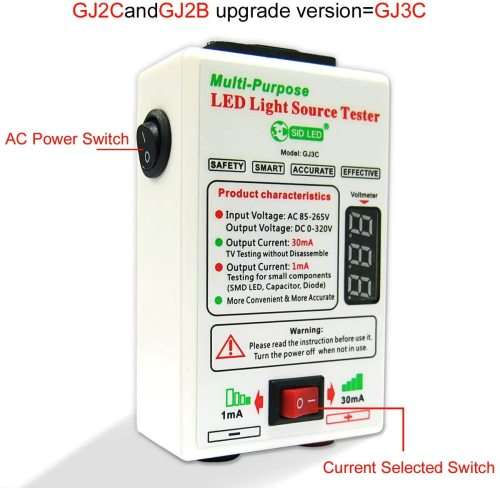

Gj3c is an Upgraded Version of Gj2c. 1mA and 30mA Switching
Applicable to any size LED TV , perfect backlight inspection and maintenance tool
Model: GJ3C

Features:

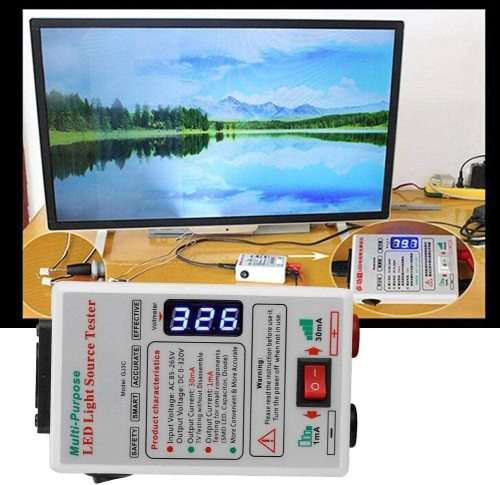

Can be used to test LED TV (any size) backlight.
Automatic polarity recognition LED, adaptive test of bead lamp, strip & bead lamp backlight and it will not burn.
High brightness, there is no need to separate the screen to judge whether a backlight strip works well.
Automatic adjustment of output voltage and current.
It can test the tolerable voltage of capacitance, voltage-diode value & voltage regulator of light beads and panel lamp.
No burnt, no electric shock.

Specifications:
Plug Type: EU
Input voltage: AC 85-265 v
Output voltage: DC 0-320 v
Output current: 30mA (0 Voltage-320 v), 1mA (0-22 Voltage v )
Item size: 95 x 60 x 30mm
Item weight: 91g
Package size: 197 x 87 x 61mm

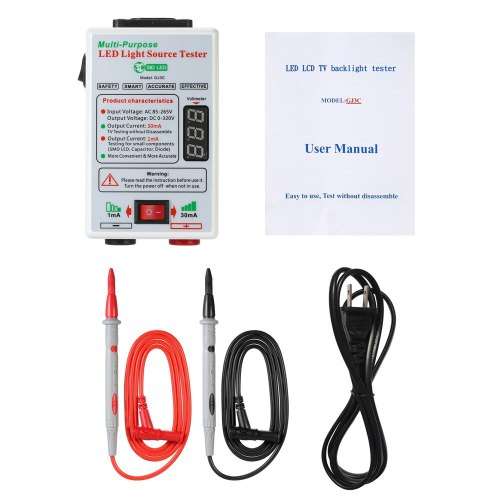

Package List:
1 x LED Tester

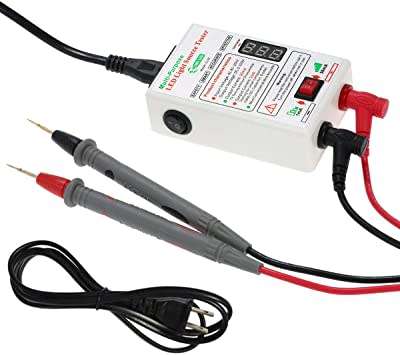

1 x Pair of Test Probe
1 x Power Line(Local Plug)
1 x User Manual
