Led Lights, Remote Control for all Kinds of Lights 4ch

Features:

1. Turning On & Off of lights via digital means of a remote control.

2. It can load up to 4 circuits (Zones) at most depending on model.

3. The normal distance is over 25 meters.

4. The remote control is mobile-shaped and the receivers are made from PC material which is fireproof.

5. The remote control has a function to delay the turning off of lights by 70sec.

Product Function

Use of the remote control and receiver.

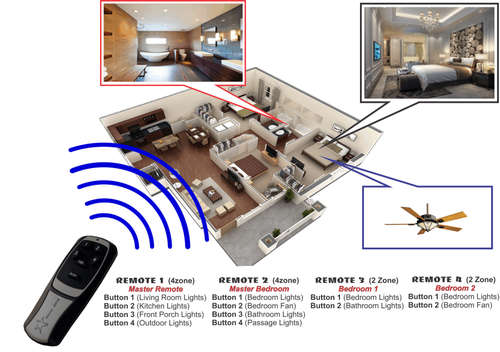

The remote control and receiver can be installed in several ways depending on your needs and requirements.

You could install your receiver to a certain cluster of lights to 1 channel on the receiver. Please do note that the receiver can only handle 1200W excluding energy saving lights and florescent which would be 500w per channel (1 Channel = 1 Circuit), then another cluster of lights to another channel and so on. (Dependent on the Model of receiver and remote you would like to install)

Other Functions

PSD function button. After 70 seconds all circuits turn off. (Standard on all models)

PS function button. All circuits will turn off for 70 minutes and then they will turn on for 3 minutes. This process will continue until it’s cancelled by pressing any button. (Dependent on model)

Push the ON/OFF button. All circuits turn on/off at the same time.

Technical parameters:

1. Working voltage: 240V/50Hzï¼Â›

2. Transmitting voltage: 12Vï¼ÂˆA23 battery ï¼Â‰

3. Transmitting distance: S≤60 meter in open space, without interference (E.g. Walls; etc.)

S≤20 meter in a high interference space

4. Maximum load power: Max load 1200W for each circuit & 500W Max if Florescent or Energy Savers.
