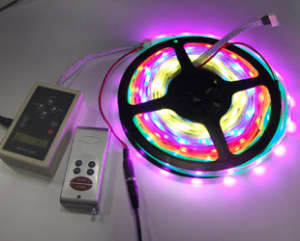

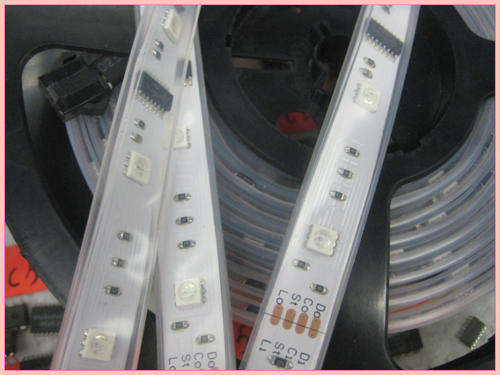

Specification for LED Strip:
Strip Voltage: DC 12V
Light Color: RGB Multicolor
133 different changing patterns and changing speeds
Number Of LEDs: 150PCS
Standard Packing: 5m/Reel
Strip Backing: White
Waterproof Rating: IP67
Specification for Controller:
Working temperature: -20- 60 Degree C
Supply voltage: DC12V
consume power:2W
Output: Tow group SPI signal
Length setup function
A lot of programs to chose
Memory function
With digital tube, left two reveal the mode, right two reveal the speed

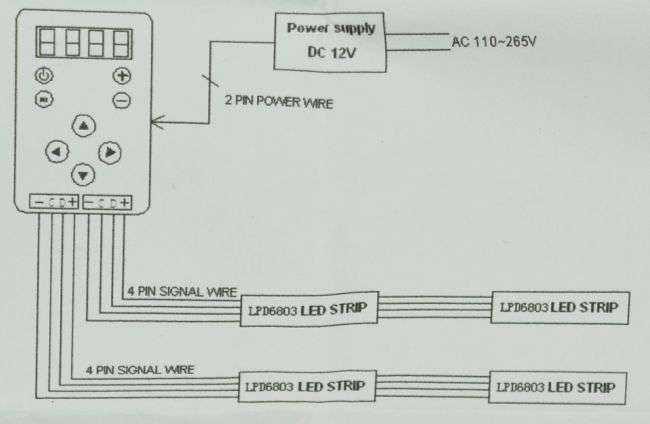

Connecting diagram:
Function of controller panel:
ON/OFF button, it can open or close led anytime.
Play/pause button, pressing this button to pause, you can see the static affection of led.
Adding button, to add the IC NUMBER, the most number is 1024.
Reducing button, to reduce the IC NUMBER, the least number is 3.

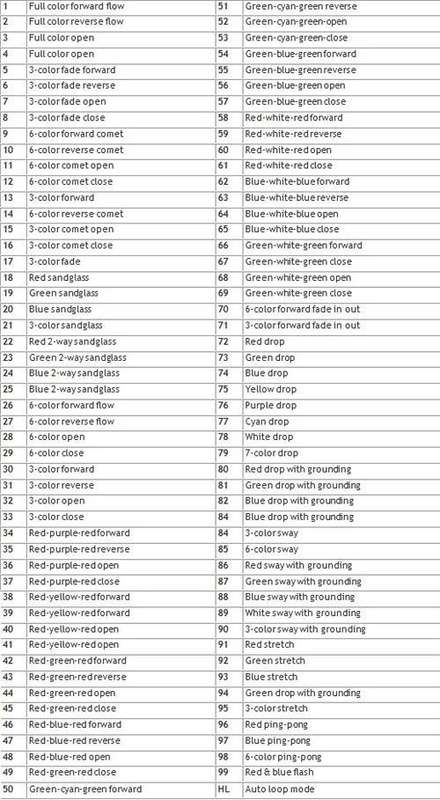

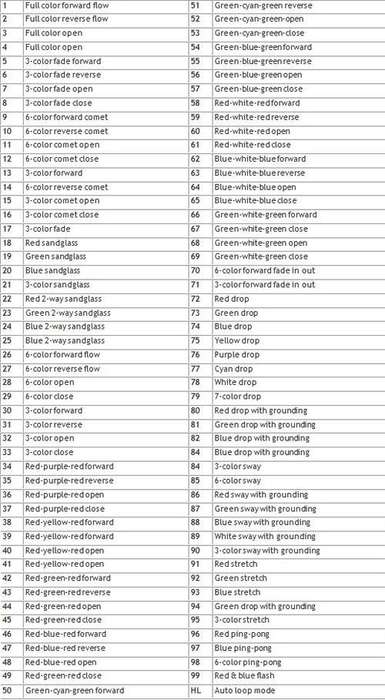

Program choosing button, up direction there are 133 programs in all.
Program choosing button, down direction.
Speed slow button, there are 100 step in all, the most number is 100.
Speed quick button, the least number is 1.
Function of remote panels:
ON/OFF: ON/OFF button, it can open or close led anytime.
MODE: Play/pause button, pressing this button to pause, you can see the static affection of led.
S+: Speed quick button, the least number is 1
S-: Speed slow button, there are 100 step in all, the most number is 100
B+: Program choosing button, up direction there are 94 programs in all.
B-: Program choosing button, down direction.
M-:Reducing button,to reduce the IC NUMBER,the least number is 3.
M+:Adding button, to add the IC NUMBER, the most number is 1024.
