Led Timer Controller 5 channel TC420 12V-24V for Aquarium **LOCAL STOCK**
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information

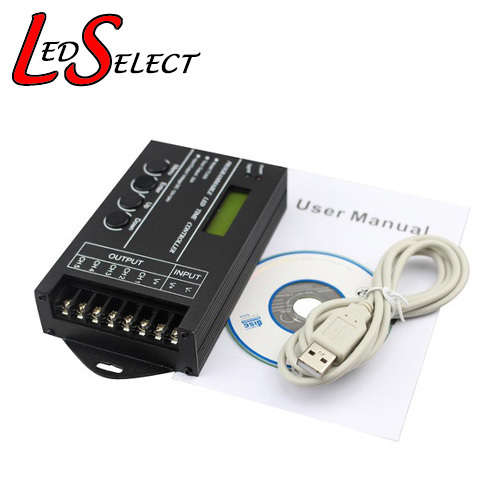

LED Time Controller:
Category: 1500312645 / 1506312645 - Controller Timer Programmable
Specifications:
In/output Voltage: 12-24V DC
Connecting Mode: Common Anode (+)
Rated Current: 4A for each Channel (Max total power: 240 Watt @ 12V or 480W @ 24V)
Working Temperature: -20 to 60 Degrees Celsius (-4 to 140 degrees Fahrenheit)
Size: 120 x 69 x 24mm
Low priced LED Time Controller with PC Software which can be used to create a 24-hour light-cycle for 5 separate PWM-dimmable channels. Excellent controller for aquarium, signage, outdoor lighting, sunrise/sunset simulation, etc.
Installation:
Connect the controller in between the 12V Power supply and the LED Strip(s)
Functions:
Because the controller has 5 channels, you can control 5 separate colors (for example, one RGB LED Strip and 2 separate colors). Using the included PC software you can program a 24-hour cycle for the 5 channels. Per time-slot of 30 minutes you can control the brightness of each channel. After you have finished creating your light-program, you can load the program into the controller using the USB connection and start using the controller.
* Please Note: Retail Box is NOT included. There may be slight surface scratches on the item due to shipping, price has been lowered.
