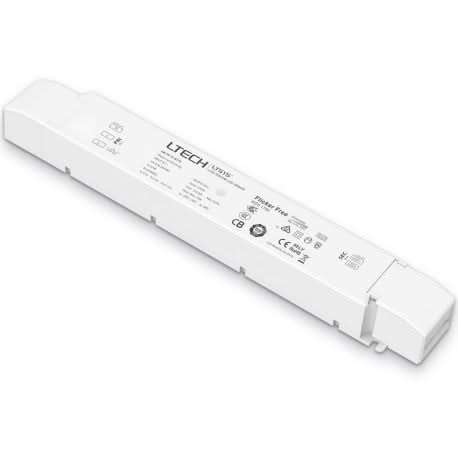

LED Triac-Dimmable Power Supply - 12Vdc 75W

The 75W Triac dimmable LED power supply is designed to run any dimmable 12V LED Lights. This power supply can be dimmed from a light switch with an LED dimmer module attached or directly as a push-to-dim. The push-to-dim dimming does not have a built-in memory, so the lights will come on at 100% brightness when powered up (after rolling blackouts).

This power supply is protected against Output Shorts and Overloads and it restarts after the fault has cleared

As a guide, the 75W Power Supply can run:

• 12 Meters of 3528 Ultra Bright LED Strip Lights
• 4 Meters of 5050 Ultra Bright LED Strip Lights

Specifications

• Input Voltage: 200-240Vac
• Output Voltage: 12Vdc Max
• Wattage: 75W @ 12V
• Output: PWM Constant Voltage
• Dimming Range: 0 - 100%
• Dimming Curve: Linear
• Dimensions: 293 x 43 x 30mm (L x W x H)
• Operating temperature: -20 to +50°C
• Operating Humidity: 20 to 95%RH, non-condensing
