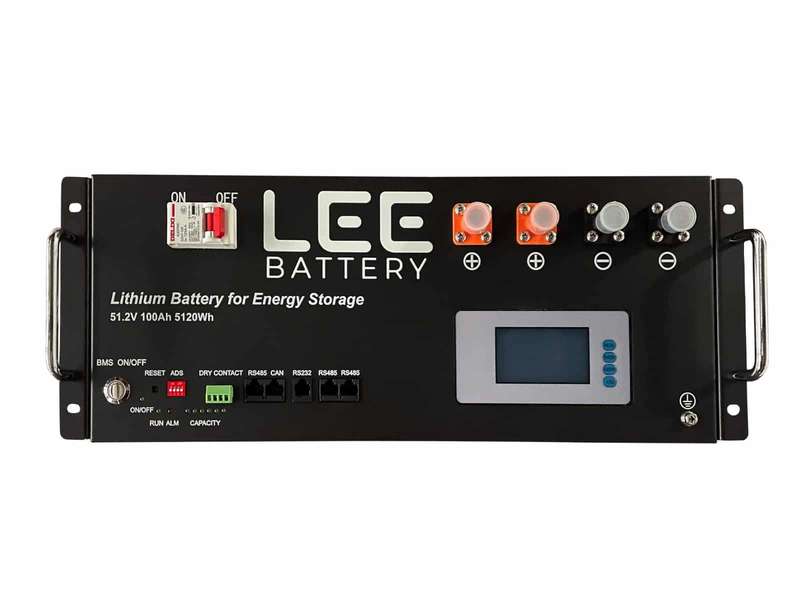

| Model | OT48100 |
| Battery Type | LiFePO4 (LFP) |
| Nominal Voltage (V) | 51.2V |
| Nominal Capacity (Wh) | 5120Wh |
| Usable Capacity (Wh) | 4096Wh |
| Design Life | 10+ Years (25C/77F) |
| Physical | |
| Dimension (mm) | 482 x 400 x 177.8 |
| Weight (kg) | 45 |
| Electrical | |
| Cycle Life | >6000, 25C |
| Discharge Voltage (V) | 45.6 ~ 57.6V |
| Charge Voltage (V) | 56 ~ 57.6V |
| Charge/Discharge Current (A) | 50A (Recommended), 100A (Max) |
| Internal Resistance | 30m |
| BMS | |
| Power Consumption | <2W (Work) < 100mW (Sleep) |
| Monitoring Parameters | System voltage, current, cell voltage, cell temperature, module temperature |
| SOC | Intelligent algorithm |
| Communication | CAN/RS-485 |
| Operation | |
| Operating Temperature | -10C ~ 50C |
| Transport or Storage Temperature Range | -20C ~ 45C |
| Humidity | 15% ~ 85% (Non-condensing) |
| Warranty | |
| Product Warranty | 5 Years |
| Performance Warranty | 10 Years |
