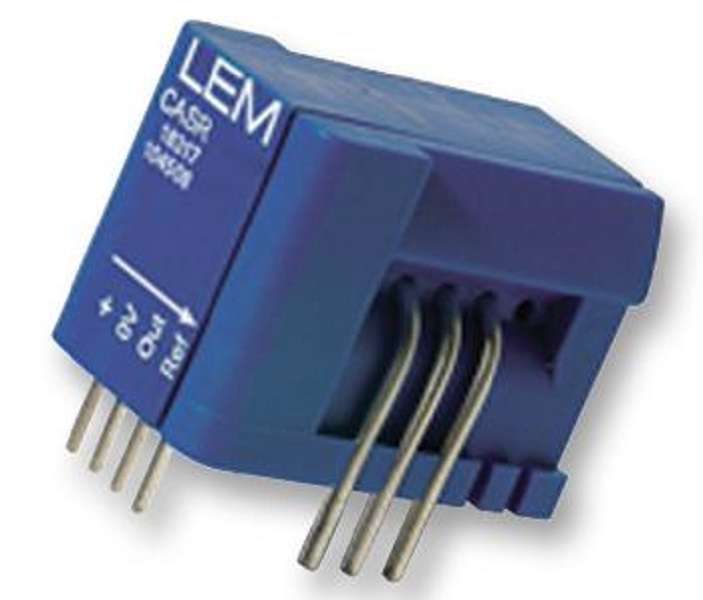

Lem (CASR 6-NP) Current Transducer, CASR Series, 6A, -20A to 20A

Current Transducer, CASR Series, 6A, -20A to 20A, 0.8 %, Voltage Output, 4.75Vdc to 5.25 VdcProduct OverviewThe CASR 6-NP is a closed loop (compensated) multi-range Current Transducer withisolated plastic case construction. The CASR series current transducer featuresas an electronic measurement of current DC, AC, pulsed with galvanic isolationbetween the primary and the secondary circuit. It is used for AC variable speedand servo motor drives, static converters for DC motor drives, battery supplies,uninterruptible power supplies (UPS), switched mode power supplies (SMPS), powersupplies for welding and solar inverters.Single supplyCompact design for PCB mountingVery low temperature coefficient of offsetVery good dv/dt immunityLTSR compatible footprintReduced heightUL94V-0 Flammability ratingApplicationsSensing & Instrumentation, Motor Drive & Control, Power Management, IndustrialProduct InformationSensor Output: VoltageSupply Voltage DC Min: 4.75VSupply Voltage DC Max: 5.25VCurrent Measuring Range DC: -Current Measuring Range AC: -Response Time: 0.3µsAccuracy %: 0.8%Product Range: CASR Series
