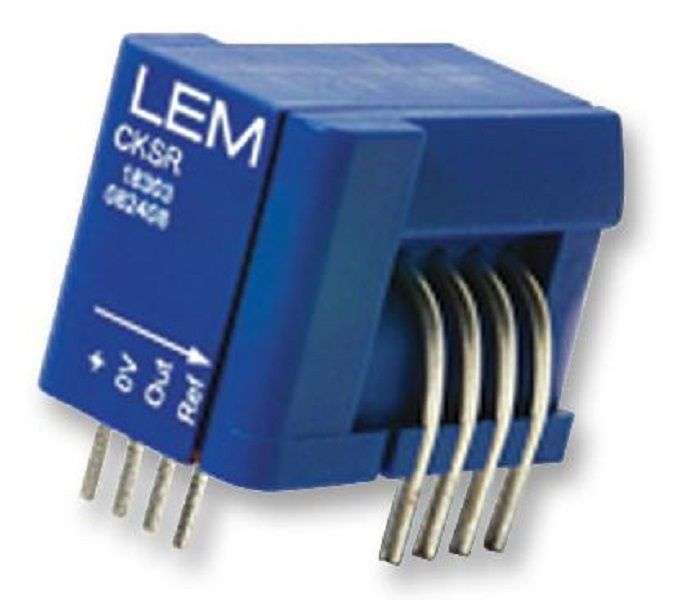

Lem (CKSR 15-NP) Current Transducer, CKSR Series, 15A, -51A to 51A

Current Transducer, CKSR Series, 15A, -51A to 51A, 0.8 %, Voltage Output, 4.75Vdc to 5.25 VdcProduct OverviewThe CKSR 15-NP is a closed loop (compensated) multi-range Current Transducerwith isolated plastic case construction. The CKSR series current transducerfeatures as an electronic measurement of current DC, AC, pulsed with galvanicisolation between the primary and the secondary circuit. It is used for ACvariable speed and servo motor drives, static converters for DC motor drives,battery supplies, uninterruptible power supplies (UPS), switched mode powersupplies (SMPS), power supplies for welding and solar inverters.Single supplyCompact design for PCB mountingVery low temperature coefficient of offsetVery good dv/dt immunityHigher creepage/clearance distancesReduced heightUL94V-0 Flammability ratingApplicationsSensing & Instrumentation, Motor Drive & Control, Power Management, IndustrialProduct InformationSensor Output: VoltageSupply Voltage DC Min: 4.75VSupply Voltage DC Max: 5.25VCurrent Measuring Range DC: -51A to 51ACurrent Measuring Range AC: -51A to 51AResponse Time: 0.3µsAccuracy %: 0.8%Product Range: CKSR Series
