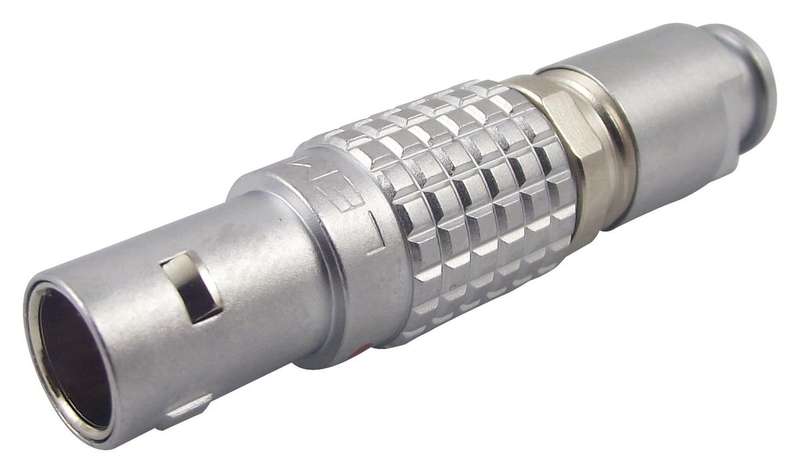

Lemo (FGG.0B.305.CLAD52Z) Circular Connector, Cable Mount Plug, 5 Contacts

Circular Connector, Cable Mount Plug, 5 Contacts, Solder Pin, Push-Pull, BrassBodyProduct OverviewThe FGG.0B.305. CLAD52Z from Lemo is a 0B series multipole circular straightplug connector with 5 pin contacts. It has keying system for connectoralignment. It also has cable collet and nut for fitting bend relief. Thiscircular connector is specifically designed for indoor applications. * Rated current of 6.5A * Chrome plated brass outer shell and collet nut * Nickel plated brass latch sleeve and mid pieces * PEEK (polyetheretherketone) insulation * UL recognised and CE marked * Cable fixing diameter from 4.3mm to 5.2mm * IP50 protection index (mated) * High temperature range from -55°C to 250°C * Maximum solid and stranded conductor size is 22AWG (0.34mm²) * Push-pull self latching connection systemApplicationsIndustrialProduct Information- Product Range: 0B Series- Circular Connector Shell Style: Cable Mount Plug- No. of Contacts: 5Contacts- Circular Contact Type: Solder Pin- Coupling Style: Push-Pull- Connector Body Plating: Chrome- Contact Material: Brass- Contact Plating: Gold
