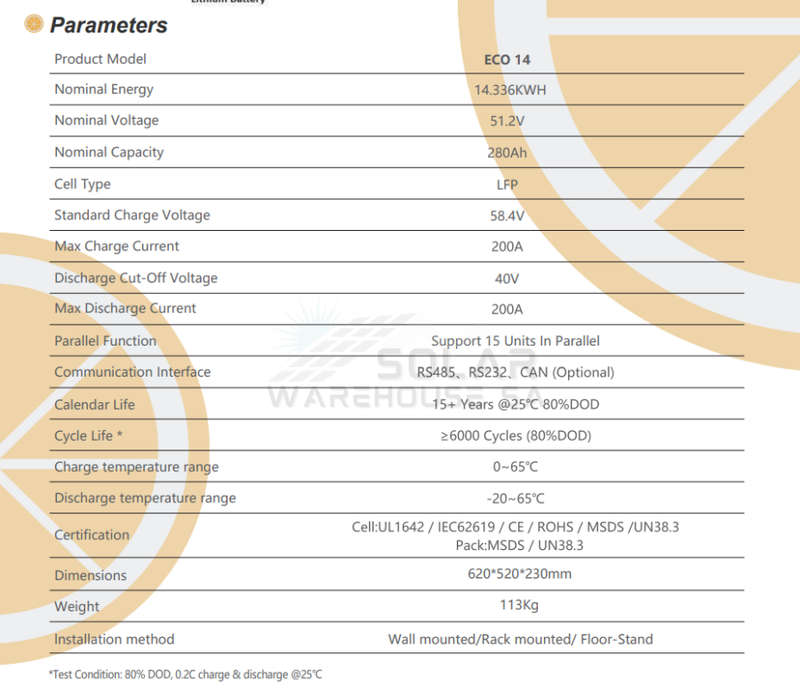

General Data
Model: ECO14
Nominal Energy: 14.3KWH
Nominal Voltage: 51.2V
Nominal Capacity: 280AH
Cell Type: LFP
Standard Charge Voltage: 58.4V
Max Charge Current: 200A
Discharge Cut-Off Voltage: 40V
Max Discharge Current: 200A
Parallel Function: 15 Units in Parallel
Communication: RS485, RS232, CAN
Calendar Life: 15+ Years @25°C 80% DOD
Cycle Life: 6000 Cycles (80% DOD)
Charge Temperature Range: 0°C to 65°C
Discharge Temperature Range: -20°C to 65°C
Cell Certification: UL1642 / IEC62619 / CE / ROHS / MSDS / UN38.3
Pack Certification: MSDS / UN38.3
Installation Method: Wall Mount / Rack Mount
Weight | 125 kg |
---|---|
Dimensions | 66.3 × 45 × 23 cm |
Warranty:
The product will operate as designed and intended and will be free from defects in
workmanship and materials as: ( Life 5 & ECO 14) 10 Years For Battery Cells, 5
Years For BMS , (ECO 2.5) 3 Years For Battery Cells and BMS, whichever comes first,
from the invoice date from LEMOEN, or third party which are authorized by
LEMOEN.
