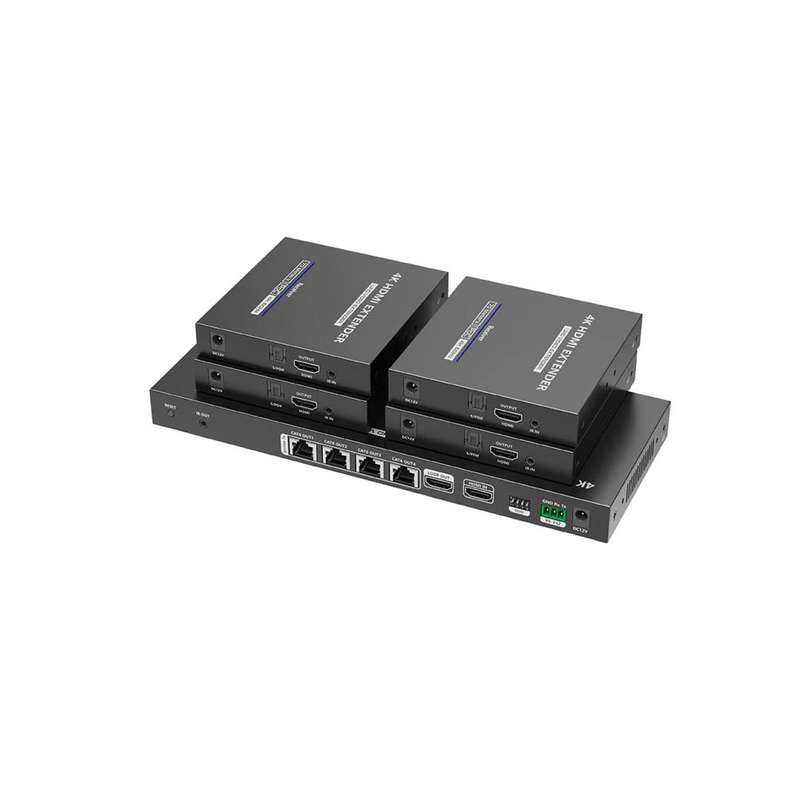

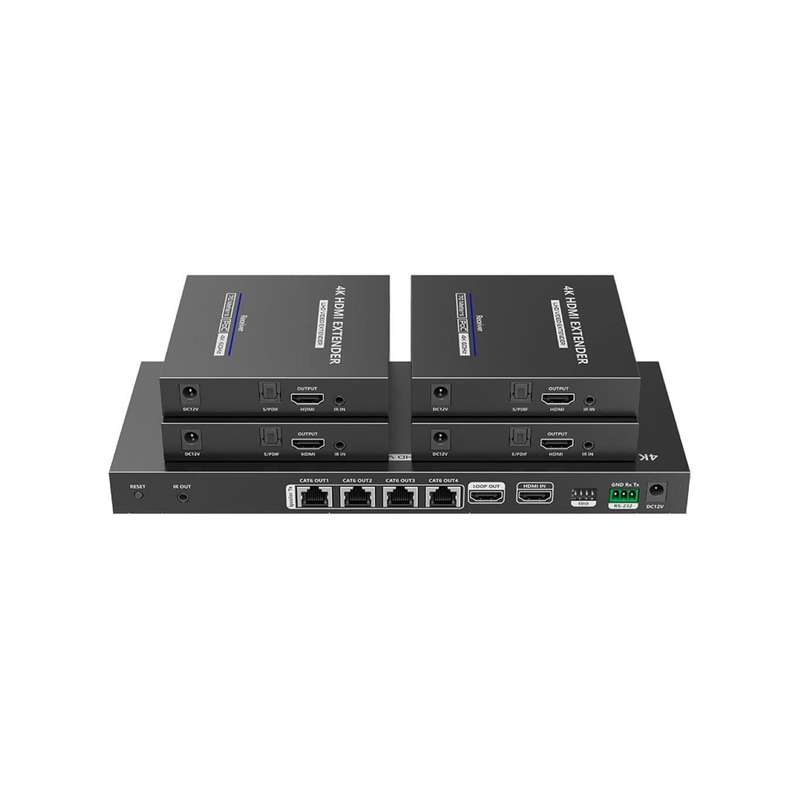

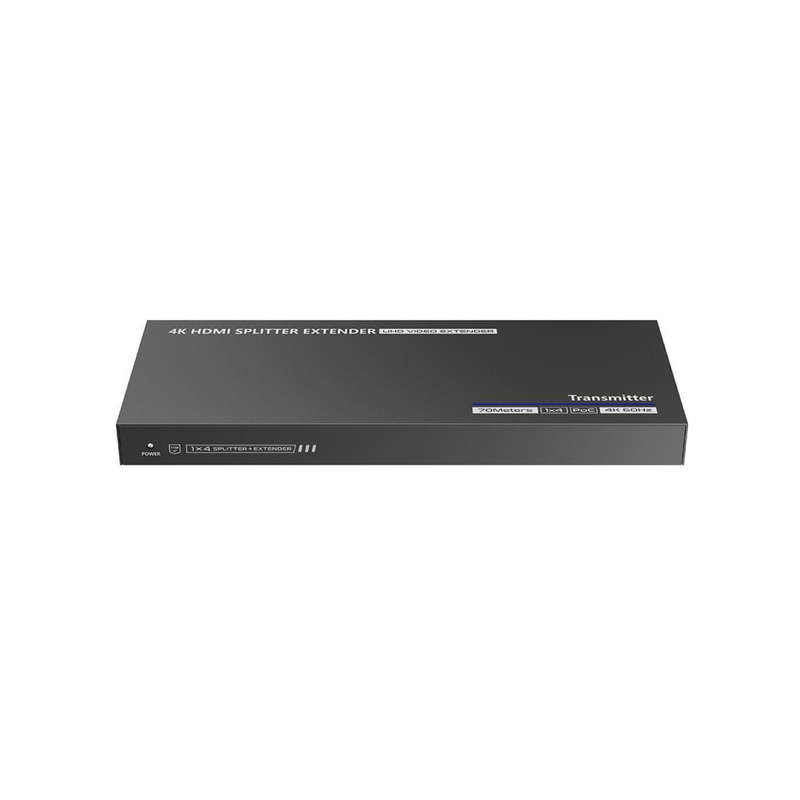

Lenkeng 1x4 HDMI Splitter

This product is a 1 input 4 outputs extender splitter kit, which integrates the functions of distribution and extension. It distributes 1 HDMI™ input signal to 4 identical signal outputs, extends these signals up to 70 meters, and supports 4K60Hz resolution. It also supports IR passback, RS-232 control and other functions. It is suitable for studios, multimedia classrooms, rail transit, etc.

Specifications:

Transmission protocol: ipcolor

Distribution mode: 1 IN 4 OUT

Transmission distance: CAT6/6A/770m

HDMI signal: HDMI 2.0, HDCP 2.2

HDMI Resolution: 480i-60Hz, 480p-60Hz, 576i-50Hz, 576p-50Hz, 720p-50/60Hz, 1080i-50/60Hz, 1080p-50/60Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600, 3840x2160-24/25/30/50/60Hz, 4096x2160-24/25Hz

Audio formats: LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1

IR: Support IR passback function (20KHz~60KHz)

RS-232: 3 pin: TxD-RxD-GND, follows RS-232 levels

Working temperature: -20~60âƒ

Storage temperature: -30~70âƒ

Humidity (no condensation): 0~90% RH

Power supply: TX: DC12V/3A

Power consumption: TX<13W, RX＜4W

Material: Iron

Color: Black

Weight: TX: 660g, RX: 243g

Dimension: TX: 265.0(L) x 104.0(W) x 23.0(H)mm, RX: 105.5(L) x 102.5(W) x 20.0(H)mm

Protection:

• ESD protection
• 1a Contact discharge level 2
• 1b Air discharge level 3
• Implementation of the standard: IEC61000-4-2
• Lightning protection
• Surge protection
