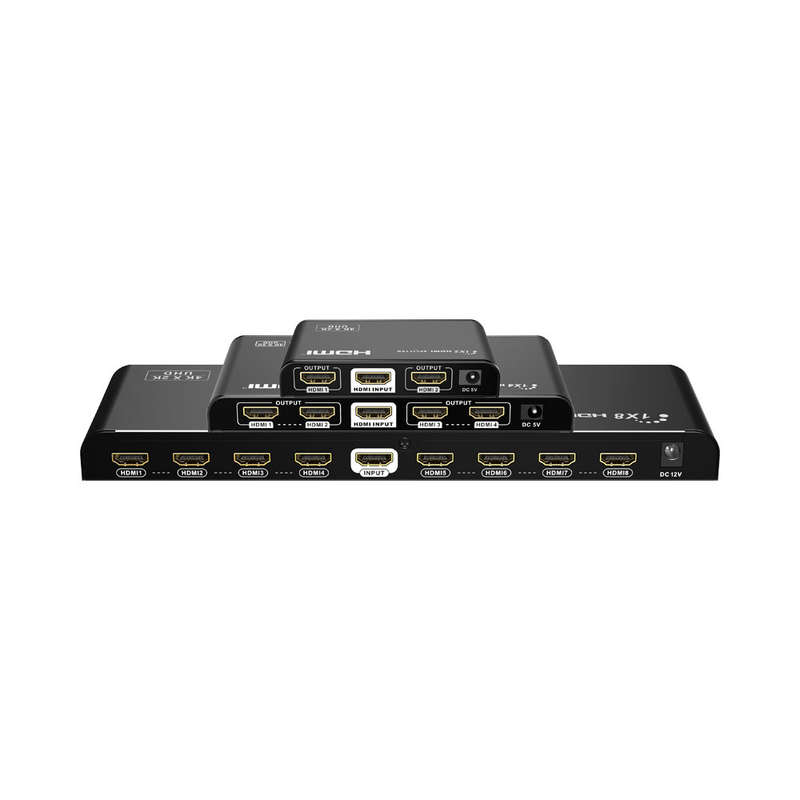

Lenkeng 4K @60Hz HDMI Splitters with Auto-Scaling | 1×2 | 1×4 | 1×8
Models: LKV312HDR-V3.0, LKV314HDR-V3.0 and LKV318HDR-V3.0
1×2/4/8 HDMI splitter distributes 1 HDMI source to 2/4/8 HDMI displays simultaneously
FEATURES:
SPECIFICATIONS:
| LKV312HDR-V3.0 | LKV314HDR-V3.0 | LKV318HDR-V3.0 | |
| Transmission rate | 18Gbps | ||
| Input | 1× HDMI (Type-A, 19-Pin, Female) | ||
| Output | 2× HDMI (Type-A, 19-Pin, Female) | 4× HDMI (Type-A, 19-Pin, Female) | 8× HDMI (Type-A, 19-Pin, Female) |
| Input cable length | 5m (AWG26 HDMI2.0 cable support) | ||
| Output cable length | 5m (AWG26 HDMI2.0 cable support) | ||
| Video support | 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz, 4K @24/25/30/60Hz | ||
| Audio format | Supports standard audio and DSD (Direct Stream Digital) and HD (HBR) audio | ||
| ESD protection | ±8kV (air-gap discharge), ±4kV (contact discharge) | ||
| TMDS signal | 0.7 ~ 1.5Vp-p (TMDS) | ||
| DDC signal | 5Vp-p (TTL) | ||
| HDR | Yes | ||
| HDCP | HDCP2.2 | ||
| Housing | Metal enclosure | ||
| Dimensions (L × W × H) | 96 × 59 × 16.8mm | 158 × 80 × 17mm | 262 × 81.6 × 23.5mm |
| Net weight | 100g | 200g | 453g |
| Power supply | DC5V 1A | DC5V 1A | DC12V 1A |
| Power consumption | <2.5W | <3W | <8W |
| Operation temperaure | 0~60°C | ||
| Storage temperature | -20~70°C | ||
| Relative humidity | 20-90% (no condensation) | ||
