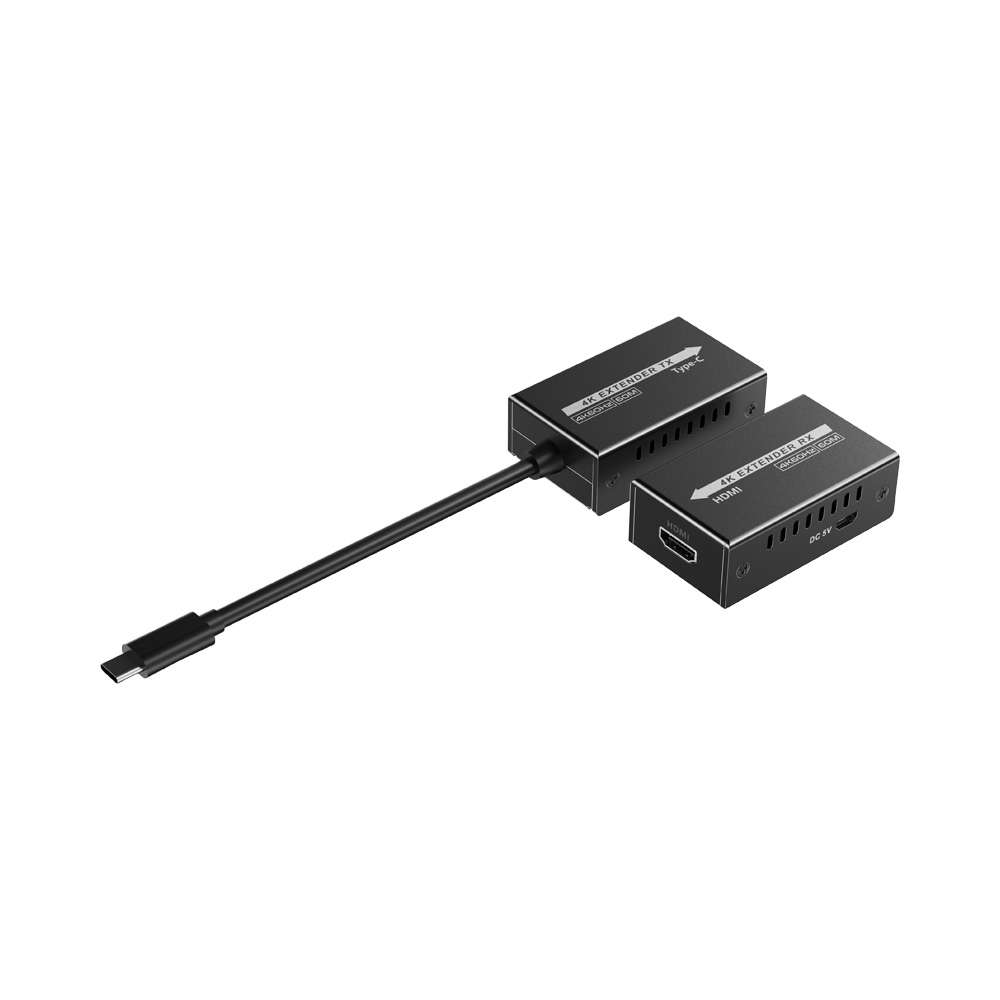

LENKENG LKV600TH-L 60m 4K @60Hz Type-C to HDMI Extender
Go big. Go bold. Go 4K (and far).
Unleash cinematicgrade visuals up to 60m away - plug your laptop, tablet or phone into one end, and connect a full 4K @60Hz (or even 4K @120Hz) HDMI screen on the other. With zerolatency transmission, HDR10 support and seamless EDID passthrough, this extender delivers rocksolid performance whether you're presenting in a boardroom, streaming on a projector or building a sleek hometheatre setup. Compact, plugandplay and compatible with CAT6/6A/7 cabling, it's the power move for anyone serious about crystalclear, highfidelity AV - no compromises.
FEATURES
Zero Latency Transmission
Supports up to 4K @120Hz Resolution
Compatible with CAT6/6A/7 Network Cable
Transmission Distance up to 60m for 4K @60Hz and 25m for 4K @100/120Hz
Supports HDR10
EDID Passthrough and Self-Adaptive Display on Resolutions
Type-C Input and HDMI Output
The Transmitter Can Take Power from the Source Signal Device through the Type-C Port
SPECIFICATIONS
Voltage: TX Powered by the Signal Source, RX DC 5V 500mA
Power Consumption: TX <3W, RX <3W
HDMI Version: HDMI 2.0
HDCP Version: HDCP 2.2, HDCP 1.4
Max. Transmission Rate: 18Gbps
Supported Resolutions: 1280×720, 1280×960, 1366×768, 1440×900, 1680×1050, 1920×1080, 1920×1200, 720p @50/60Hz, 1080i @50/60Hz, 1080p @24/25/30/50/60/120Hz, 2560×1440 @50/60/120/144Hz, 3840×2160 @24/25/30/50/60/100/120Hz, 4096×2160 @24/25/30/50/60Hz
TMDS Signal: 0.7~1.2Vp-p (TMDS)
DDC Signal: 5Vp-p (TTL)
CAT6/6A/7 Transmission Distances: 4K @60Hz up to 60m, 2560×1440 @120/144Hz up to 30m, 4K @100/120Hz up to 25m
Supported Audio Formats: PCM, DTS, Dolby
HDR10: Supported
HDMI 3D: Supported
EDID Passthrough: Supported with Auto Downscaling
Working Temperature: -20~55°C
Storage Temperature: -30~60°C
Humidity Tolerance: 0~90% RH (No Condensation)
Material: ABS
Colour: Black
Dimensions (L × W × H): 67 × 38 × 21mm
Weight: TX 85g, RX 72g
ESD Protection: 1a Contact Discharge Level 2 (±4KV), 1b Air Discharge Level 3 (±8KV), Standard IEC61000-4-2
