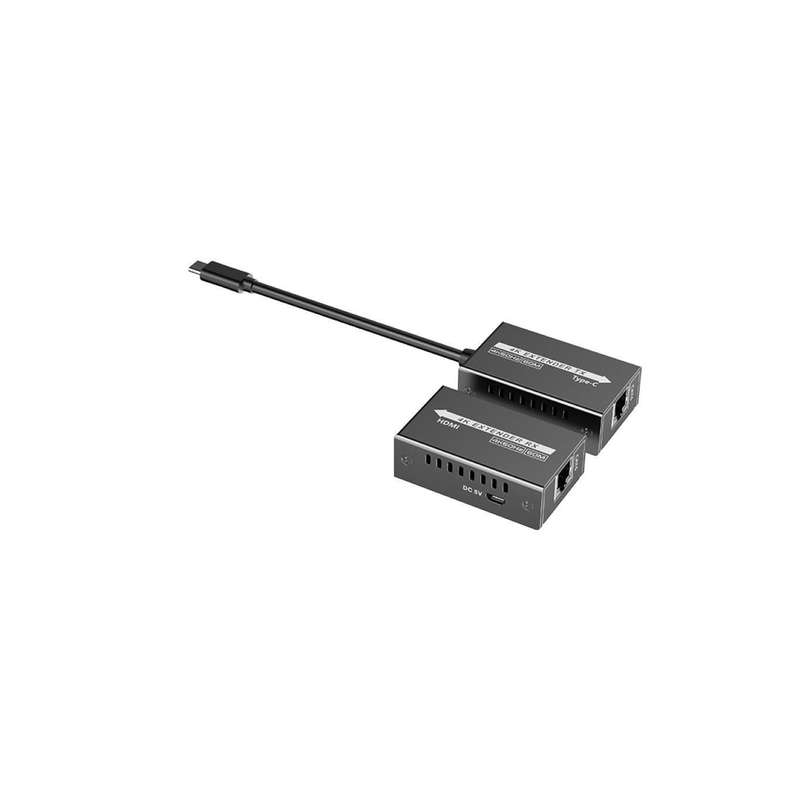

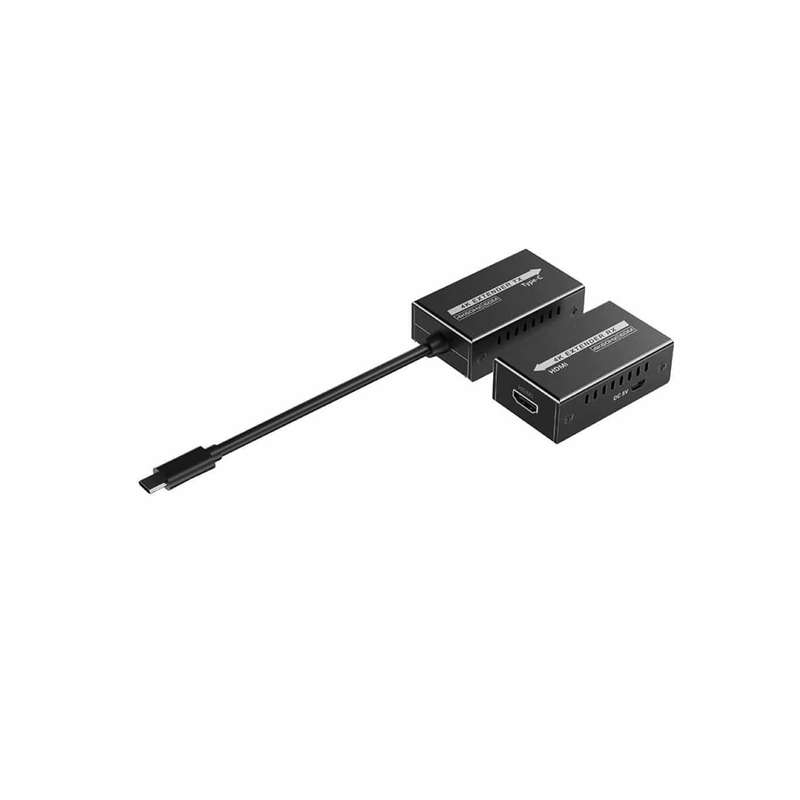

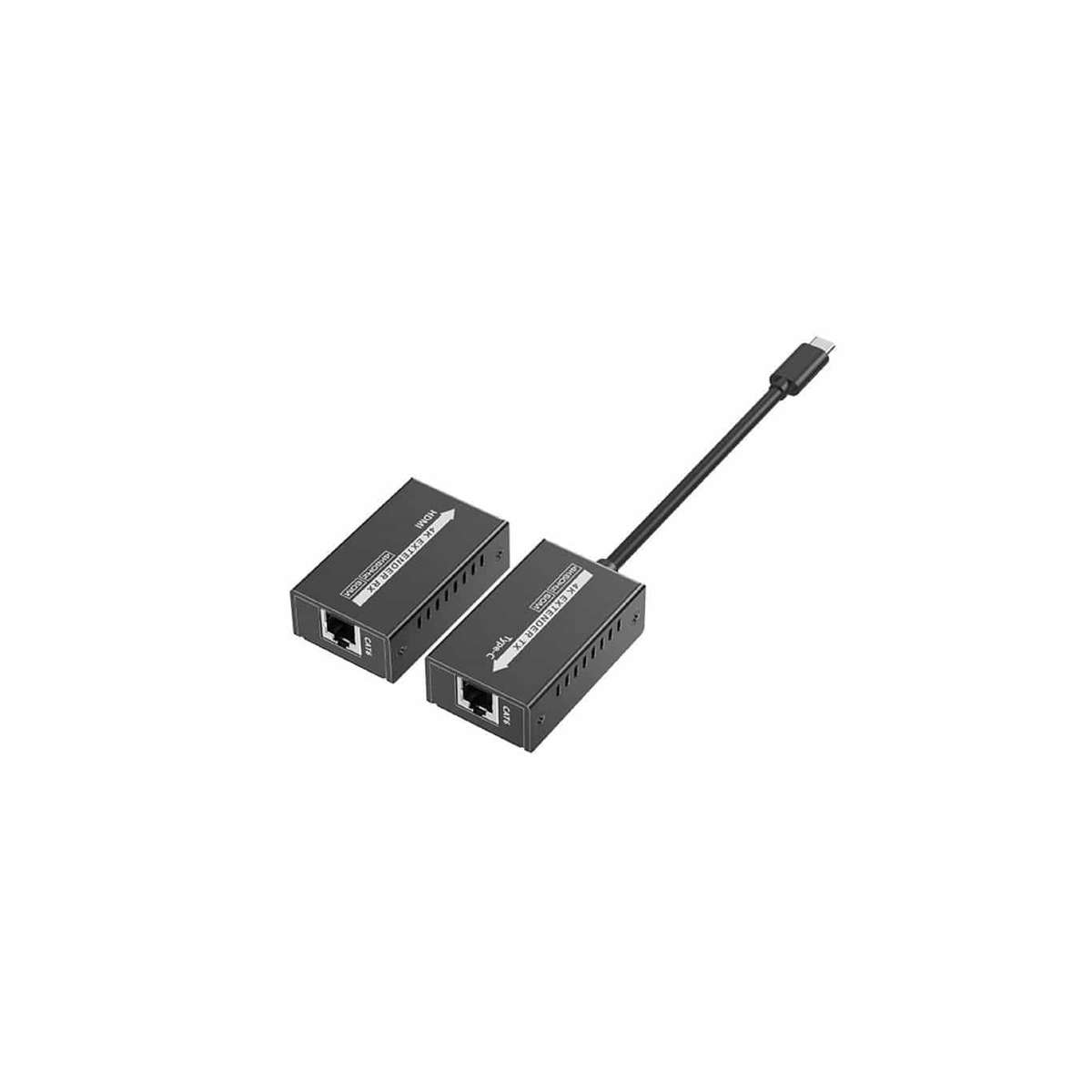

Lenkeng LKV600TH-L 4K Type-C to HDMI Extender

Featuring a Type-C transmitter and an HDMI™ receiver, this product achieves zero latency transmission via CAT6/6A/7 network cable of UHD audio and video signals. It supports 4K-60Hz Type-C video signal transmission up to 60 meters and 25 meters for 4K-120Hz. A variety of applications can be achieved with this kit, such as education, training, conferences, etc.

Specifications:

Voltage: TX: Power by the signal source, RX: DC 5V500mA

Power consumption: TX < 3W, RX < 3W

HDMI version: HDMI 2.0

HDCP version: HDCP 2.2, HDCP 1.4

Max transmission rate: 18Gbps

Resolution: 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 1920x1200, 720p-50/60Hz, 1080i-50/60Hz, 1080p-24/25/30/50/60/ 120Hz, 2560x1440-50/60/120/144Hz, 3840x2160-24/25/30/50/60/100/120Hz, 4096x2160-24/25/30/50/60Hz

TMDS signal: 0.7~1.2Vp-p (TMDS)

DDC signal: 5Vp-p (TTL)

CAT6/6A/7 Transmission distance: 4K-60Hz60m, 2560x1440-120/144Hz 30m, 4K-100/120Hz25m

Audio formats: PCM, DTS, Dolby

HDR10: Supported

HDMI 3D: Supported

EDID passthrough: Supported, auto downscaling

Working temperature: -20~55âƒ

Storage temperature: -30~60âƒ

Humidity: 0~90%RH (no condensation)

Material: ABS

Color: Black

Dimension: 67 (L) x 38 (W) x 21 (H) mm

Weight: TX: 85g ，RX: 72g

ESD protection:

• 1a Contact discharge level 2 (±4KV)
• 1b Air discharge level 3 (±8KV)
• Implementation of the standard: IEC61000-4-2
