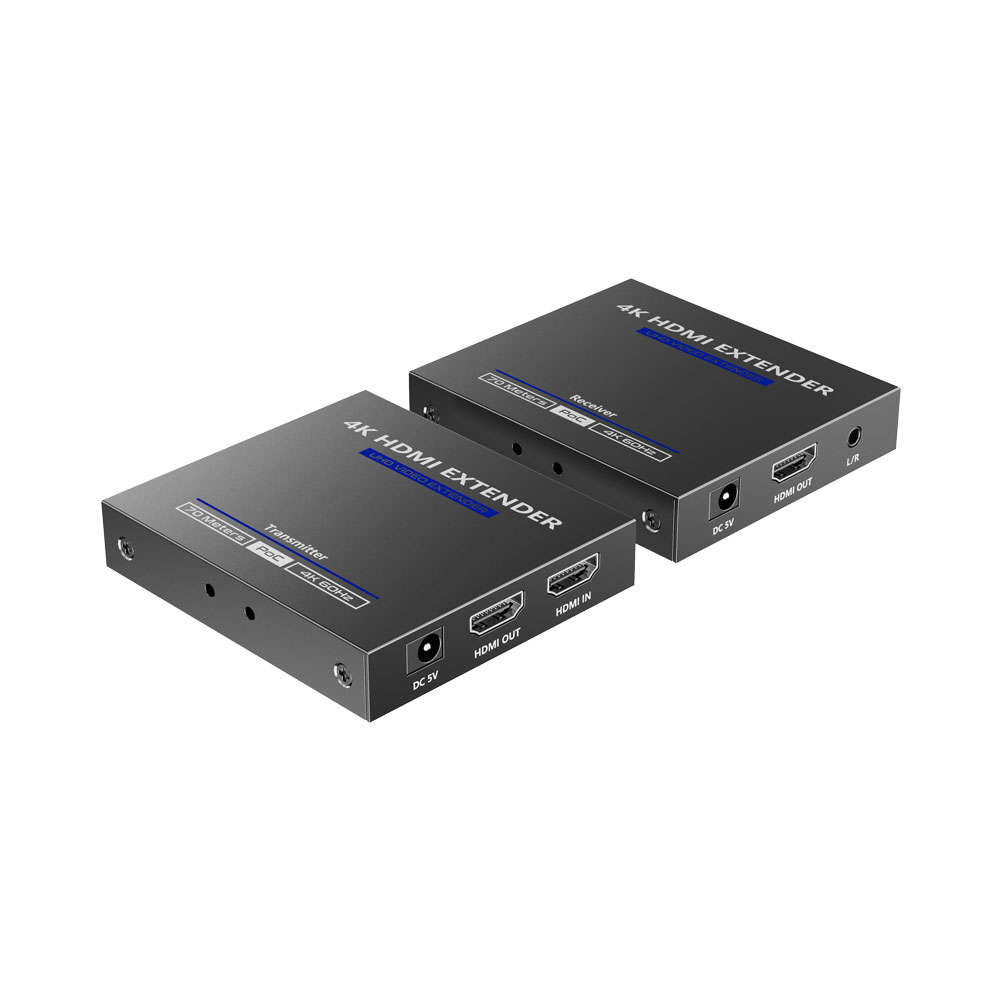

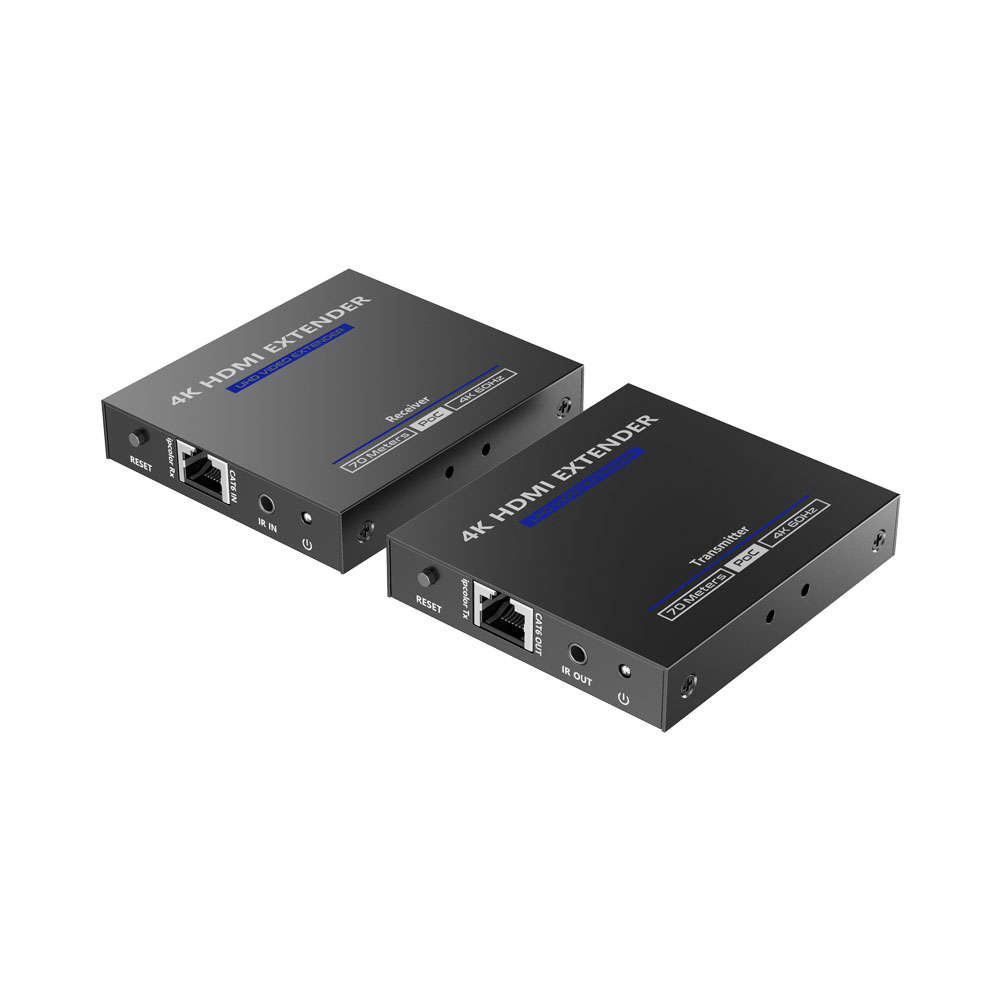

LENKENG LKV565P Ultra-Slim 70m 4K HDMI HDR Point-to-Point PoC Extender Over CAT6/6A/7 Cable with ipcolor IMAGE
Extend Smarter, Stream Stronger.
Push crystal-clear 4K @60 Hz HDR video up to 70m over a single CAT6/6A/7 cable - with zero latency and visually lossless quality thanks to advanced ipcolor transmission. This ultra-slim, point-to-point kit supports HDMI loop-out, IR passback and 3.5mm audio, making setup clean and intuitive. Powered over cable (PoC) for a neater install, it's perfect for home theatre setups, security monitoring, corporate training or broadcast environments.
Reliable, sleek and plug-and-play - long-range 4K just got easier.
FEATURES
One to One
Zero Latency
Visually Lossless
Distance up to 70m - 4K @60Hz with PoC
HDMI Loop-Out
IR Passback Function
3.5mm L/R Audio
SPECIFICATIONS
Video
Input Interface: 1× HDMI Type-A Female (Transmitter) / 1× RJ45 Female (Receiver)
Output Interface: 1× HDMI Type-A Female and 1× RJ45 Female (Transmitter) / 1× HDMI Type-A Female (Receiver)
HDMI Length: <5m
Maximum Transfer Rate: 18Gbps
Maximum Transmission Bandwidth: 600MHz
EDID Passthrough: Yes
Compatibility: HDMI 2.0 (Deep Colour, 4K, HDR, YUV4:4:4), HDCP 2.2
Resolutions: 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz, 3840×2160 @24/25/30/50/60Hz, 4096×2160 @24/25Hz, 1280×960, 1280×800, 280×768, 1680×1050, 1360×768, 1366×768, 1600×900, 1024×768, 800×600
Transmission Distance: CAT6/6A/7 70m
Audio
Input Interface: 1× HDMI Type-A Female (Transmitter) / N/A (Receiver)
Output Interface: 1× HDMI Type-A Female (Transmitter) / 1× HDMI Type-A Female and 1× 3.5mm L/R Female (Receiver)
Audio Formats: LPCM / DTS-HD / DTS-Audio / Dolby Digital 5.1CH / Dolby Atmos
Command Signal
IR Interface: 1× 3.5mm IR OUT Female (Transmitter) / 1× 3.5mm IR IN Female (Receiver)
Receiving Range: 5m
Infrared Frequency: 20~60kHz
Power
Power Supply: DC 5V 2A
Power Consumption: <4W
Operating Environment
Working Temperature: 20~60°C
Storage Temperature: 30~70°C
Humidity: 0~90% RH (No Condensation)
Physical Properties
Housing: Metal
Weight: 140g
Colour: Black
Dimensions (L × W × H): 85 × 75.5 × 16.5mm
Protection
ESD Protection: Contact Discharge Level 2 (±4kV), Air Discharge Level 3 (±8kV), IEC6100042 Standard
Lightning and Surge Protection
Certifications
FCC / CE / RoHS 2.0
