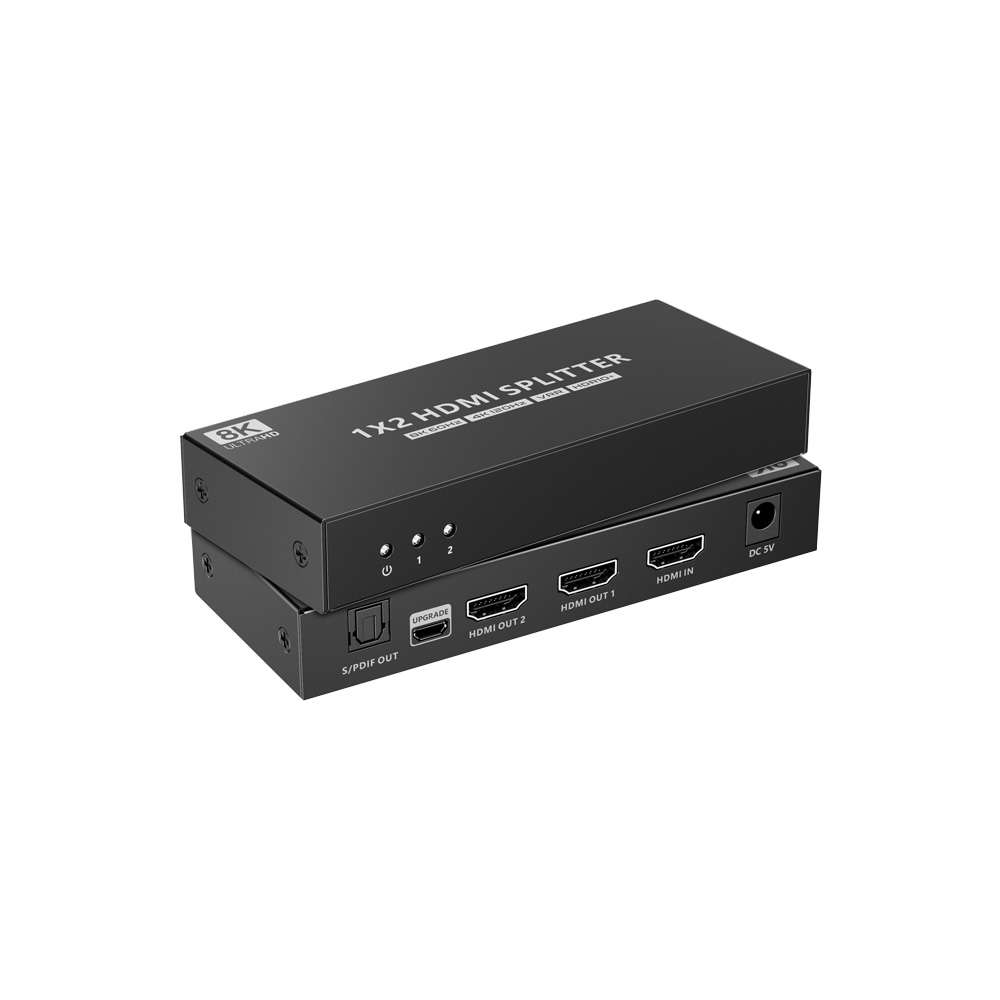

LENKENG LKV862 1×2 8K HDMI 2.1 VRR Splitter with Dolby Vision

Elevate Your AV Game - 8K, 4K, VRR and Dolby Vision in One Sleek Box.

This splitter delivers stunning 8K @60Hz or 4K @120Hz, with full support for VRR (FreeSync and GSync) and Dolby Vision / HDR10+ for crystalclear motion, deep contrast and vibrant colours. Duplicate that premium signal instantly - send one source to two displays with zero compromise on quality. Ready for gaming, home theatre or highend streaming setups, it's the plugandplay hero every modern AV system needs.

FEATURES

8K @60Hz and 4K @120Hz
Free Sync and G-Sync VRR (Variable Refresh Rate)
HDR10+
S/PDIF Out
IR Passback Function
EDID Management

SPECIFICATIONS

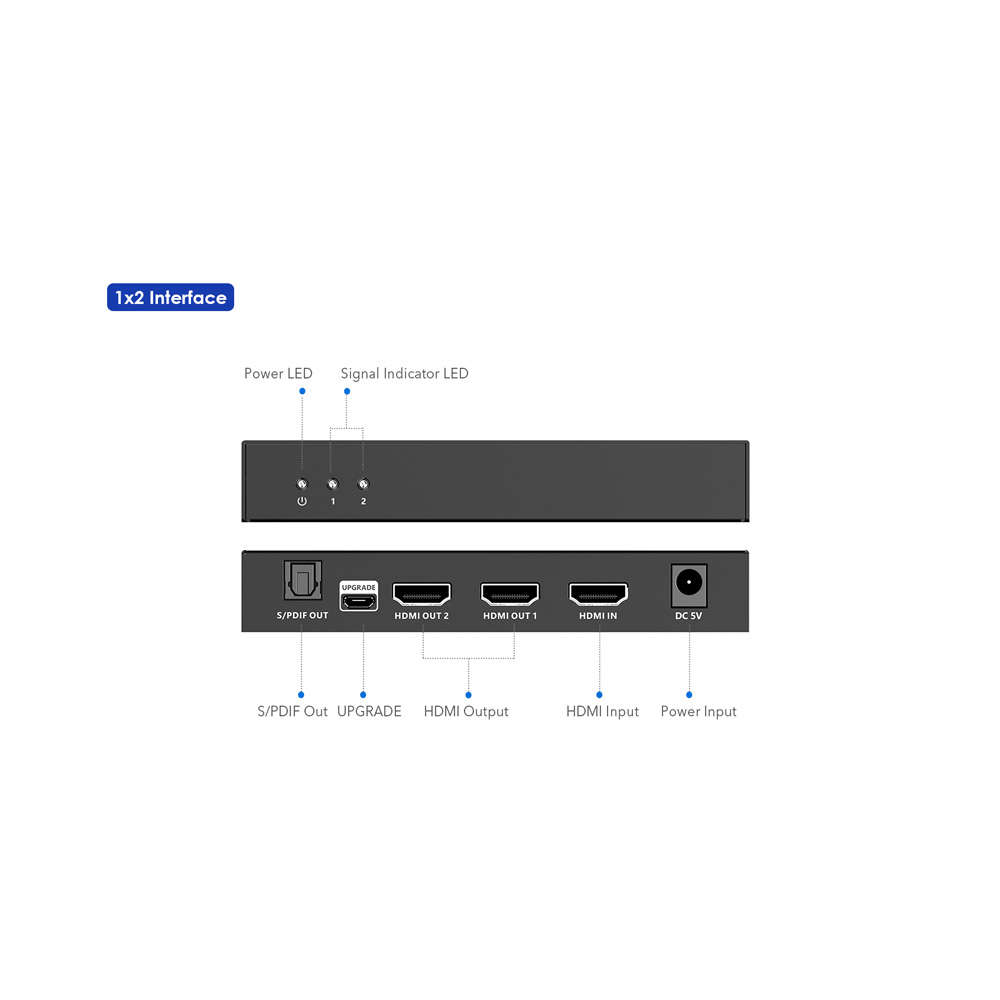

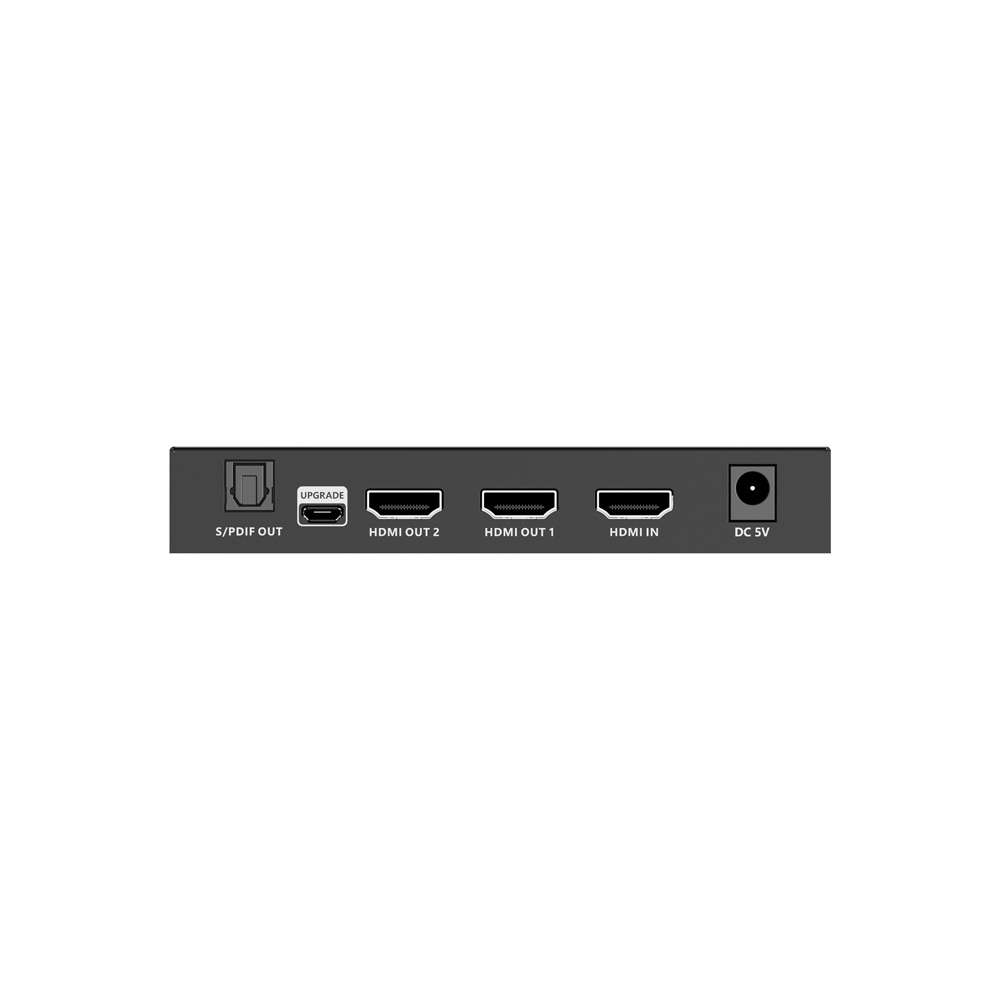

HDMI Input: 1× HDMI
HDMI Output: 2× HDMI
Compatibility: HDMI 2.1, HDMI 2.0, HDMI 1.4; HDCP 2.3, HDCP 2.2, HDCP 1.4
Maximum Transmission Rate: 48Gbps
Supported Resolutions: 7680×4320 @24/25/30/50/60Hz, 3840×2160 @24/25/30/50/60/120Hz, 1080p @24/25/30/50/60/120Hz, 720p @50/60/100/120Hz
Video Signal Features: EDID Passthrough, Auto Downscaling, HDR10 / HDR10+ / Dolby Vision, HDMI 3D, HDMI CEC, VRR (FreeSync / GSync)
Audio Output: S/PDIF Output and HDMI Output - Supports Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD, LPCM 7.1CH, Dolby Digital 7.1CH, etc.
Power Supply: DC 5V 1A
Power Consumption: <4W
Operating Temperature: 20~60°C
Storage Temperature: 30~70°C
Humidity Range: 0~90% RH (NonCondensing)
Housing Material: Metal
Colour: Black
Dimensions (L × W × H): 135 × 54 × 16.5mm
Weight: 200g
Protection: ESD Protection (Contact Discharge ±4kV, Air Discharge ±8kV, Implementation of the Standard IEC 610004-2), Lightning Protection, Surge Protection
