Lenkeng HDMI KVM Extender 120m

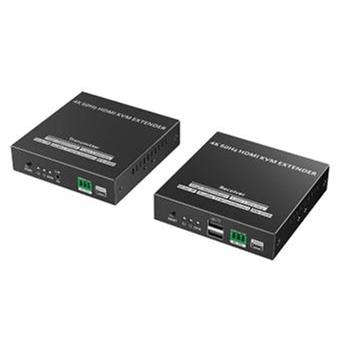

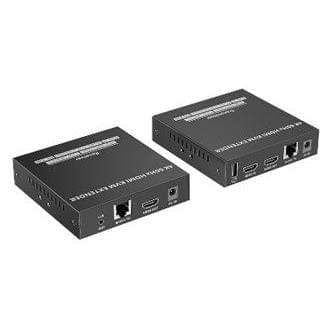

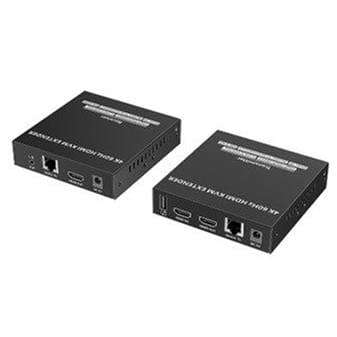

This Lenkeng product is a 4K-60Hz HDMI KVM extender kit consisting of a transmitter and a receiver, using ipcolor STREAM technology for high definition, low-latency transmission. The 4K-60Hz HDMI signal can be extended up to 120m via category 6 and above network cables, supporting one-to-one connection, one-to-many connection via gigabit switch, or switch cascading. It also supports HDMI™ loop out, KVM, and RS-232 passthrough, and can be widely used in meetings, home entertainment, educational presentations, and other fields.

• HDMI length:  5m
• Maximum transfer rate: 18Gbps

• HDMI 2.0
• HDCP 1.4/HDCP 2.2

• 3840x2160-24/30/50/60Hz, 1080p-50/60Hz, 720p-50/60Hz, 1920x1200-60Hz, 2560x1440-60Hz, 2560x1600-60Hz

• One-to-one connection
• One-to-many connection
• Switch cascading

• Transmission distance: Cat6/6A/7120m
• Transmission latency: 80~140ms
• HDMI output: LPCM 2.0
• 5mm L/R output: PCM

• Power Supply: DC 5V/2A
• Power Consumption: TX 5.5W，RX 4W
• Working temperature: - 20âƒ~60âƒ
• Storage temperature: - 30âƒ~70âƒ
• Humidity: 0~90%RH (no condensationï¼
• Housing: lron
• Weight TX: 315g，RX: 307g
• Colour: Black
• Dimensions:0(L)*103.0(W)*20.6(H)mm

• ESD protection
• 1a Contact discharge level 2 (±4KV)
• 1b Air discharge level 3 (±8KV)
• Implementation of the standard: IEC61000-4-2
