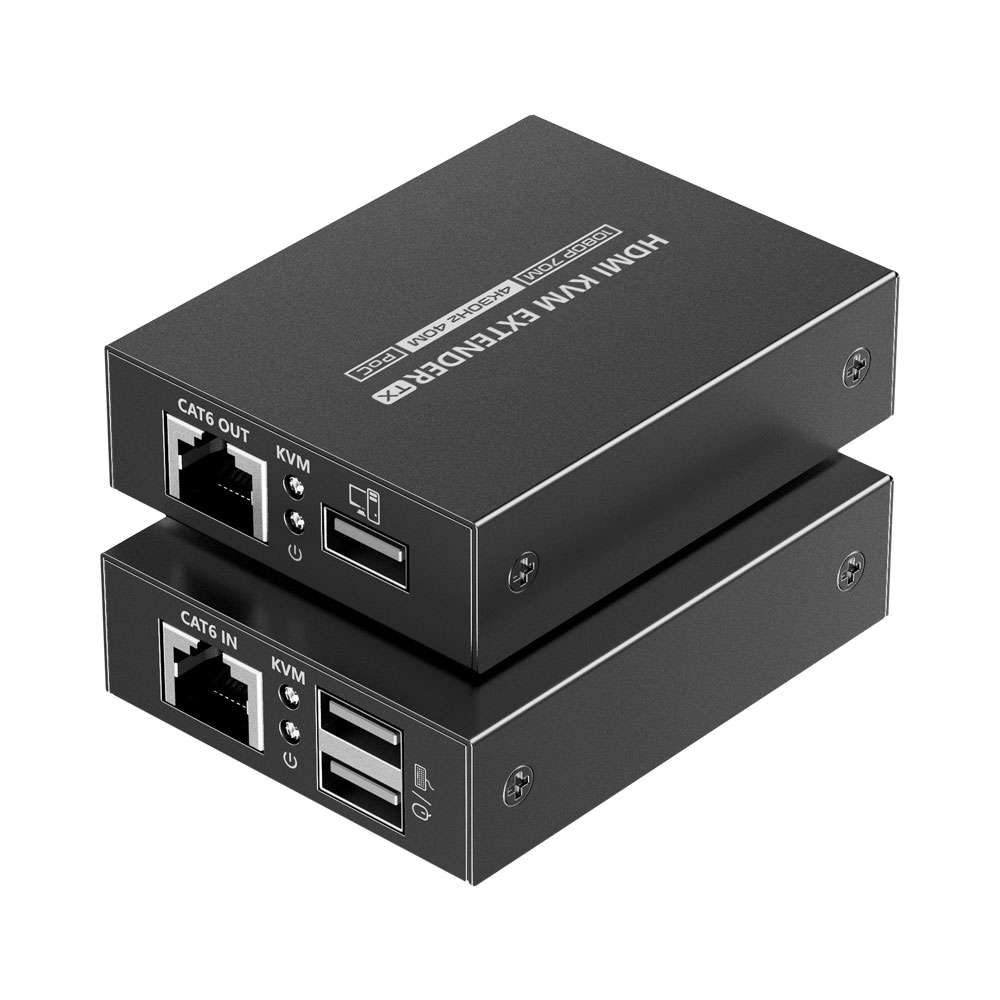

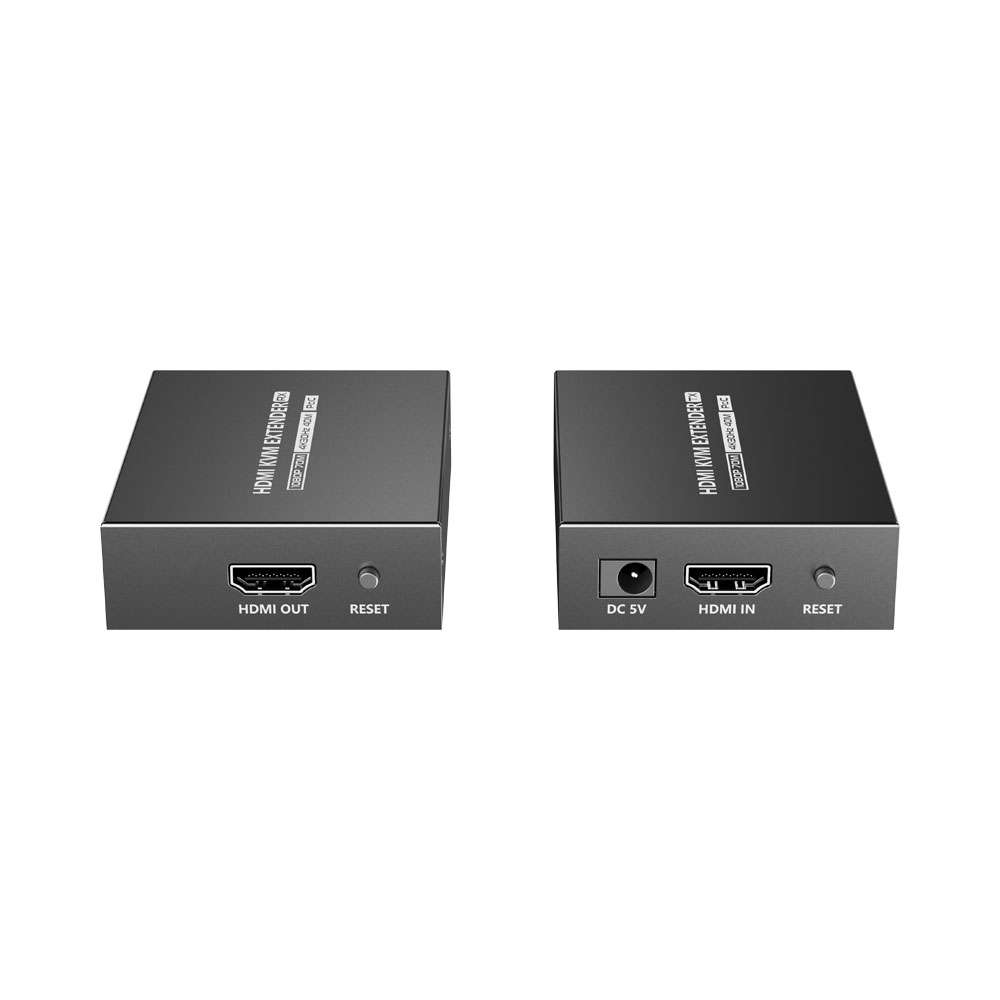

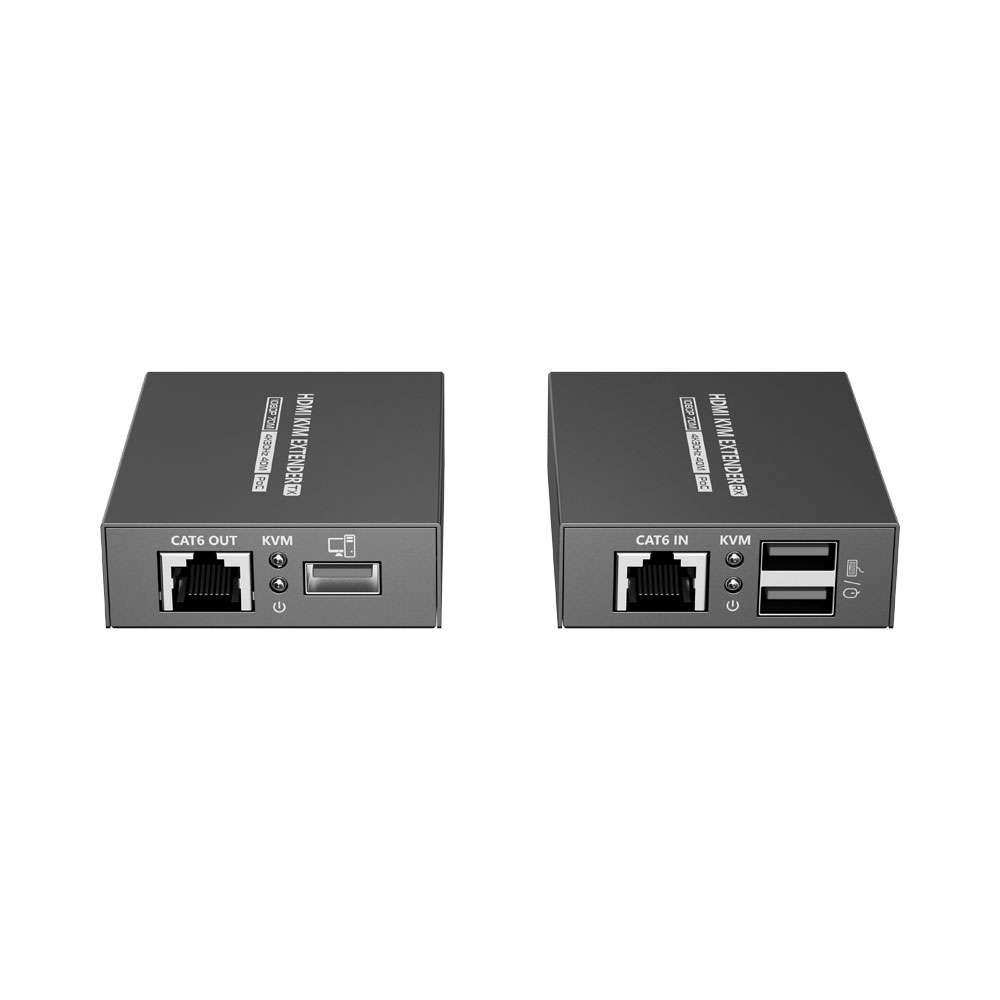

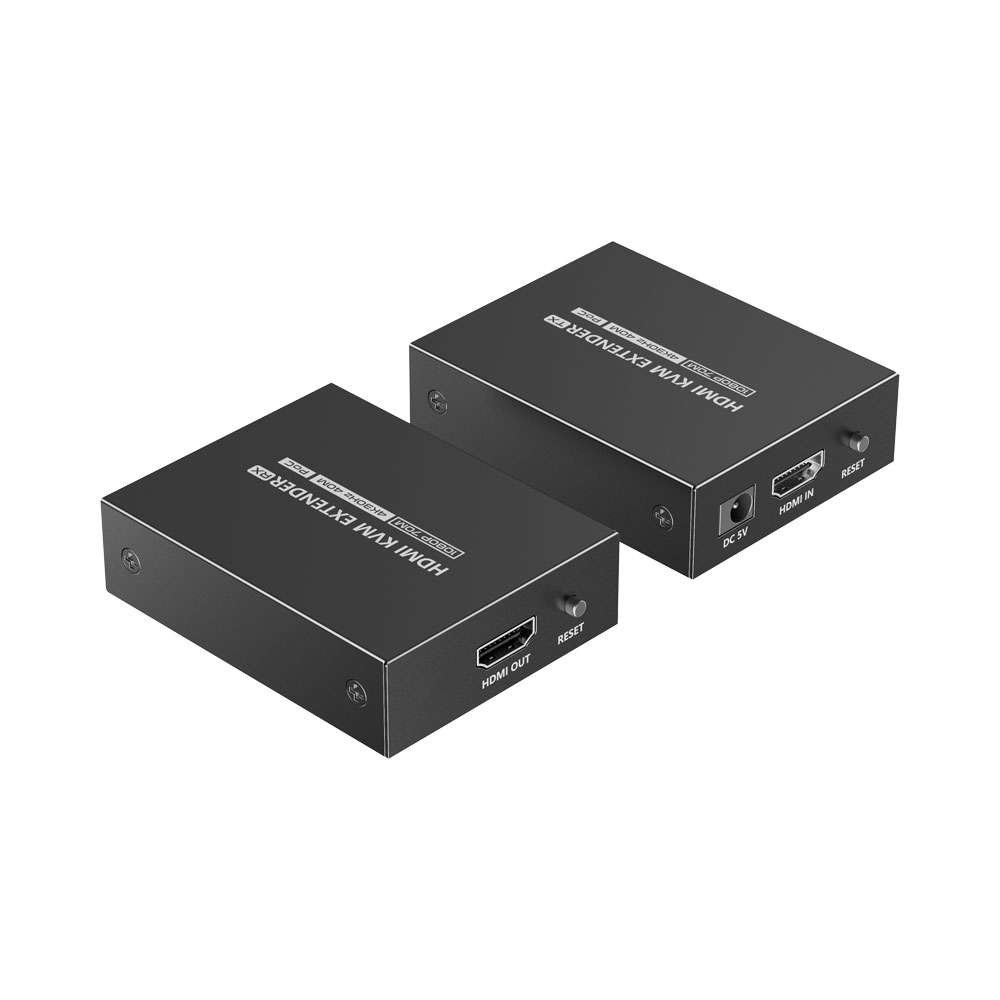

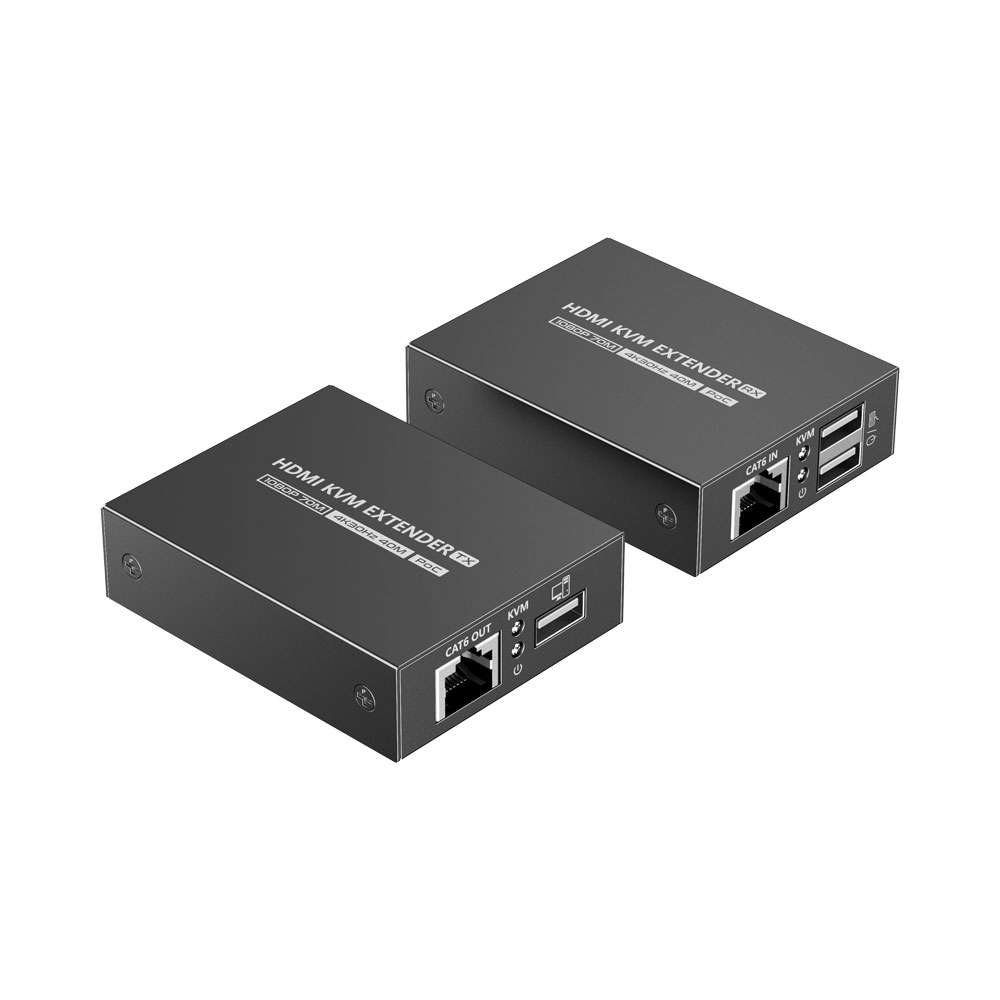

Lenkeng LKV372KVM-P HDMI KVM Extender up to 70m

This HDMI KVM Extender includes a transmitter and a receiver, allows the HDMI signal to be transmitted up to 70 meters at 1080p resolution using a Cat6/6A/7 network cable. It adopts a point-to-point connection configuration, supports KVM. It is perfect for outdoor advertising, monitor system, home entertainment, conference and more.

FEATURES

Zero Latency Uncompressed HDMI Video Signal
Extends 1080p @60Hz up to 70m via CAT6/6A/7 Network Cable
Supports HDR10
Supports Power-Over-Cable
Supports KVM Control

SPECIFICATIONS

Transmitter | Receiver
VIDEO SIGNAL
Transmission Medium: CAT6/6A/7
HDMI Cable: 3~5m | 3~5m
Max Transmission Rate: 10.2Gbps
HDR10: Yes
EDID Through: Yes
KVM: Yes
Input and Output TMDS Signal: 0.7~1.2Vp-p (TMDS)
Input and Output DDC Signal: 5Vp-p (TTL)
Compatibility: HDMI 1.4, HDCP 1.4
Resolution: 800 × 600, 1024 × 768, 1280 × 720,1280 × 960, 1366 × 768, 1440 × 900,1680 × 1050, 1920 × 1080, 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @24/25/30/50/60Hz, 3840 × 2160 @24/25/30Hz
Distance: CAT6/6A/7 | 1080p @60Hz Transmission up to 70m, 4K @30Hz Transmission up to 40m
AUDIO SIGNAL
Formats: DTS, DTS-HD, PCM, LPCM
POWER SUPPLY
Interface: 1× DC5V 2.1 Jack without Thread
Voltage: DC5V 2A (Only TX Needs Power Supply)
Working Power: TX and RX <10W
OPERATING ENVIRONMENT
Operating Temperature: -20~60°C
Storage Temperature: -30~70°C
Humidity: 0~90% (No Condensation)

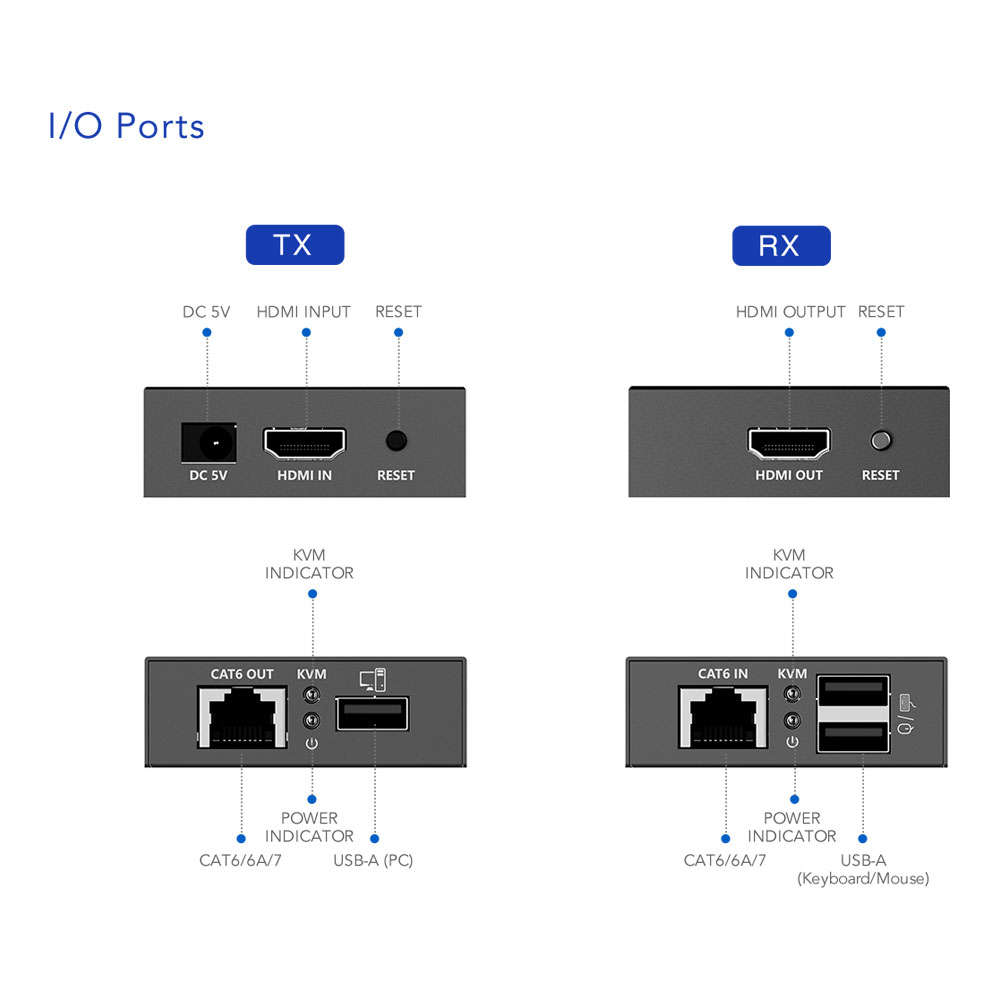

PHYSICAL PROPERTIES
Input: 1× DC2.1, 1× HDMI, 1× USB Type-A1× DC2.1, 1× RJ45, 12 USB Type-A
Output: 1× RJ45, 1× HDMI
Material: Metal
Weight: 123g, 123g
Colour: Black
Dimensions (L × W × H): TX: 75 × 60 × 20mm, RX: 75 × 60 × 20mm
Static Protection Implementation of the standard: IEC61000-4-2, 1a Contact Discharge Level 2 (±4KV), 1b Air Discharge Level 3 (±8KV)
Certification: FCC/CE/RoHS
