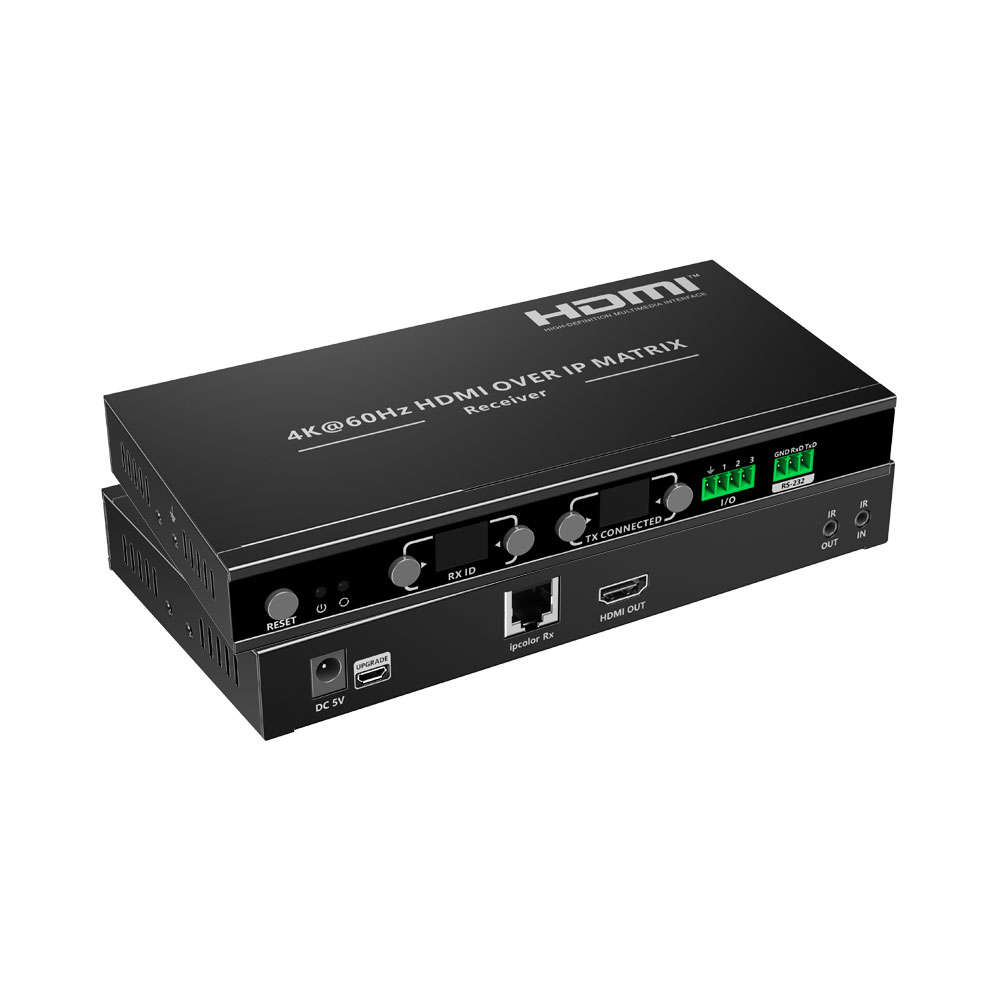

LENKENG IMMS-IM02 4K @60Hz HDMI over IP Matrix Extender - Receiver
Experience powerful, flexible and ultra-clear AV distribution with this 4K @60Hz HDMI over IP Matrix Extender, featuring both a transmitter and receiver. Designed for large-scale signal management, it uses IGMP switching and advanced ipcolor STREAM technology to deliver stunning 4K visuals with low-latency performance across your network.
The system supports up to 256 transmitters and 256 receivers, enabling seamless switching, routing and extension in complex multi-display environments. With transmission distances up to 120m over CAT6 or higher, it's perfect for One-to-One or Many-to-Many configurations.
Built for professional applications, the extender includes HDMI loop-out, bi-directional IR passback, RS232 control, I/O triggering and PoE for simplified installation. Ideal for AV conferencing, transportation control centers, broadcast environments, and education and training setups, it delivers dependable high-performance signal distribution for mission-critical workflows.
FEATURES
Built on ipcolor STREAM technology to deliver high-definition and low-latency transmission
Supports up to 3840×2160 @60Hz resolution, backwards compatible
Compatible with CAT5e/6 or higher-level networking cables, transmission distance of CAT6 cable is 120m
Supports One-to-One or Many-to-Many connections through a Gigabit switch
Supports RS232 passthrough and control
The transmitter supports HDMI loop out
Supports bi-directional IR pass-back (20~60KHz)
Supports IR learning remote and control device by App
Supports I/O interface control
Supports POE (Power over Ethernet)
Creating multi-screen splicing with up to 5x5 (also includes: 1x1/1x2/1x3/1x4/1x5/2x1/2x2/2x3/2x4/2x5/3x1/3x2/3x3/3x4/3x5/4x1/4x2/4x3/4x4/4x5/5x1/5x2/5x3/5x4/5x5) video wall through switch and controlled by App
Supports 256 signal source inputs and 256 signal outputs, providing flexible Many-to-Many matrix configuration (requires App control operation while connecting more than 100 TX-to-RXs)
Firmware upgrading via Micro USB port
Lightning protection, surge protection, ESD protection
Supports stable 24/7 operation
SPECIFICATIONS
HDMI Length: 5m
Maximum Transfer Rate: 18Gbps
Compatibility: HDMI 2.0，HDCP 1.4 / HDCP 2.2
Resolutions: 4096×2160 @24/30Hz, 3840×2160 @24/30/50/60Hz, 1080p @50/60Hz,720p @50/60Hz, 1920×1200 @60Hz, 2560×1440 @60Hz
Connection Types:
One-to-One
Many-to-Many
Switch Cascading
Transmission Distance: CAT5 80m / CAT5e 100m / CAT6 120m
Transmission Latency:
4K @60Hz (130~200ms)
1080p @60Hz (70~130ms)
HDMI Output: LPCM 2.0
IR Receiving Range: 5m
IR Frequency: 20kHz~60kHz
RS232 (GND/RXD/TXD): Default Baud Rate:
115200
Supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200
Power Supply: TX/RX: DC 5V 2A (Alternative)
Power Consumption:
TX 5.5W
RX 3.5W
Working Temperature: -20~60°C
Storage Temperature: -30~70°C
Humidity: 0~90% RH (No Condensation）
Housing: Metal
Weight:
TX：523g
RX：514g
Colour: Black
Dimensions (L × W × H): 191 × 96 × 25mm
Protection:
ESD Protection
1a Contact Discharge Level 2 (±4KV)
1b Air Discharge Level 3 (±8KV)
Implementation of the Standard: IEC61000-4-2
Lightning Protection, Surge Protection
