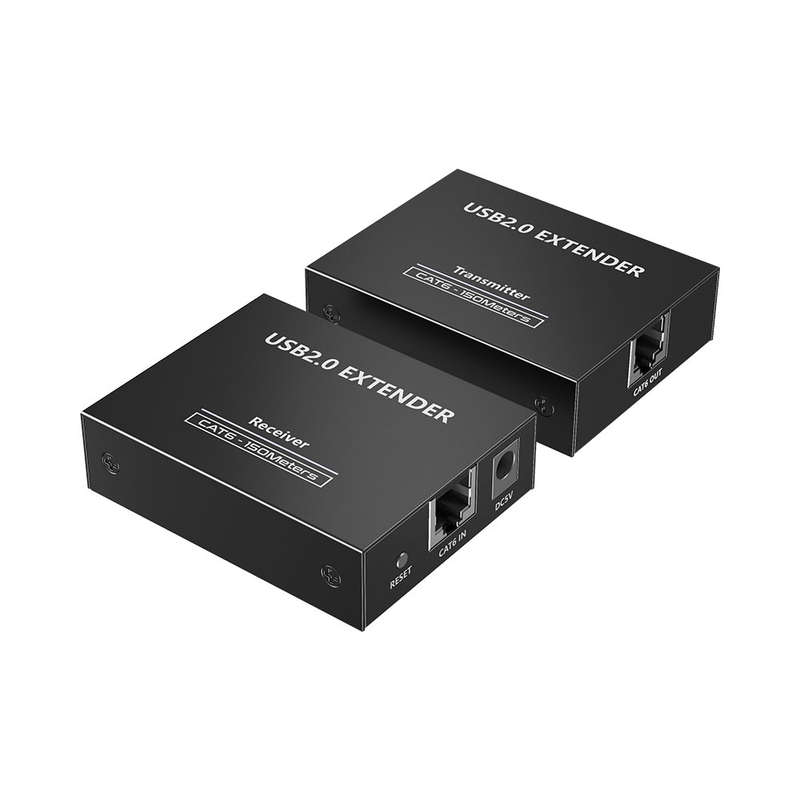

LENKENG LKV100USB | 150m~300m 4-Port USB2.0 Extender
FEATURES:
SPECIFICATIONS:
Compatibility | USB2.0, compatible with USB1.1, USB1.0 |
Transmission Rate | Compatible with High-Speed (480Mbps), Full-Speed (12Mbps) and Low-Speed (1.5Mbps) |
Transmission Distance | CAT6 / 6A / 7 150m |
USB Device | Supports printer, camera, scanner, USB flash drive, keyboard, mouse, touch screen, etc. |
Switch Extension | Supports gigabit switches |
USB Hot-Plug | Support |
Operating System | Windows, MacOS, Linux, Android |
USB Type-A | 4× Ports USB Type-A input |
1× Port USB Type-A output | |
Standard | CAT6 / CAT6A / CAT7, IEEE-568B Standard |
Housing | Metal |
Dimensions (L × W × H) | 76 × 60 × 21mm |
Weight | TX 123g |
RX 128g | |
Colour | Black |
Power Supply | Transmitter powered by source device |
Receiver powered by DC5V 1A | |
Power Consumption | TX 2W |
RX 2W | |
Working temperature | -20~60°C |
Storage temperature | -30~70°C |
Humidity | 0~90% (No condensation) |
Protection | ESD protection |
1a Contact discharge level 2 (±4KV) | |
1b Air discharge level 3 (±8KV) | |
Implementation of the standard: IEC61000-4-2 | |
Lightning and surge protection |
