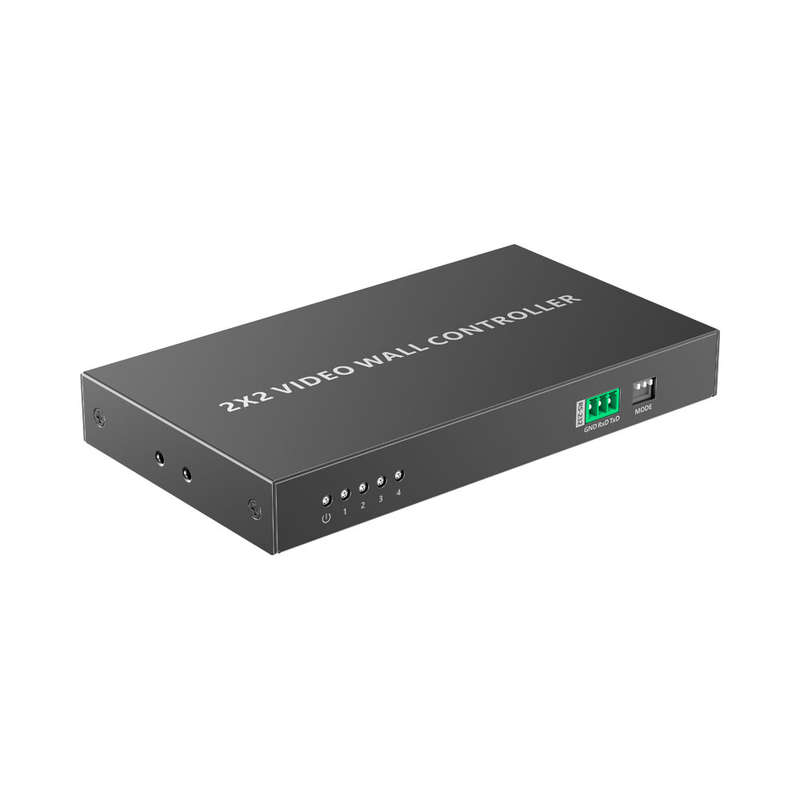

Lenkeng LKV104VW | 2×2 Video Wall Controller
FEATURES:
SPECIFICATIONS:
Video signal | HDMI Input | 1× HDMI |
HDMI Output | 4× HDMI | |
Compatibility | HDMI 1.4 | |
HDCP 1.4 | ||
Resolutions | 1080p @60/50/30/25/24Hz, 720p @60/50Hz, 576p @50Hz, 480p @60Hz, 1920 × 1200 @60Hz, 1680 × 1050 @60Hz, 1600 × 900 @60Hz, 1600 × 1200 @60Hz, 1440 × 900 @60Hz, 1400 × 1050 @60Hz, 1366 × 768 @60Hz, 1360 × 768 @60Hz, 1280 × 1024 @60Hz, 1280 × 960 @60Hz, 1280 × 800 @60Hz, 1280 × 768 @60Hz, 1024 × 768 @60Hz, 800 × 600 @60Hz, 640 × 480 @60Hz | |
Video signal | 3.5mm Output | PCM |
HDMI Output | PCM | |
Splice Settings | Mode | 1×1 / 2×1 / 1×2 / 2×2 / 3×1 / 1×3 / 4×1 / 1×4 |
DIP Switch | ||
RS-232 (GND / RxD / TxD) | Default baud rate: 9600 Only when the dip switch is set to '111' can the splicing mode be switched by RS-232 instruction | |
Power | Power Supply | DC5V 1A |
Power Consumption | <4W | |
Operating Environment | Working Temperature | -20°C~60°C |
Storage Temperature | -30°C~70°C | |
Humidity | 0~90%RH (No condensation) | |
Physical Properties | Housing | Metal |
Weight | 381g | |
Physical Properties | Colour | Black |
Dimensions (L × W × H) | 160 × 90 × 20.6mm | |
Protection | ESD Protection | |
1a Contact Discharge Level 2 (±4KV) | ||
1b Air Discharge Level 3 (±8KV) | ||
Implementation of the Standard: IEC61000-4-2 | ||
Lightning and Surge Protection |
