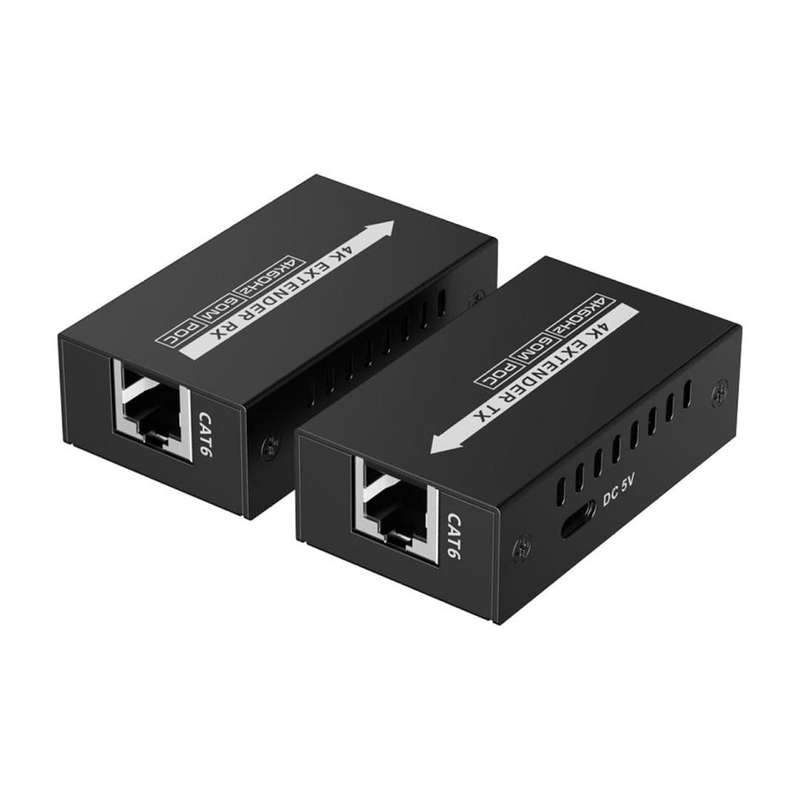

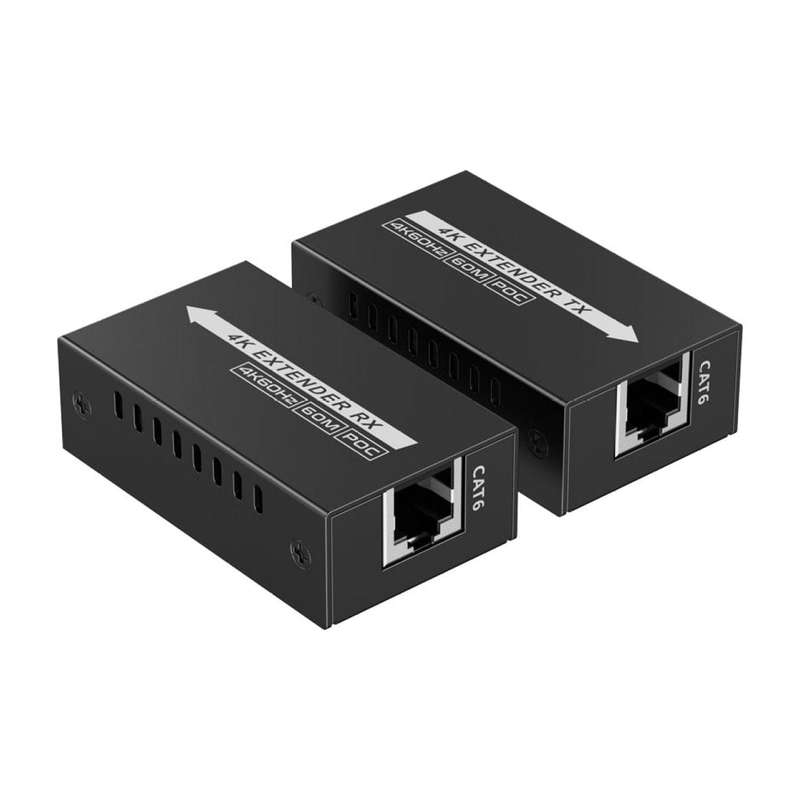

Lenkeng LKV410P 4K 60Hz HDMI Mini Extender 60m CNV-LKV410P
A point-to-point HDMI extender kit with zero latency transmission
Features:
- Zero latency transmission.
- Extends 4K -60Hz (3840 × 2160) HDMI up to 60m over CAT6/6A/7 cable.
- Supports HDR10.
- Supports EDID passthrough and auto downscaling.
- Lightning, surge and ESD protection.
- Supports PoC Network cable power supply. Only the transmitter requires a power supply.
Specifications
Maximum Transfer Rate: 18Gbps
Maximum Transmission Bandwidth: 600MHz
EDID Passthrough: Yes
Compatibility: HDMI 2.0 (Deep Colour, 4K, HDR, YUV 4:4:4); HDCP 2.2
Resolutions: 480i -60Hz, 480p -60Hz, 576i -50Hz, 576p -50Hz, 720p -50/60Hz, 1080i -50/60Hz, 1080p -50/60Hz, 3840×2160 -24/25/30/50/60Hz, 4096×2160 -24/25Hz, 1280×960, 1280×800, 1280×768, 1680×1050, 1920×1200, 1360×768, 1366×768, 1600×900, 1024×768, 800×600
Transmission Distance: CAT6/6A/7 60m
Audio Formats: LPCM / DTS 5.1 / Dolby Digital 5.1CH
Power Supply: TX: DC5V 2A; RX: PoC (Powered by TX)
Power Consumption: TX+RX <5W
Working Temperature: -20°C~60°C
Storage Temperature: -30°C~70°C
Humidity: 0 ~ 90%RH (No Condensation)
Housing: Metal
Weight: TX: 92g; RX: 91g
Colour: Black
Dimensions (L × W × H): 67 × 40 × 23mm
Protection: ESD Protection; 1a Contact Discharge Level 2 (±4KV); 1b Air Discharge Level 3 (±8KV) Implementation of the Standard: IEC61000-4-2; Lightning Protection; Surge Protection
