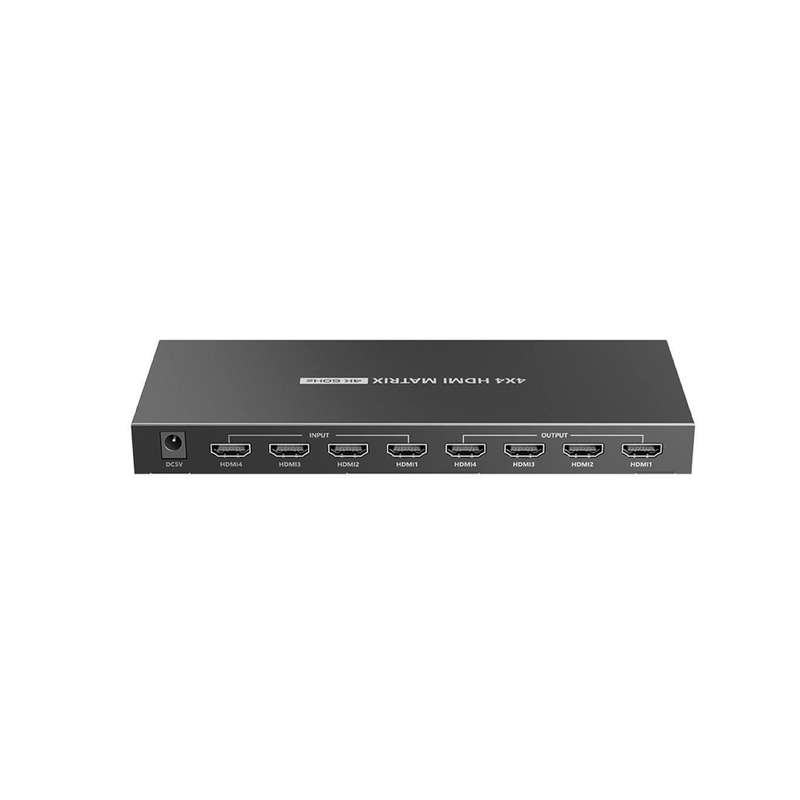

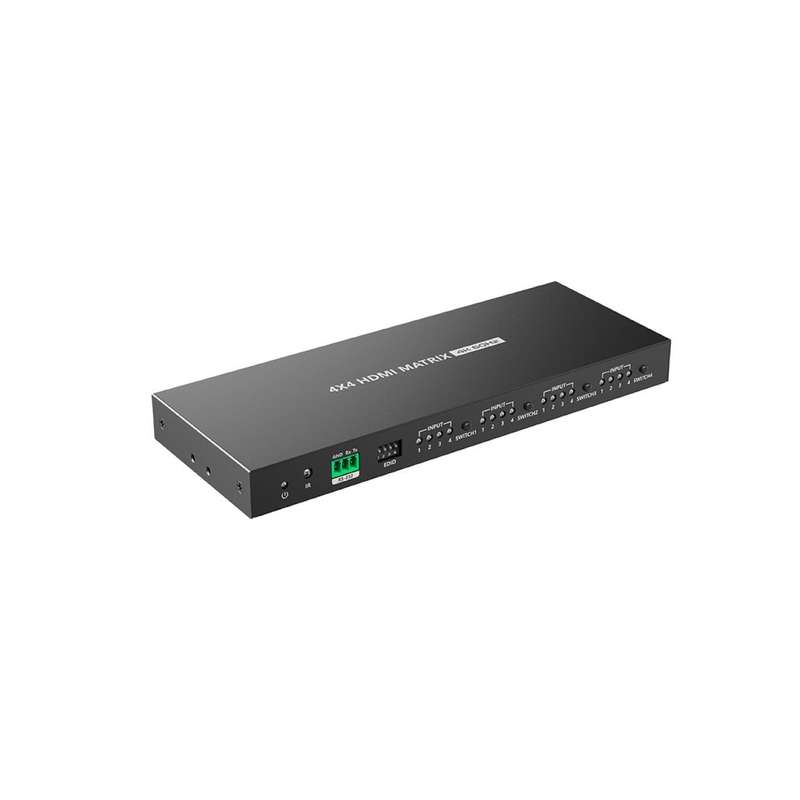

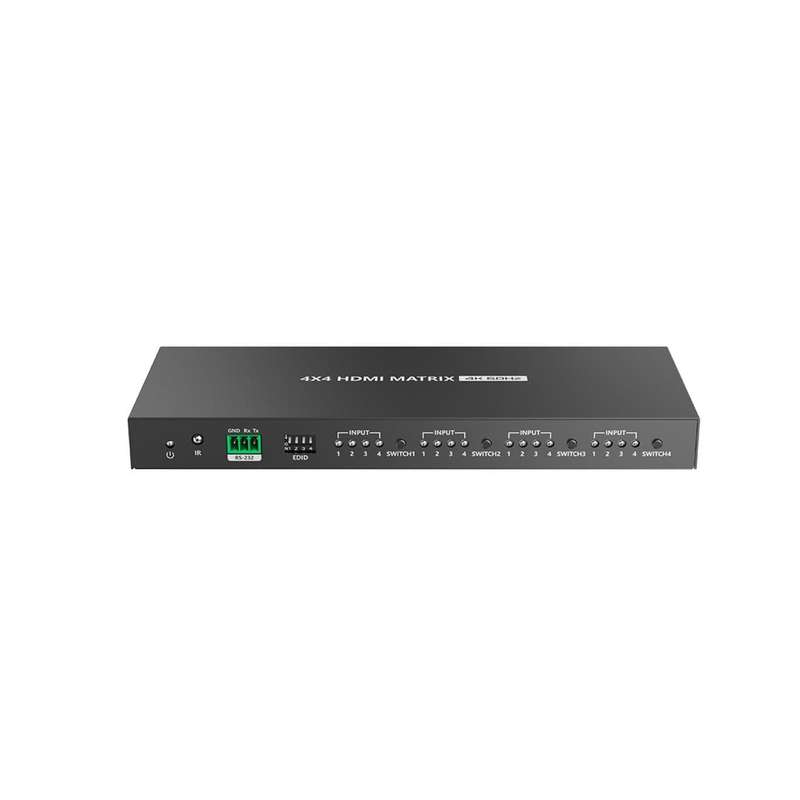

Lenkeng LKV424 HDMI Matrix Switch with RS232
HDMI Matrix Switch 4096 x 2160p -60Hz HDR
This is a 4 in 4 out HDMI™ matrix switch, it can switch 4 HDMI™ input signals to 4 HDMI™ displays as needed. It supports up to 4096x2160-60Hz HDR UHD resolution, and a variety of switching methods (IR remote control, buttons and RS232).
Specifications:
HDMI version: HDMI2.0ï¼HDR,YUV4:4:4), Compatible with HDCP2.2,HDCP1.4
HDMI interface: 4 HDMI input, 4 HDMI output
Transmission rate: 18Gbps
Bandwidth: 600MHz
Resolution: 480i -60Hz, 480p -60Hz, 576i -50Hz, 576p -50Hz, 720p -50/60Hz, 1080i -50/60Hz, 1080p -50/60Hz, 3840 x 2160p -24/25/30/60Hz, 4096 x 2160 -24/25/30/60Hz
Audio format: LPCM7.1/DTS-HD/DTS-Audio/Dolby Digital plus/ Dolby TrueHD 7.1/Dolby Digital 7.1CH/Dolby Atmos and RS-232, 3 Pin(GND/Rx/Tx), Baud rate 9600
Voltage: DC5V/1A
Power consumption: <4W
