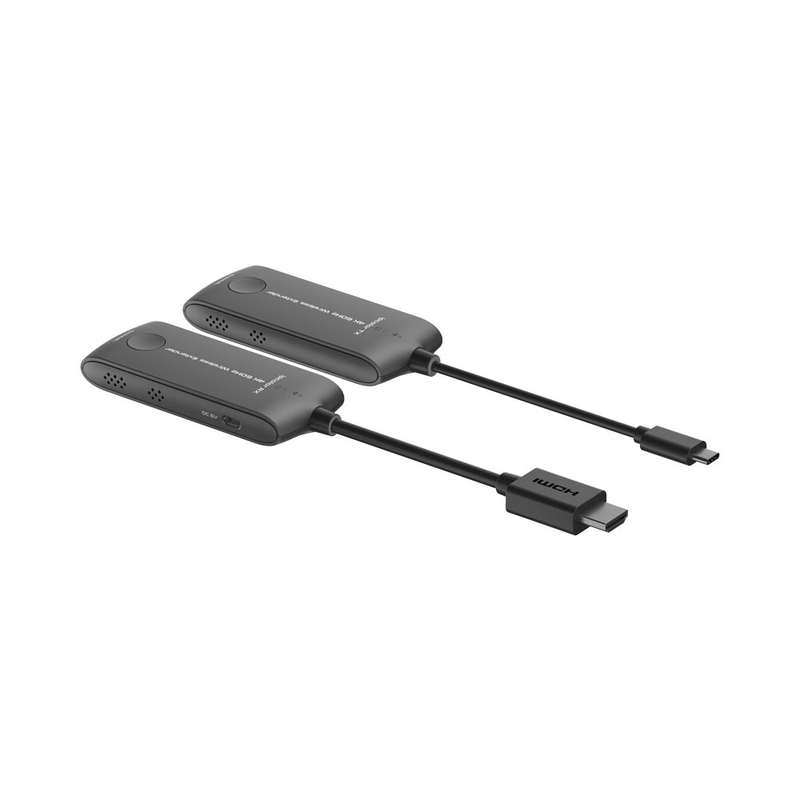

Lenkeng LKV488Type-C | 20m Mini 4K @60Hz Type-C to HDMI Wireless Extender
Using ipcolor STREAM technology for high definition and low-latency transmission. Based on the 5.0GHz wireless frequency band, with stable anti-interference and safety performance. It supports one-to-one wireless transmission up to 20m.
FEATURES:
SPECIFICATIONS:
Voltage/Current | Micro USB Power Supply (5V 1A) |
Power Consumption | TX: <5W |
RX: <3.5W | |
HDMI Version | HDMI 2.0 |
HDCP Version | HDCP 1.4 / HDCP 2.2 |
Max. Transmission Rate | 18Gbps |
Resolutions | 3840×2160 @24/30/50/60Hz (YUV 4:4:4, YUV 4:2:2 and RGB), 1080p @50/60Hz, 720p @50/60Hz, 1920×1200 @60Hz |
Input and Output TMDS Signal | 0.7~1.2Vp-p (TMDS) |
Input and Output DDC Signal | 5Vp-p (TTL) |
Wi-Fi Frequency Bands | 5.18~5.24GHz |
Transmission Distance | 20m |
Latency | 100~250ms |
Connection Type | One-to-One |
SSID Pairing | Supported |
ESD Protection | 1a Contact Discharge Level 3 |
1b Air Discharge Level 3 Standard: IEC61000-4-2 | |
Working Temperature | -20~50°C |
Storage Temperature | -30~70°C |
Humidity (No Condensation) | 0~90% RH |
Dimensions (W × L × H) | TX: 40.2 × 230 × 15mm |
RX: 40.2 × 230 × 15mm | |
Colour | Black |
Material | ABS |
Net Weight | TX: 47g |
RX: 54g |
