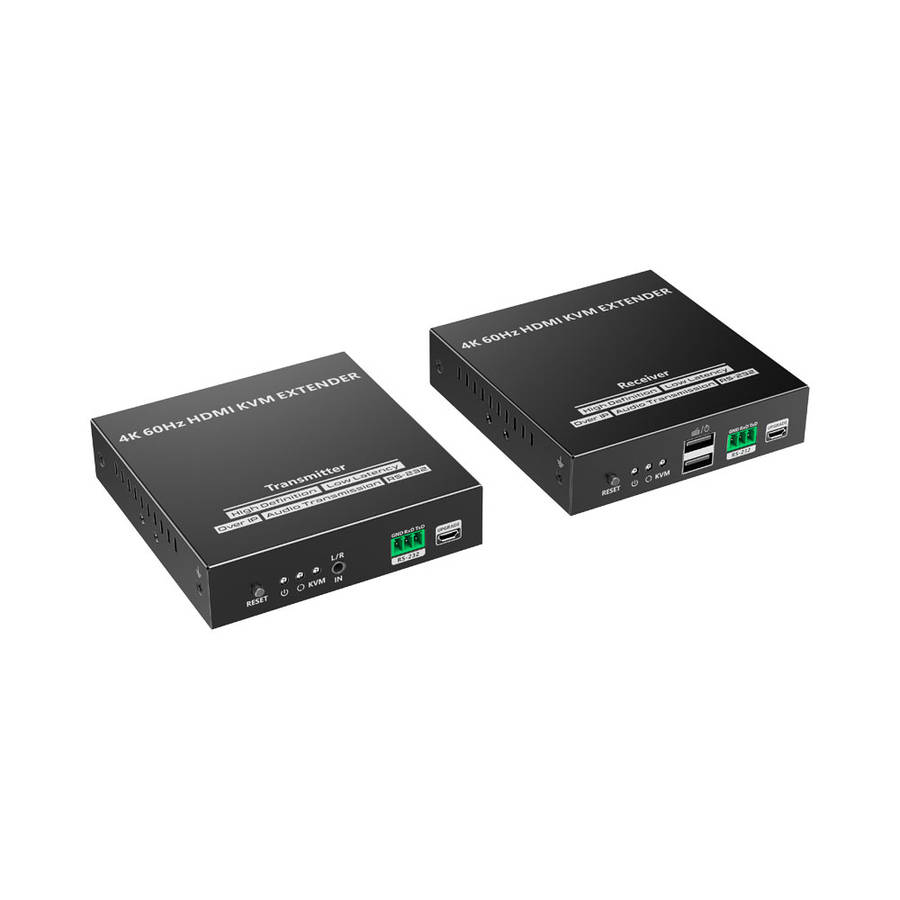

Lenkeng LKV582KVM | 120m 4K @60Hz HDMI Over IP KVM Extender
This 4K @60Hz HDMI KVM Extender Kit consists of a transmitter and a receiver, using ipcolor STREAM technology for high definition, low-latency transmission. The 4K @60Hz HDMI signal can be extended up to 120m via CAT6 and above network cables, supporting one-to-one connection, one-to-many connection via a gigabit switch or switch cascading. It also supports HDMI loop out, KVM and RS232 passthrough.
FEATURES:
SPECIFICATIONS:
Transmitter-TX | Receiver-RX | |
VIDEO SIGNAL | ||
Input Interface | 1× HDMI | 1× RJ45 |
Output Interface | 1× HDMI | 1× HDMI |
1× RJ45 | ||
Compatibility | HDMI 2.0 | |
HDCP 2.2 | ||
HDMI Cable Length | 5m | |
Maximum Transfer Rate | 18Gbps | |
Resolutions | 3840 × 2160 @24/30/50/60Hz, 1080p @50/60Hz, 720p @50/60Hz, 1920 × 1200 @60Hz, 2560 × 1440 @60Hz, 2560 × 1600 @60Hz | |
Connection Types | One-to-one connection | |
One-to-many connection | ||
Switch cascading | ||
Transmission Distance | Cat6/6A/7 120m | |
Transmission Latency | 80~140ms | |
AUDIO SIGNAL | ||
Input Interface | 1× HDMI | 1× RJ45 |
1× 3 . 5mm L/R | ||
Output Interface | 1× RJ45 | 1× HDMI |
1× 3.5mm L/R | ||
HDMI Output | LPCM 2.0 | |
3. 5mm L/R Output | PCM | |
COMMAND SIGNAL | ||
RS-232 (GND/RXD/TXD) | Default baud rate: 115200 Supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200 | |
POWER | ||
Power Supply | DC5V 2A | DC5V 2A |
Power Consumption | TX: 5.5W | RX: 4W |
OPERATING ENVIRONMENT | ||
Working Temperature | -20°C~60°C | |
Storage Temperature | -30°C~70°C | |
Humidity | 0~90%RH (no condensation) | |
PHYSICAL PROPERTIES | ||
Housing | lron | |
Weight | TX: 315g | RX: 307g |
Colour | Black | |
Dimensions (L × W × H) | 106 × 103 × 20.6mm | |
Protection | ESD protection | |
1a Contact Discharge Level 2 (±4KV) | ||
1b Air Discharge Level 3 (±8KV) | ||
Implementation of the Standard: IEC61000-4-2 | ||
Lightning and Surge Protection |
