Lenkeng - Lkv676 Cascade Receiver Only - Lenkeng - Lkv676 Cascade Receiver Only

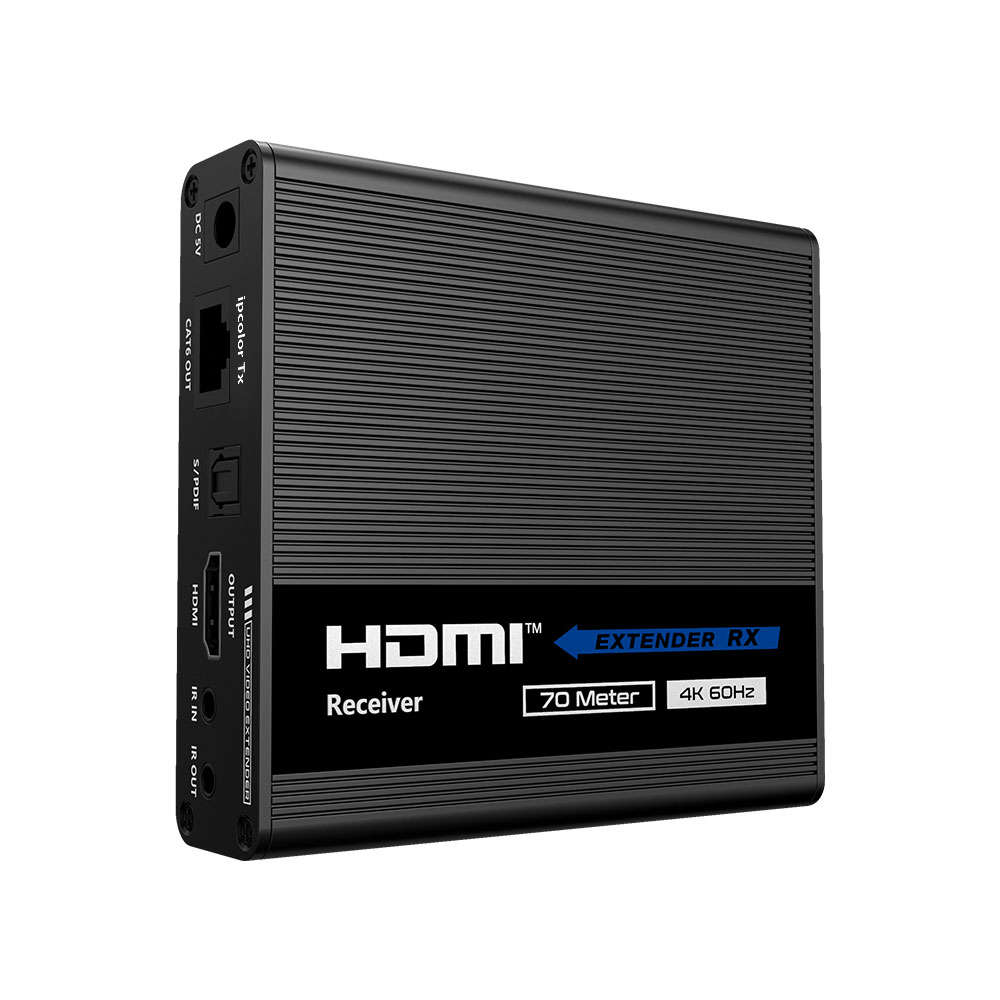

LENKENG LKV676Cascade 70m 4K @60Hz HDR Point-to-Point Extender Over CAT6 with HDMI Loop Out and IR Passback - Receiver

Push your video further with zero lag.

The LENKENG LKV676Cascade delivers stunning 4K @60Hz HDR transmission over a single CAT6/6A/7 cable up to 70m, complete with HDMI loop-out and bi-directional IR passback. Ideal for multi-screen cascades in classrooms, boardrooms or home theatres, it supports up to 10× receivers and even powers the first receiver via the network cable. With Dolby audio support, EDID passback and robust surge and static protection, this extender brings pro-level AV distribution to any setup.

FEATURES

Zero Latency
4K @60Hz HDMI Signal Can be Transmitted 70m Through a CAT6/6A/7 Network Cable
Supports up to 10× Receivers in Cascade, Auto Adapt to Display Resolution
Receiver Can Extract the Digital Audio from the Transmitter Through the S/PDIF Port
Supports Dolby Audio (Dolby TrueHD 7.1CH / Dolby Digital 5.1CH)
Supports HDR (YUV4:4:4), EDID Passback
Transmitter Supports One HDMI Loop-Out
Supports Bi-Directional IR Passback Function (2060KHz), Cascade When 10× Receivers Are Available
One Receiver Can Be Powered by the Transmitter via Network Cable, Only on the First Receiver
Anti-Lightning, Anti-Surge, Anti-Static Protection

SPECIFICATIONS

Voltage/Current: DC5V 2A
Power Consumption: TX <4W, RX <4W
HDMI Compliance: HDMI 2.0
HDCP Compliance: HDCP 2.2
HDMI Resolution: 3840×2160 @24/25/30/50/60Hz
Supports Audio Formats: LPCM / DTS-HD / DTS-Audio /Dolby TrueHD 7.1CH / Dolby Digital 5.1CH
Input and Output DDC Signal: 0.7~1.2Vp-p (TMDS)
Input and Output DDC Signal: 5Vp-p (TTL)
Input Cable Length: 8m (AWG24)
Output Cable Length: 8m (AWG24)
CAT6/6A/7: 70m
Electrostatic Protection: 1a Contact Discharge level 3, 1b Air Discharge Level 3, Implementation of the Standard: IEC61000-4-2
Working Temperature: -20~60°C
Storage Temperature: -30~ 70°C
Humidity (No Condensation): 0~90% RH
Dimensions (L × W × H): 106 × 99 × 26.2mm
Material: Aluminium-Alloy and Crystal Panel
Colour: Black
Weight: TX 210g, RX 210g
