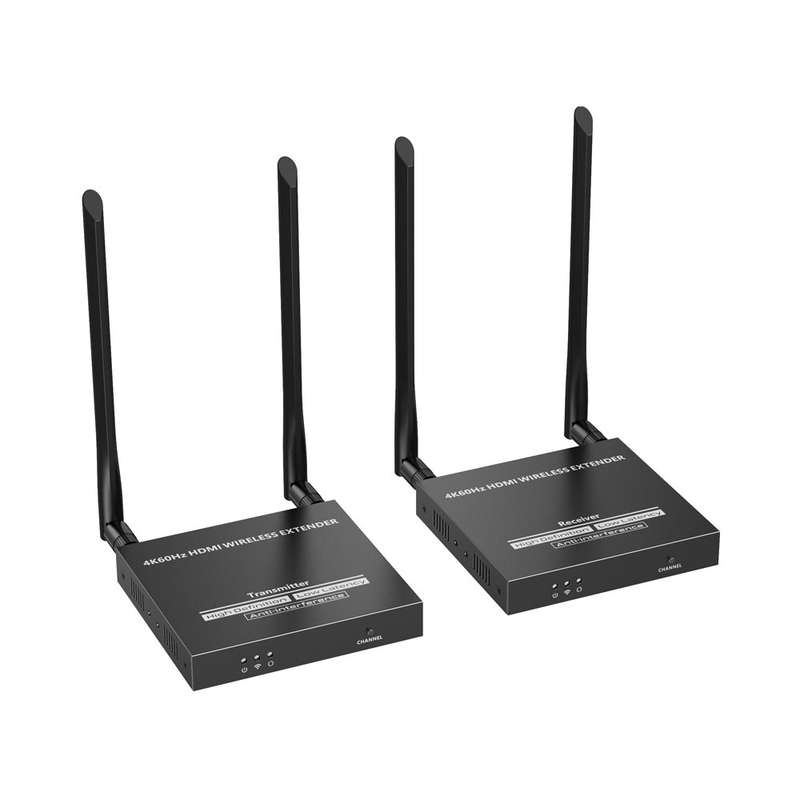

LENKENG LKV699 | 50m 4K HDMI Wireless Extender with Through Wall Dual Antenna and Loop-Out
This is a 4K @60Hz HDMI wireless extender, including a transmitter and a receiver. Adopting ipcolor STREAM technology to transmit high definition with low-latency. Based on the 5G wireless frequency band, with stable anti-interference and safety performance. It supports 1-to-1 wireless transmission up to 50 meters, effectively solving problems caused by complicated wiring.
FEATURES:
SPECIFICATIONS:
Voltage/Current | DC5V / 2A |
Power Consumption | TX 6W, RX 4W |
HDMI Version | HDMI 2.0 |
HDCP Version | HDCP 1.4/HDCP 2.2 |
Maximum Transfer Rate | 18Gbps |
Resolution Supported | 3840 × 2160@24/30/50/60Hz, 1080P @50/60Hz, 720P @50/60Hz, 1920 × 1200, 2560 × 1440, 2560 × 1600 |
Input and Output TMDS Signal | 0.7~1.2Vp-p (TMDS) |
Input and Output DDC Signal | 5Vp-p (TTL) |
Wi-Fi Frequency Bands | 5.18~5.24GHz |
Transmission Distance | 50m |
Latency | 130~180ms |
Connection Types | One-to-one |
SSID Pairing | Supported |
ESD Protection | 1a Contact Discharge Level 3 |
1b Air Discharge Level 3 | Standard: IEC61000-4-2 |
Infrared Frequency | 20~60kHz |
Receiving Range | 5m |
Working Temperature | -20~60°C |
Storage Temperature | -30~70°C |
Humidity (No Condensation) | 0~90% RH |
Dimensions | TX: 115 (W) × 125 (L) × 20.6 (H) mm |
RX: 115 (W) × 125 (L) × 20.6 (H) mm | |
Colour | Black |
Material | Iron |
Net weight | TX: 353g; RX: 346g |
