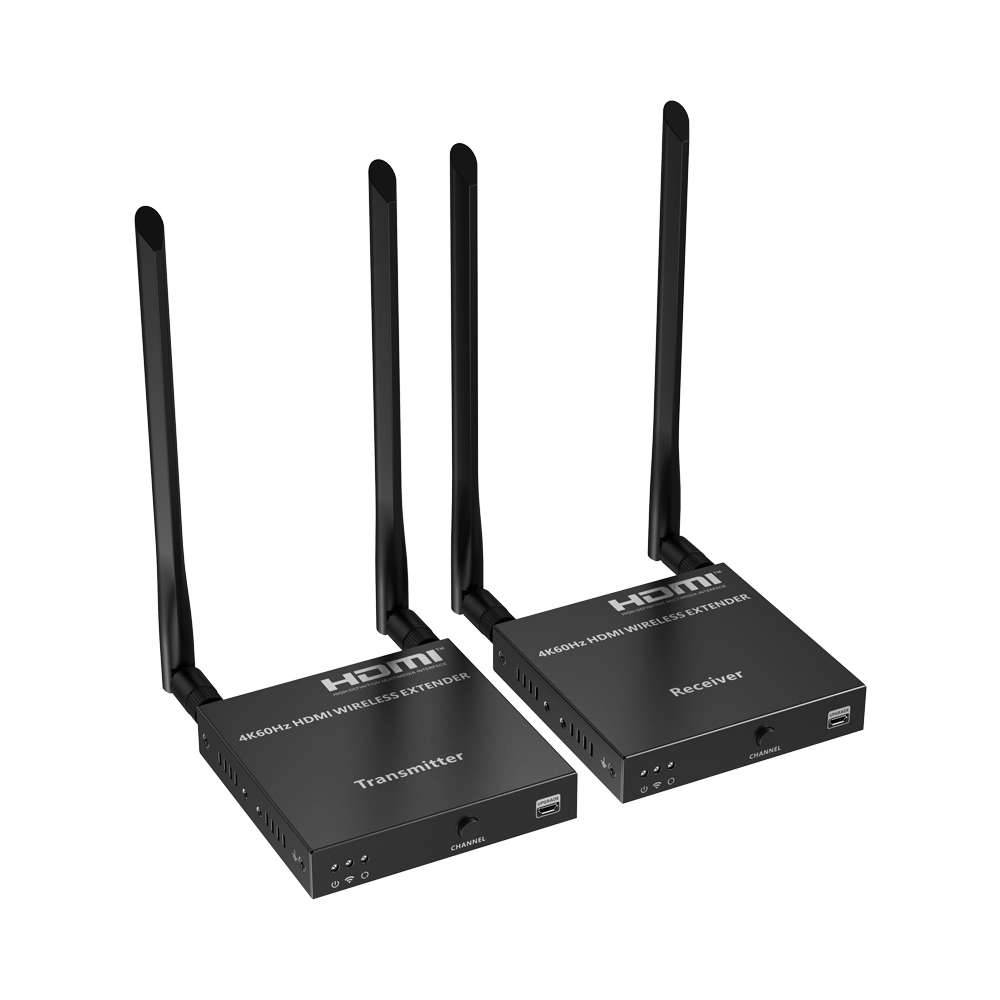

Lenkeng LKV699E 4K @60Hz HDMI Wireless Extender - Transmitter and Receiver Kit

Wireless 4K Video Distribution with Flexible Multi-Receiver Expansion.

The Lenkeng LKV699E wirelessly transmits HDMI video and audio at resolutions up to 4096 × 2160 @60Hz, helping eliminate long and complicated HDMI cable runs. Powered by ipcolor STREAM technology, it delivers high-definition, low-latency transmission over the 5.0GHz wireless band. The included transmitter and receiver support distances of up to 50m in a one-to-one, line-of-sight installation. The system can be expanded to support up to four compatible receivers, making it suitable for conference rooms, classrooms, digital signage and home entertainment. HDMI loop-out enables a local display at the transmitter, while IR passback allows compatible source equipment to be controlled remotely. SSID pairing and four selectable channels help reduce interference when multiple systems operate nearby.

FEATURES

4K @60Hz Wireless Transmission - Sends HDMI video and audio without a direct cable between locations

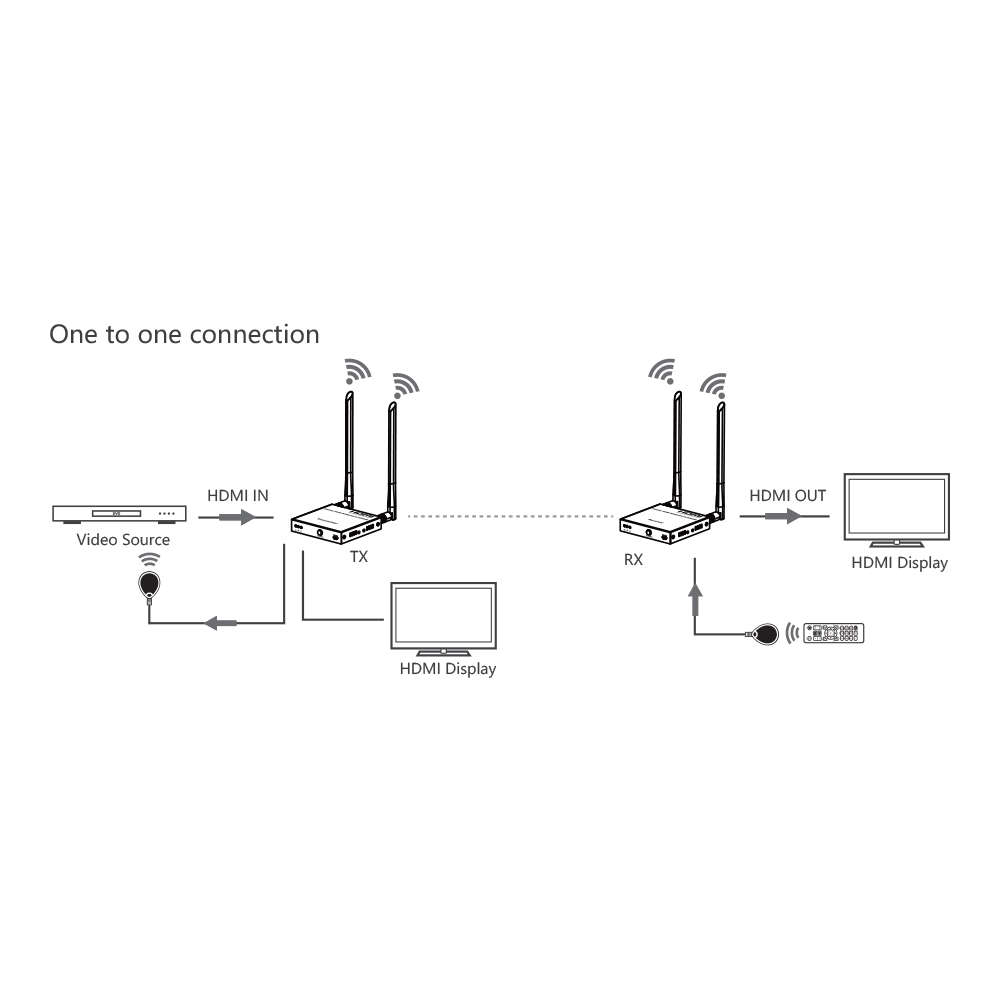

Up to 50m Wireless Range - Supports one-to-one transmission across an unobstructed line of sight
Expandable Multi-Receiver Support - Distributes one HDMI source to as many as four compatible receivers
ipcolor STREAM Technology - Provides high-definition video with low transmission latency
5.0GHz Wireless Band - Supports stable transmission with strong resistance to wireless interference
HDMI Loop-Out - Connects a local display directly to the transmitter
IR Passback - Allows compatible source equipment to be controlled from the receiver location
Channel Switching - Offers four selectable channels to help reduce interference
SSID Pairing - Supports reliable manual pairing between transmitters and receivers
HDMI 2.0 and HDCP 2.2 - Supports modern Ultra HD sources and compatible protected content
Dual External Antennas - Support stable wireless reception and transmission
Firmware Upgrade Port - Enables firmware updates through the Micro USB connection
Metal Housing - Provides durable protection for professional AV installations
Mounting Accessories - Support neat and secure equipment installation

SPECIFICATIONS

VIDEO AND HDMI

Maximum Resolution: 4096 × 2160 @60Hz
Supported 4K Resolutions: 4096 × 2160 @24/30/50/60Hz and 3840 × 2160 @24/30/50/60Hz
Additional Resolutions: 2560 × 1440, 1920 × 1200, 1080p @50/60Hz and 720p @50/60Hz
HDMI Version: HDMI 2.0
HDCP Version: HDCP 1.4 / HDCP 2.2
Maximum Transfer Rate: 18Gbps
Transmitter HDMI Input: 1
Transmitter HDMI Loop-Out: 1
Receiver HDMI Output: 1

WIRELESS TRANSMISSION

Wireless Technology: ipcolor STREAM
Wireless Frequency Band: 5.18~5.24GHz

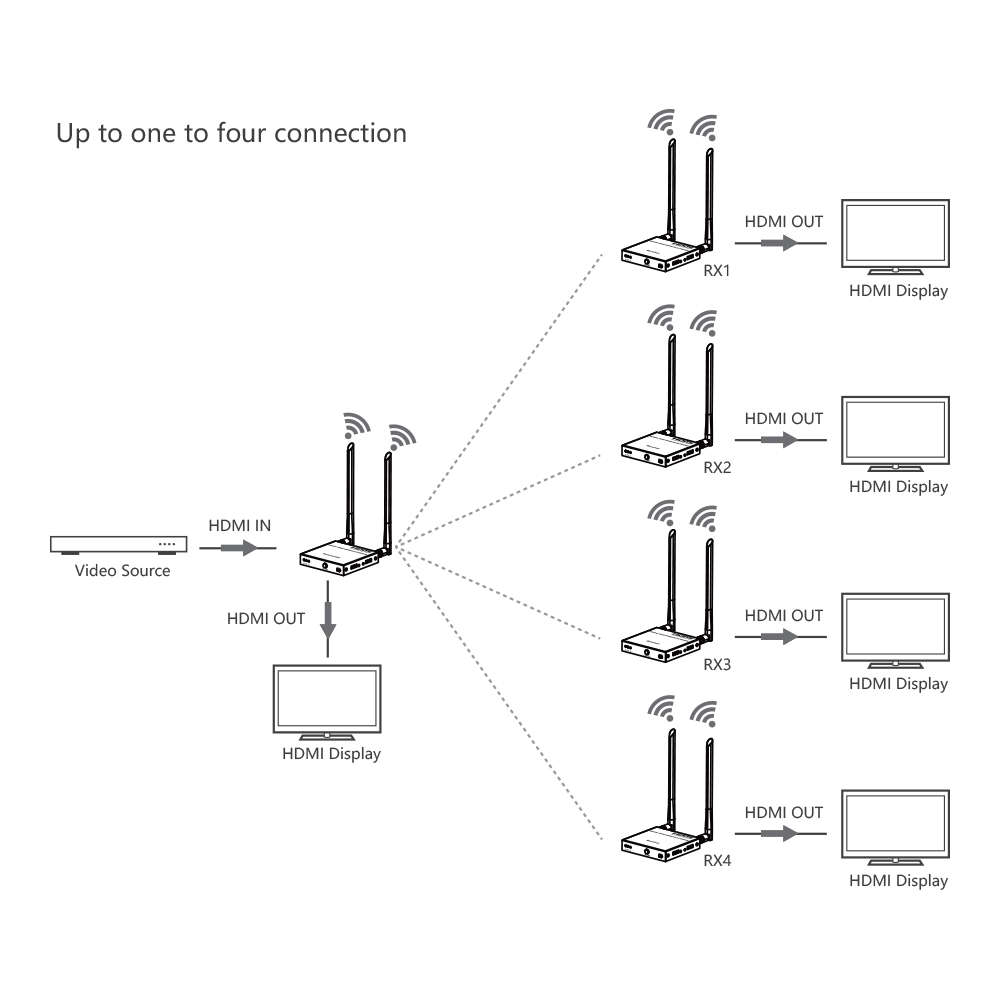

Supported Connection Types: One-to-One, One-to-Two, One-to-Three and One-to-Four
One-to-One Range: Up to 50m
One-to-Two Range: Up to 30m
One-to-Three Range: Up to 20m
One-to-Four Range: Up to 15m
SSID Pairing: Supported
Selectable Channels: 4

LATENCY

4K @60Hz Latency: Approximately 130~220ms
1080p @60Hz Latency: Approximately 70~120ms

IR CONTROL

IR Passback: Supported
Infrared Frequency: 20~60kHz
Infrared Receiving Range: Up to 5m

POWER

Power Input: DC5V 2A
Transmitter Power Consumption: Up to 5W
Receiver Power Consumption: Up to 4W
Power Adapters Included: 2

PHYSICAL

Housing Material: Metal
Colour: Black
Transmitter Dimensions (W × L × H): 106 × 103 × 20.6mm
Receiver Dimensions (W × L × H): 106 × 103 × 20.6mm
Transmitter Weight: 299g
Receiver Weight: 299g

ENVIRONMENTAL

Operating Temperature: -20~60°C
Storage Temperature: -30~70°C
Operating Humidity: 0~90% RH, Non-Condensing

NOTE

The included kit supports one-to-one transmission. Additional compatible receivers are required for one-to-many installations. Maximum transmission distances are measured under line-of-sight conditions and may be reduced by walls, glass, wireless interference and other environmental factors. HDMI cables are not included.
