Lenkeng Lkv824P 1×4 Hdmi Splitter With Extender
Closed

Lenkeng Lkv824P 1×4 Hdmi Splitter With Extender

New 4 were available
R10,903.15
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
CNV-LKV824P
Bob Shop ID
625697287

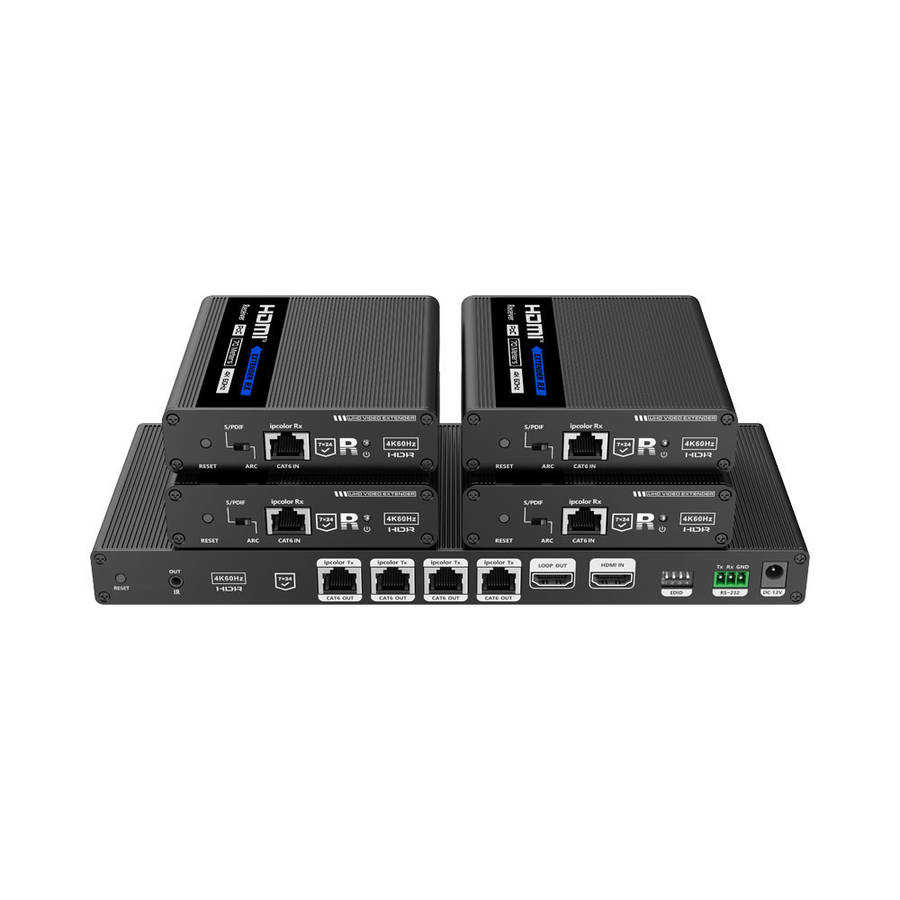

Lenkeng LKV824P | 1×4 HDMI Splitter with Extender

The Lenkeng LKV824P is a 1-input to 4-output extender splitter kit, which integrates the functions of distribution and extension.  It distributes 1× HDMI input signal to 4× identical signal outputs, extends these signals up to 70m and supports 4K @60Hz resolution.  It also supports IR passback, RS232 control and other functions.

FEATURES:

  • Zero latency transmission
  • Split and extend one HDMI input signal to four identical network output signals
  • Supports up to 4K @60Hz resolution
  • Transmission distance up to 70m via CAT6/6A/7 cables
  • Supports IR passback (20KHz~60KHz)
  • The transmitter supports HDMI loop out
  • The receiver can output the digital audio of the TV or source device from the S/PDIF port
  • Supports EDID passthrough or manually set the EDID of the product
  • Supports RS232 command control
  • Surge, lightning and ESD protection
  • Equipped with rackmount ears
  • Supports PoC - only the transmitter requires a power supply

SPECIFICATIONS:

Transmission protocolipcolor
Distribution mode1 In and 4 Out
Transmission distanceCAT6/6A/7 70m
HDMI signalHDMI2.0, HDCP2.2
HDMI resolution480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz, 1280 × 960, 1280 × 800, 1280 × 768, 1680 × 1050, 1360 × 768, 1366 × 768, 1600 × 900, 1024 × 768, 800 × 600, 3840 × 2160 @24/25/30/50/60Hz, 4096 × 2160 @24/25Hz
Audio formatsLPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1
IRSupport IR passback function (20KHz~60KHz)
RS2323-Pin: TxD-RxD-GND, follows RS232 levels
Working temperature-20~60°C
Storage temperature-30~70°C
Humidity (no condensation)0~90% RH
ProtectionESD protection
1a Contact discharge level 2
1b Air discharge level 3
Implementation of the standard: IEC61000-4-2
Lightning protection
Surge protection
Power supplyTX: DC12V 3A
Power consumptionTX <13W
RX <4W
MaterialAluminium Alloy
ColourBlack
WeightTX: 640g
RX: 210g
Dimensions (L × W × H)TX: 264 × 104 × 23.5mm
RX: 106 × 99 × 26.2mm
