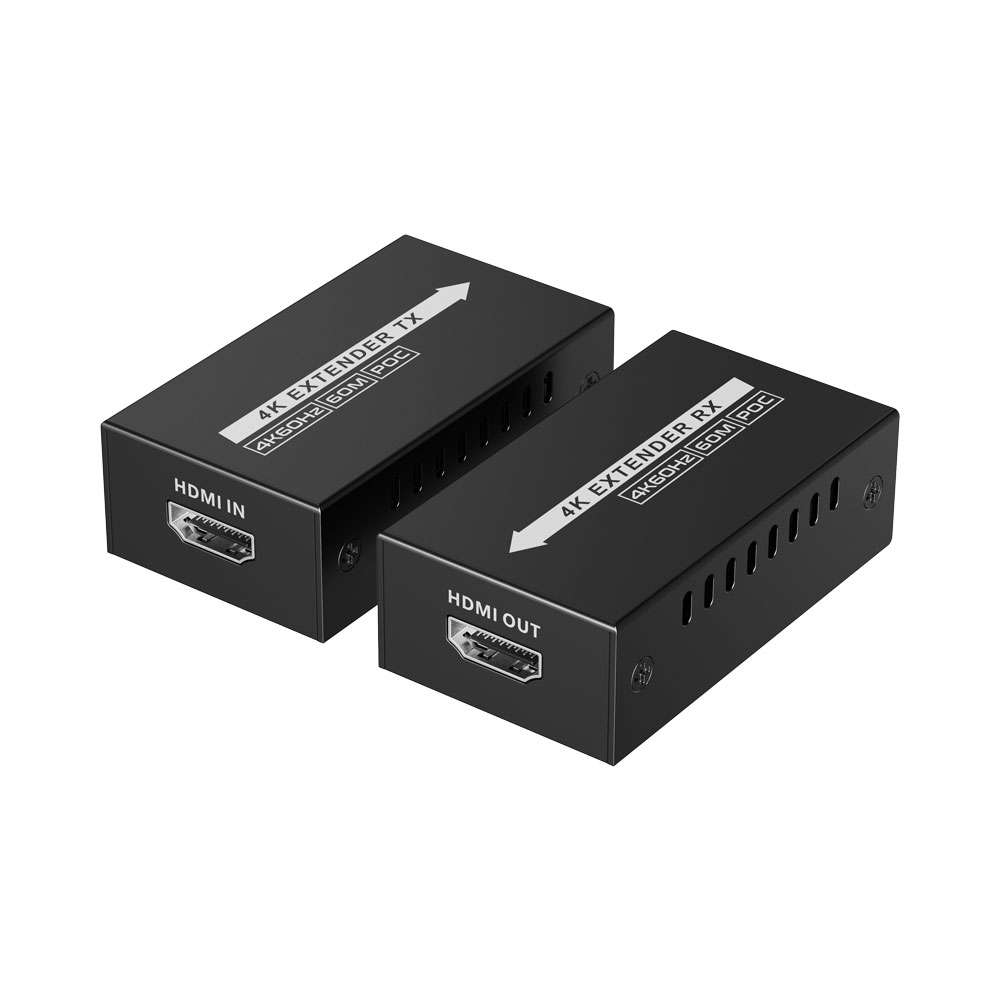

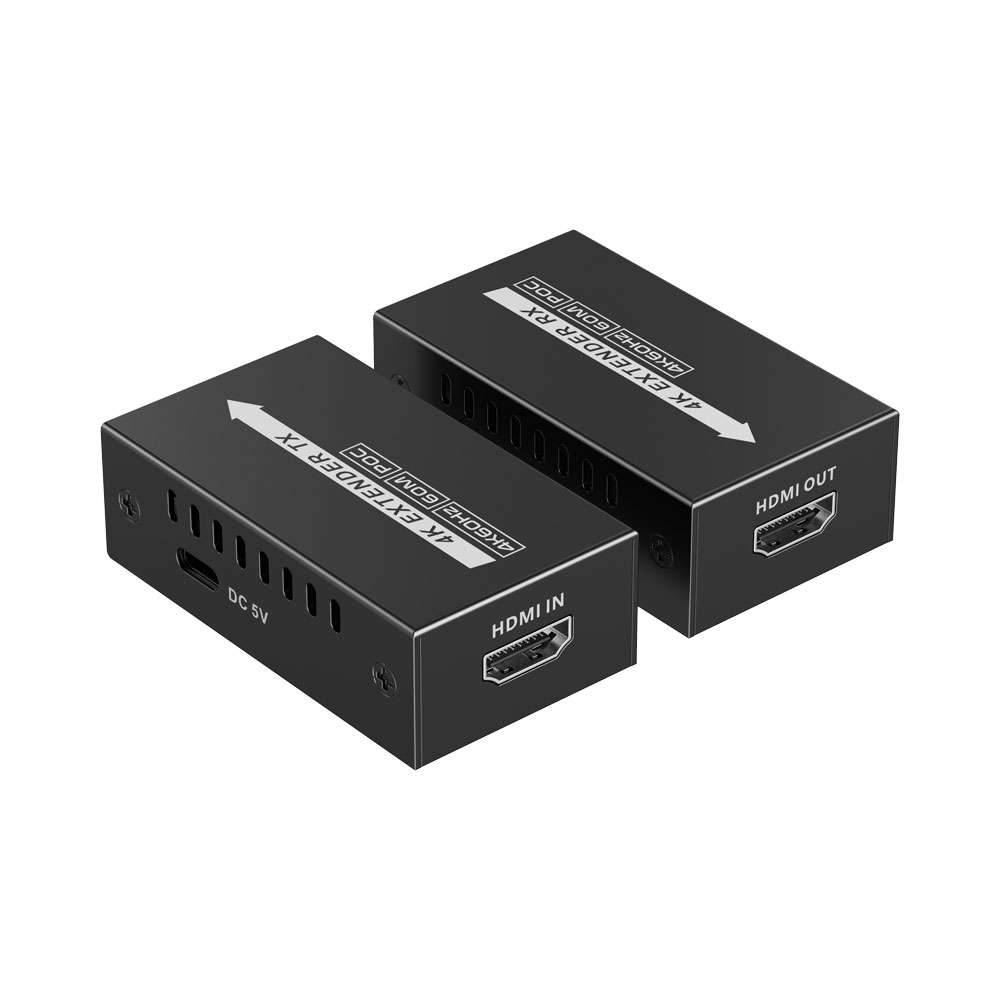

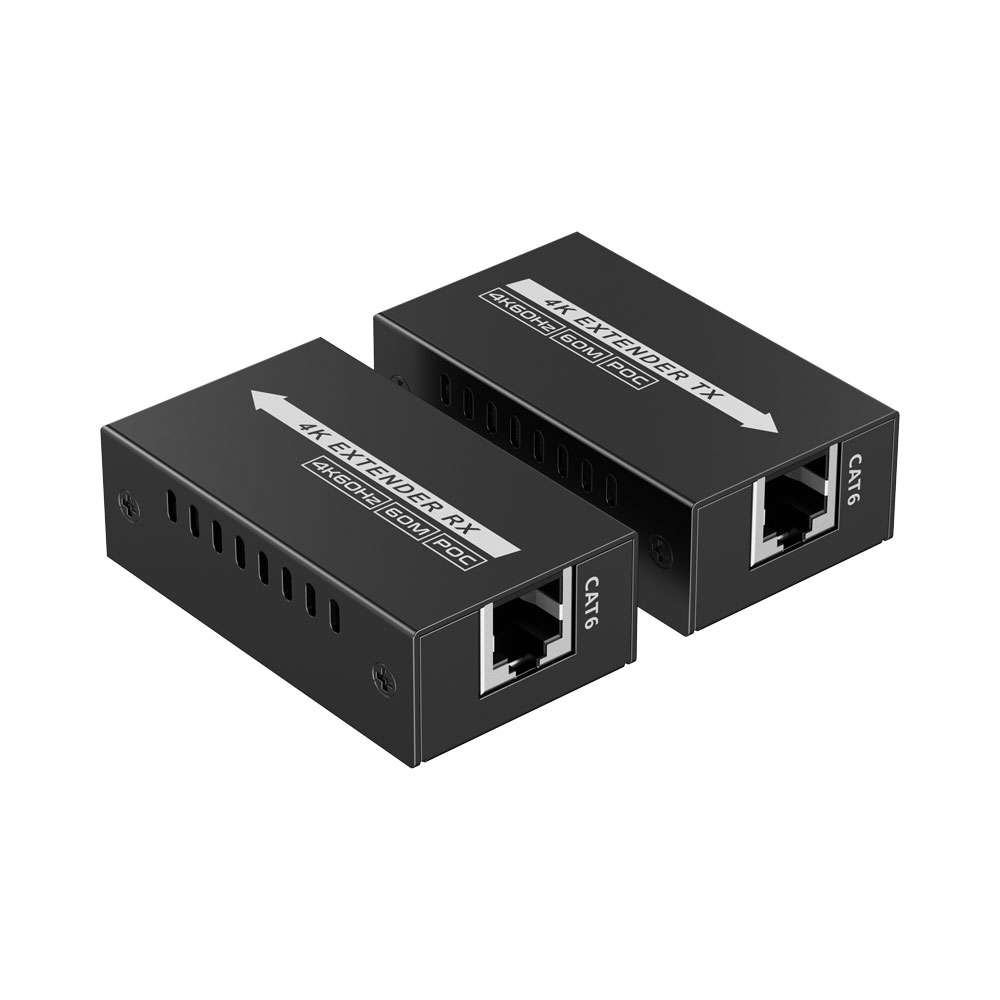

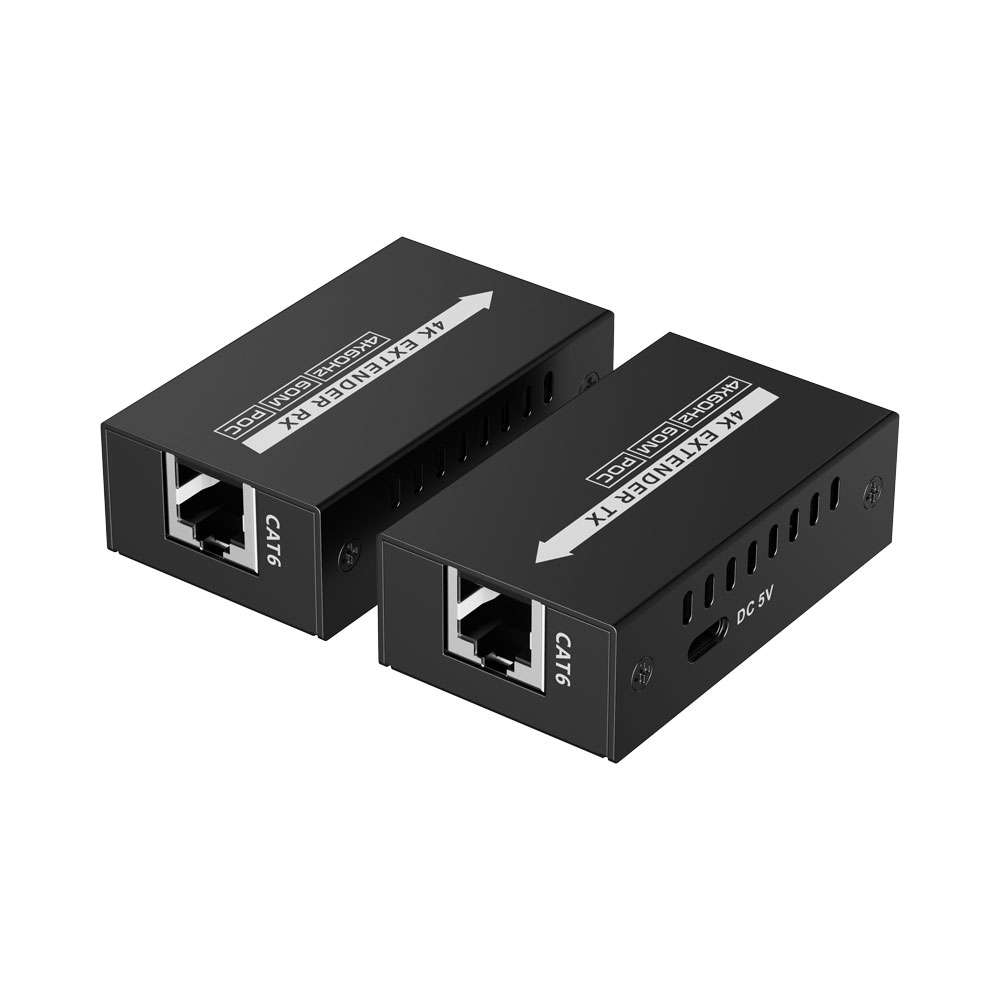

LENKENG LKV410P 60m 4K @60Hz HDMI Mini Extender Over CAT6

Unlock 4K Freedom - Anywhere, Instantly.

The LENKENG LKV410P pushes uncompressed 4K @60Hz HDMI up to 60m over a single CAT6/6A/7 cable - no signal lag, no bulky cables. It handles HDR10, deep colour and full HDCP 2.2 compliance for crisp, vibrant video. Built-in protections against lightning, surge and ESD mean it's reliable and safe. With zero-latency transmission and PoC (Power-over-Cable) support - only the transmitter needs power - it's the clean, plug-and-play solution for home theatres, presentations, gaming rigs or long-run AV setups.

FEATURES

Zero Latency Transmission
Extends 4K @60Hz (3840 × 2160) HDMI up to 60m Over CAT6/6A/7 Cable
Supports HDR10
Supports EDID Passthrough and Auto Downscaling
Lightning, Surge and ESD Protection
Supports PoC Network Cable Power Supply
Only the Transmitter Requires a Power Supply

SPECIFICATIONS

Maximum Transfer Rate: 18Gbps
Maximum Transmission Bandwidth: 600MHz
EDID Passthrough: Yes
Compatibility: HDMI 2.0 (Deep Colour, 4K, HDR, YUV 4:4:4), HDCP 2.2
Supported Resolutions: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz, 3840×2160 @24/25/30/50/60Hz, 4096×2160 @24/25Hz, 1280×960, 1280×800, 1280×768, 1680×1050, 1920×1200, 1360×768, 1366×768, 1600×900, 1024×768, 800×600
Transmission Distance: CAT6/6A/7 60m
Audio Formats: LPCM / DTS 5.1 / Dolby Digital 5.1CH
Power Supply: Transmitter: DC 5V 2A, Receiver: PoC (Powered by Transmitter)
Power Consumption (TX + RX): Less Than 5W
Working Temperature: 20~60°C
Storage Temperature: 30~70°C
Humidity (No Condensation): 0~90% RH
Housing Material: Metal
Weight: Transmitter: 92g, Receiver: 91g
Colour: Black
Dimensions (L × W × H): 67 × 40 × 23mm
Protection: ESD Protection (Contact Discharge ±4kV, Air Discharge ±8kV per IEC61000-4-2 Standard), Lightning Protection, Surge Protection
