LENKENG LKV562PRO 1080p @60Hz 150m Uncompressed HDMI over IP Extender
Send crisp 1080p @60Hz HDMI up to 150m over a single CAT6/6A/7 cable. Perfect for long-range installs, this extender supports One-to-One or One-to-Many setups via a Gigabit switch, with cascading for even bigger systems. Built-in perks include HDMI loop-out, bi-directional IR, RS232 passthrough and HDR10 support - all in a rugged, protected design ideal for security hubs, smart buildings, broadcast setups or pro home theatres.
Extend farther, connect smarter and maintain full HDMI functionality - even over long distances.
FEATURES
Adopting ipcolor PIXEL technology for uncompressed and low latency transmission
Supports up to 1080p @60Hz Resolution
Video signals can travel up to 150m over CAT6 or higher network cable
Supports one-to-many connection through a Gigabit switch or switch cascade
Supports HDR10
Supports EDID pass-back
Supports RS232 passthrough

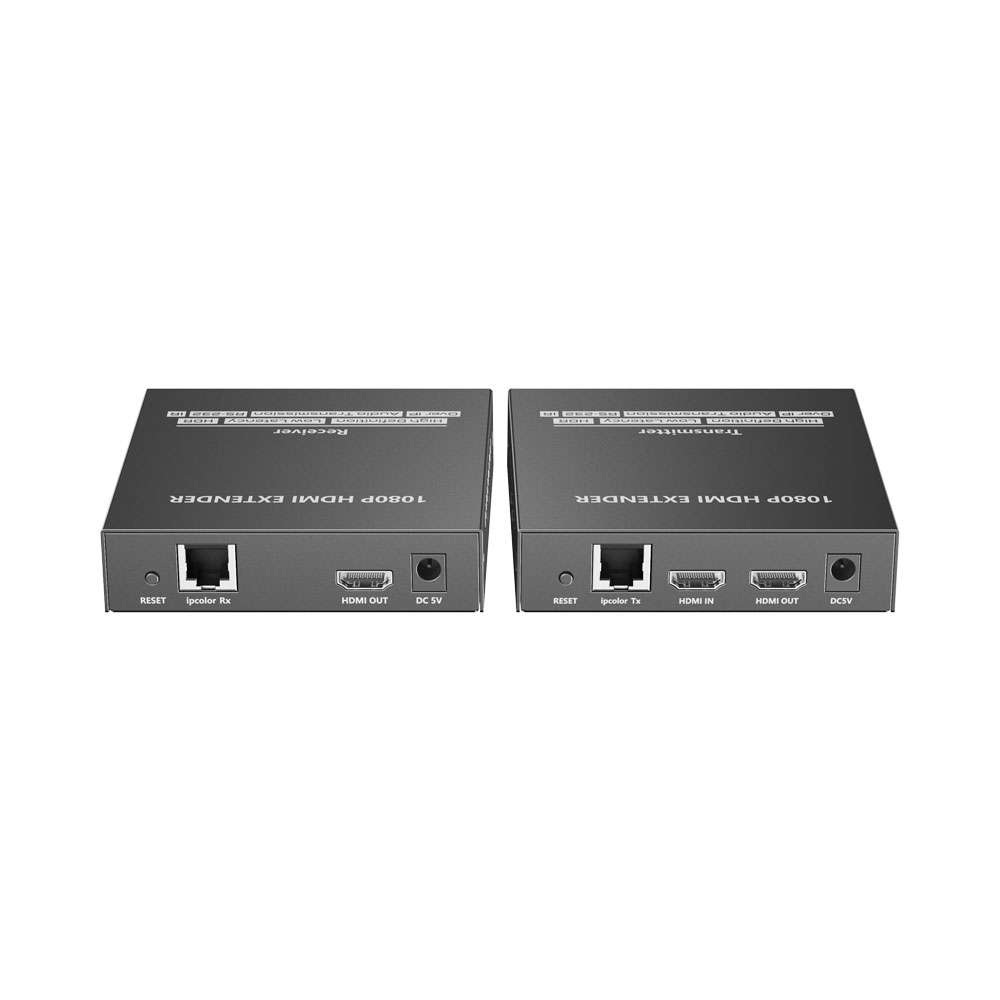

With HDMI loop-out on the transmitter

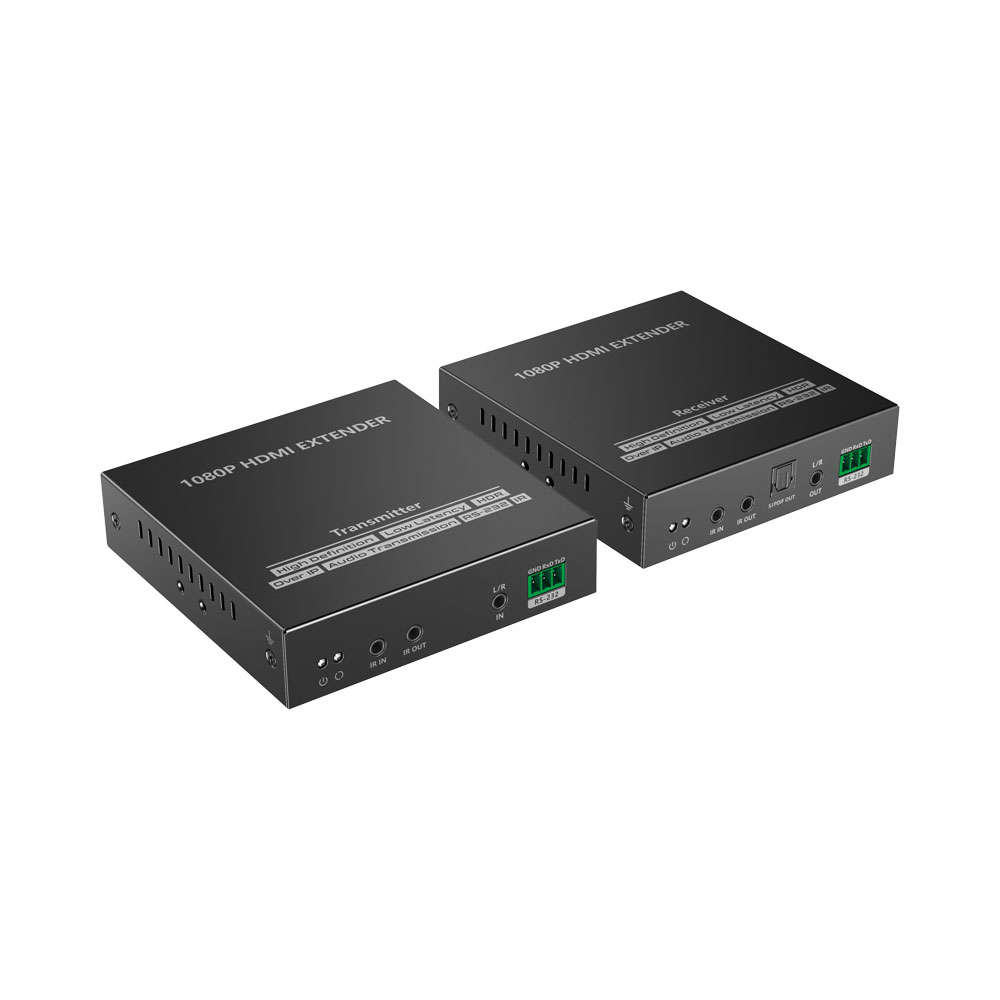

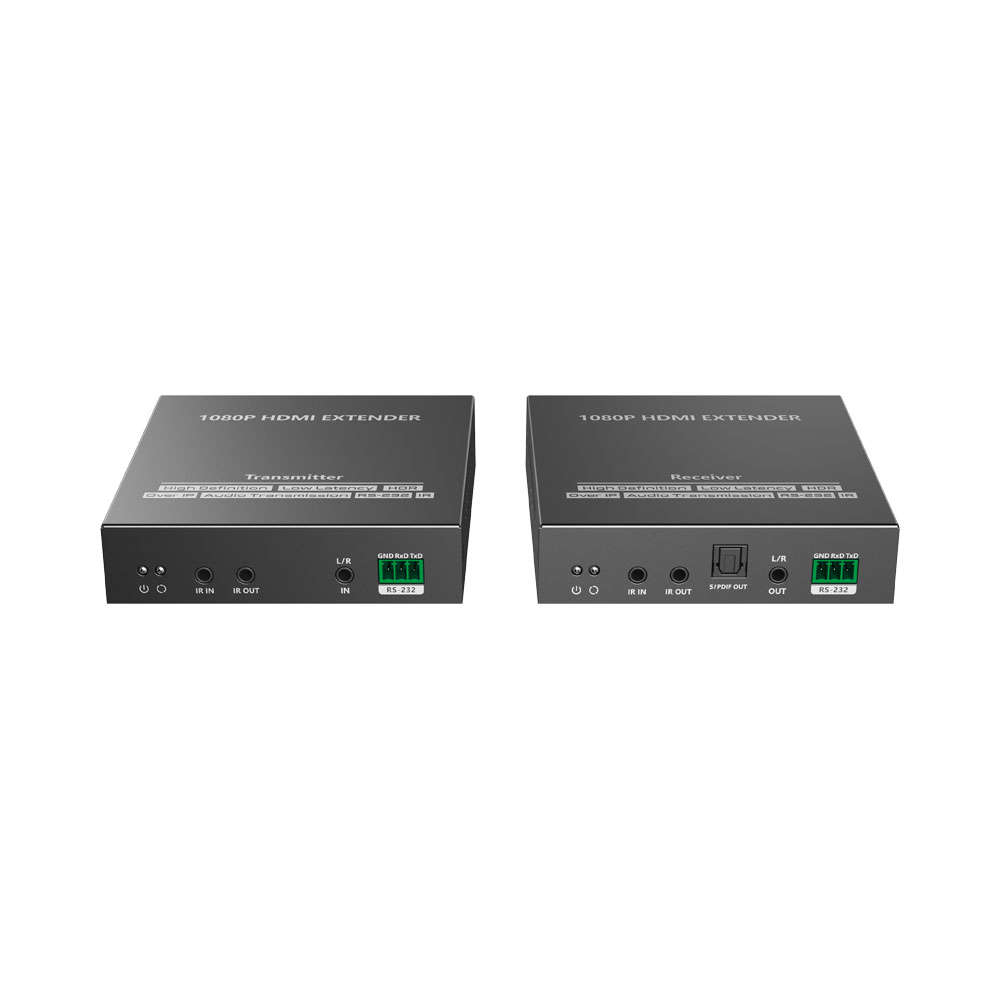

Supports bi-directional IR passthrough
The transmitter has a 3.5mm audio input for sound embedding
The receiver has an independent 3.5mm and S/PDIF audio output
Lightning, Surge and ESD protection
SPECIFICATIONS
HDMI Cable Length: 5m
Compatibility: HDMI 1.4 (HDR10), HDCP 1.4
Supported Resolutions: 1080p @24/25/30/50/60Hz, 720p @50/60Hz, 1024×768 @60Hz, 1280×800 @60Hz, 1280×960 @60Hz, 1280×1024 @60Hz, 1440×900 @60Hz, 1600×900 @60Hz, 1600×1200 @60Hz, 1680×1050 @60Hz, 1920×1200 @60Hz, 480p @60Hz, 576p @50Hz, 1360×768 @60Hz (and other common resolutions)
Connection Types: One-To-One, One-To-Many, Switch Cascading
Transmission Distance: CAT6/6A/7 150m
Transmission Latency: 16ms 33ms
HDMI Audio Output: DTS-Audio / Dolby Digital 5.1 / LPCM 2.0
S/PDIF Audio Output: LPCM 2.0 / DTS-Audio 5.1 / Dolby Digital 5.1
3.5 mm L/R Audio Output: PCM 2.0
Audio Sampling Rates: 32kHz, 44.1kHz, 48kHz, 88kHz, 96kHz, 176kHz, 192kHz
Audio bit Depth: 16-bit, 24-bit
IR Receiving Range: 5m
IR Frequency Range: 20~60kHz
RS232 Support: Standard GND / RxD / TxD, Default Baud Rate ~9600 (Varies By Device)
Power Supply: DC 5V 2A (Typical for TX and RX)
Power Consumption: TX <5W, RX <4W (Approx.)
Working Temperature Range: 20~60°C
Storage Temperature Range: 30~70°C
Humidity (No Condensation): 0~90% RH
Housing Material: Metal
Colour: Black
Dimensions (Approx.): TX and RX 106 × 103 × 25mm each
Protection: ESD Protection (Contact ±4kV / Air ±8kV), Lightning and Surge Protection
