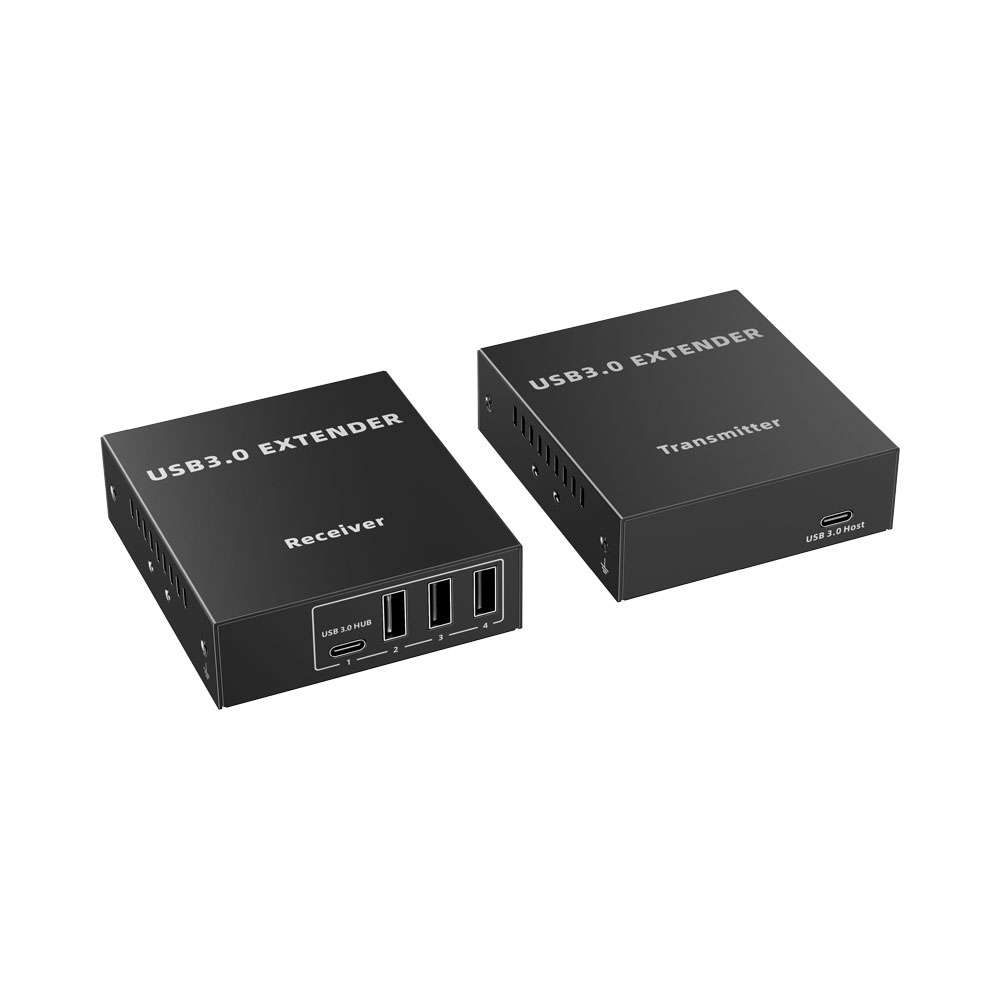

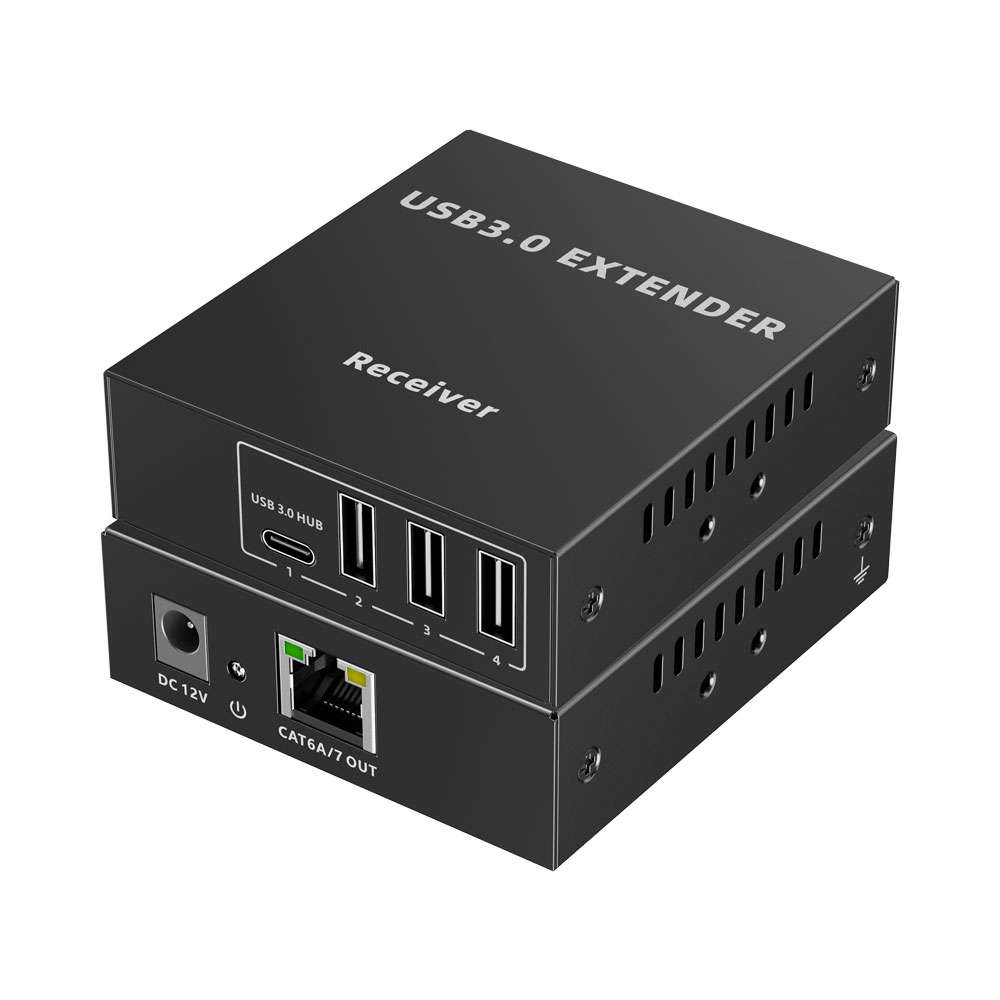

LENKENG LKV300USB 50m 4-Port USB3.0 Extender

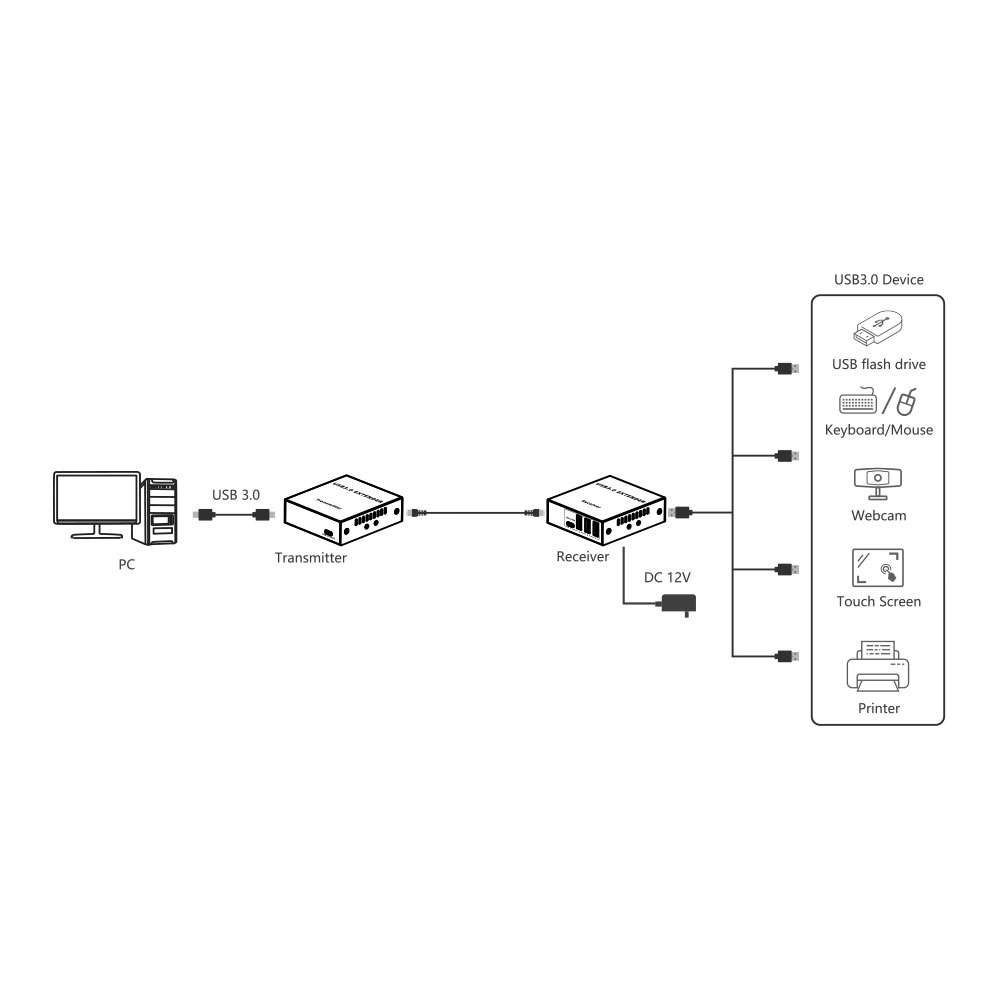

Extend Your USB Devices Across Long Distances - Fast and Reliable

The LKV300USB transforms a single USB port into a powerful, long-range USB hub - extending full USB3.0 connectivity up to 50m over CAT6 (or up to 90m over CAT6A) with 4× downstream ports (3× USB Type-A plus 1× USB Type-C). Smooth 5Gbps data transfer keeps peripherals like external drives, printers, cameras and keyboards performing at top speed even far from your PC. The unit is plug-and-play - no driver installation needed - and draws power from the source, so setup is simple. Built-in robust metal housing with ESD, surge and lightning protection, the extender delivers stable, industrial-grade performance - ideal for offices, server rooms, studios or workstations where remote USB access matters.

FEATURES

3× USB Type-A and 1× USB Type-C
Data Transmission Rate up to 5Gbps
up to 50m Over CAT6
up to 90m Over CAT6A
Powered by Source

SPECIFICATIONS

General / Connectivity
Ports: 3× USB Type-A plus 1× USB Type-C (On Receiver Side)
Data Transmission Rate: up to 5Gbps (USB3.0 SuperSpeed)
Extension medium: Single CAT6 / CAT6A Network Cable
Maximum Extension Distance: up to 50m Over CAT6, up to 90m Over CAT6A
Hot-plug / plug-and-play: Yes - No Driver Needed
Backward Compatibility: Supports USB2.0 and USB1.1 Devices

Power / Supply
Power supply (Receiver): DC 12V 3A
Power Consumption (TX + RX): 8W

Physical and Material
Housing / Material: Metal (Black)
Dimensions (Approx): 85 × 76 × 25mm
Weight: Transmitter 168g, Receiver 178g

Safety and Protection
Built-In Protection: ESD Protection, Lightning Protection, Surge Protection
ESD Specs: Contact Discharge ±4kV, Air Discharge ±8kV (Meets IEC61000-4-2 Standard)
