3x USB 3.2 gen2 (10Gbps, 1x always-on)
2x USB 2.0
1x USB-C port (Data, 5V 3A power)
1x 10/1000 Gigabit Ethernet
2x DP1.2 port
2x HDMI2.0 port
1x Combo Audio jack

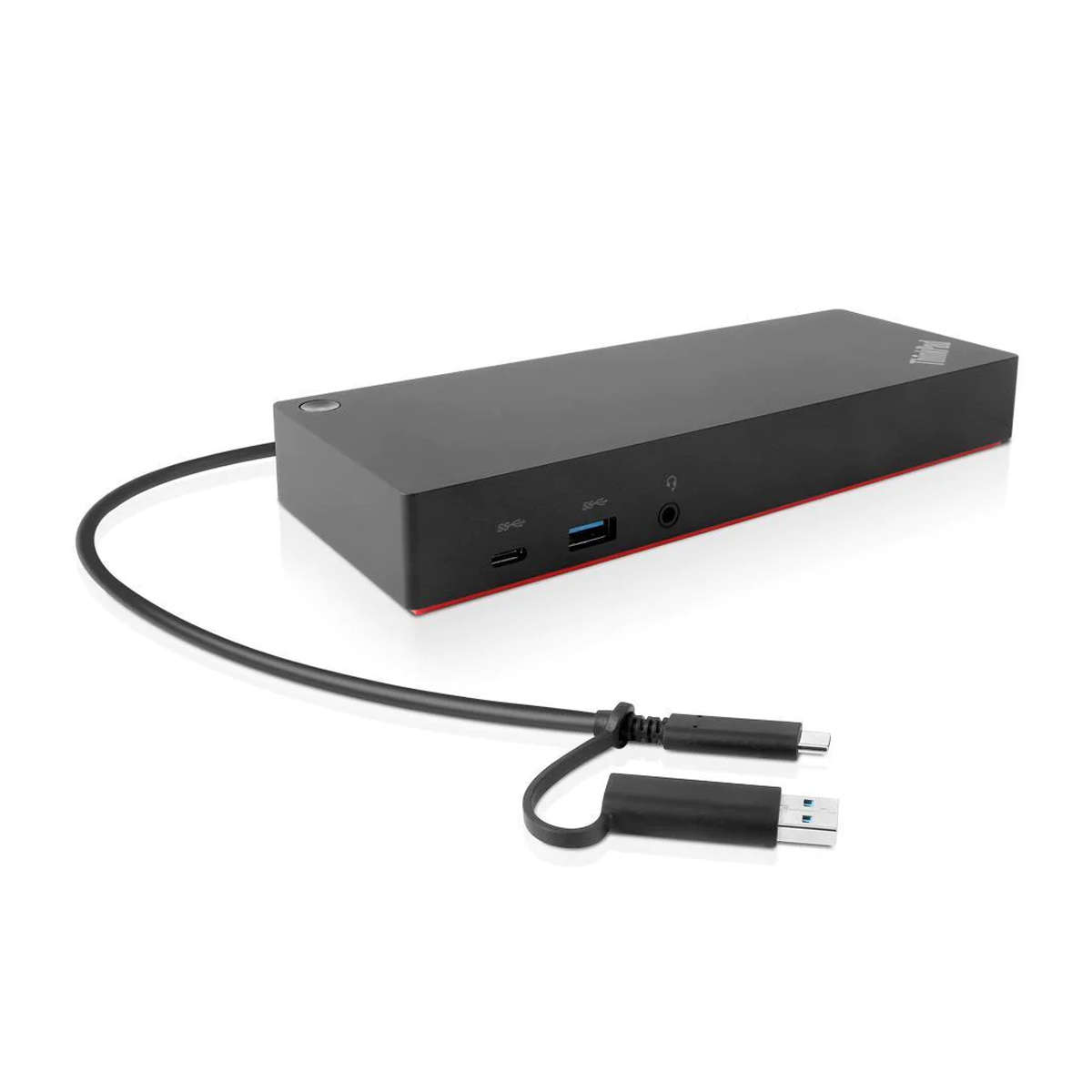

Lenovo ThinkPad Hybrid USB-C with USB-A Dock 40AF0135SA
The ThinkPad Hybrid USB-C with USB-A Dock is a productivity solution for any USB-C or USB-A laptop, including non-Lenovo laptops from Dell, HP, and Apple, providing power, display, and port expansion in any mixed OS environment (Windows 11, macOS 13.0).
Featuring enterprise-class manageability, like PXE boot and MAC address pass-through on select ThinkPad notebooks, the ThinkPad Hybrid USB-C with USB-A Docking Station offers USB port expansion and includes a USB-C to USB-A adapter to provide port replication to non USB-C laptops. This ThinkPad Hybrid Dock also supports dual monitor setups, up to dual UHD 4K resolution, and rapid charging to notebooks.
Features
One dock for all laptops:?Enhances the performance of Lenovo USB-C laptops and tablets?through USB-C connection, as well as previous generation and market?notebooks through the USB-C to USB-A adapter.
Rich performance:?Provides up to dual UHD 4K display with DisplayPort and HDMI?ports. Up to 10 Gbps data transfer speed on three USB 3.2 Gen 2 ports,?and rapid charging for most current ThinkPad family laptops.
Enterprise manageability and simplification:?Host of manageability features like PXE boot, Wake-on-LAN from sleep?mode, and MAC address pass-through. Ideal for enterprise customers.
Technical Specification
Connectivity technology:?Wired
Docking interface:?USB-C cable with USB-C to USB-A dongle
Ports
3x USB 3.2 gen2 (10Gbps, 1x always-on)
2x USB 2.0
1x USB-C port (Data, 5V 3A power)
1x 10/1000 Gigabit Ethernet
2x DP1.2 port
2x HDMI2.0 port
1x Combo Audio jack
Security lock:?Kensington Security lock
Display:?Up to two UHD displays connection via DisplayPort/HDMI?ports
Number of external monitors supported:?2
Maximum Resolution Support/Refresh Rate:?5120 x 2880 pixels @ 60Hz
Brand compatibility:?Lenovo
Power source type:?DC
Power supply:?135 W
Dimensions (W x D x H):?210 x 80 x 30 mm
Product colour:?Black
Weight:?475g
