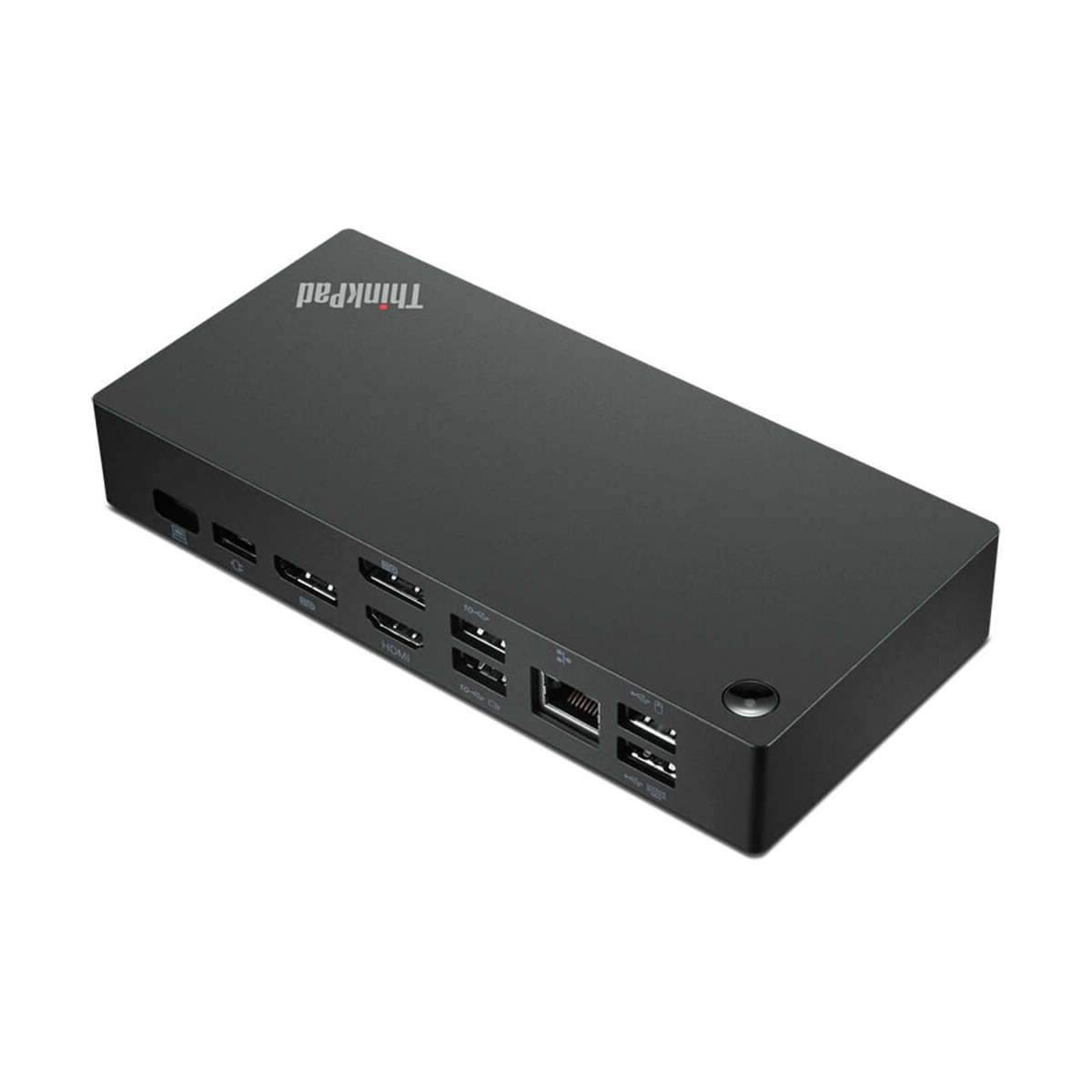

Lenovo ThinkPad Universal USB-C Dock
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information
- ThinkPad Universal USB-C Dock
- 3x USB 3.1 Gen 2 Type-A Ports
- 2x USB 2.0 Type-A Ports
- 1x USB 3.1 Gen 2 Type-C Port
- Gigabit Ethernet And Combo Audio Ports
- 1x HDMI, 2x DisplayPort Outputs
- Supports One 4K Monitor at 60 Hz
- Supports Dual 4K Monitors at 30 Hz
- USB Type-C Host Connector
- Supports Up To 65W of Power Delivery
- OS Independent
- 1 Year Warranty
Lenovo ThinkPad Universal USB-C Dock
The ThinkPad Universal USB-C Dock is a welcome innovation docking that takes users beyond tradition and into the realm of limitless potential. Experience universal compatibility with dynamic power charging max as 100w to notebooks***, Automated firmware updates, Next-level plug-and-play. Everything you'd want from the future of docking is here. It's perfect for mixed PC environments too, giving user's the freedom to connect any USB Type C industry standard Notebooks.
Features:
- One Dock. No Limits: Engineered for performance, the ThinkPad Universal USB-C Dock quickly pays for itself with increased productivity, enhanced dynamic power charging to Notebook, max 100W charging. If you can think it, your dock can do it.
- One Cable. No Hassle: With 11+ thoughtfully placed ports, the ThinkPad Universal USB-C Dock delivers unmatched performance while decluttering your desk.
- Entire Fleet. One Manager: The ThinkPad Universal USB-C Dock comes packed with basic and advanced solutions engineered to make managing an entire fleet of docks effortlessly efficient. It could support traditional IT tools like: PXE boot, WOL, and MAC address Pass Through on ThinkPad Notebooks, but also provide silent firmware updates. Silent reboots. Remote device queries. It's an IT manager's dream.
- Supported by the Lenovo Dock Manager, an advanced solution that automatically manages docking, as well as providing firmware updates, device queries, and analytics on all Lenovo Smart Docks.
| SPECIFICATIONS | |
| Brand | Lenovo |
| Series | ThinkPad Docks |
| Model | 40AY0090SA |
| Video Ports | 2x DisplayPort (DP) |
| 1x HDMI | |
| USB Ports | 3x USB 3.1 |
| 2x USB 2.0 | |
| 1x USB-C | |
| Audio Ports | Combo Audio Jack |
| Ethernet | Gigabit Ethernet |
| Physical Security Feature | Security lock slot |
| Maximum Number of External Monitors | 3 |
| Maximum Resolution and Refresh Rate | 2x at 3840x2160 @60Hz; |
| 1x at 3840x2160 @30Hz | |
| Charging Port | DC-IN |
| Input Power | 90W |
| Power Delivery | Yes |
| Output Power | 65W with 90W power adapter connected;100W with 135W power adapter connected |
| Power Button | Yes |
| Power Plug | Slim-tip |
| Dimensions | |
| Length | 171 mm |
| Depth | 80 mm |
| Height | 31 mm |
| Weight | 340 g |
| Agency Approvals | FCC/ICES; CE; KCC; RCM; BSMI; VCCI; CB; cULus; EAC; TUV- Mark; Serbia Kvalitet; LoA; Israel SII; Ukraine DoC; NOM |
| Warranty Information | |
| Warranty | 1 Year Warranty |
****: DISCLAIMER "Lenovo USB-C & Thunderbolt Docks function with notebooks that support industry standard USB-C Alt-Mode or Thunderbolt protocols through their Type C port. Lenovo USB-C and Thunderbolt Docks support additional features, such as MAC address passthrough, WOL and mirrored power button, on most Lenovo ThinkPad notebooks, but such features may not be available on certain other Lenovo notebooks or non-Lenovo branded notebook systems."
*** ThinkPad Universal USB-C Dock could charge Notebook max as 100W with ThinkPad 135W AC Adapter (Slim Tip), available separately, connected to Dock.
