Leopard 60A ESC is high performance 1/10 Scale Brushless Motor Electronic Speed Control.
The speed controller is specially designed to offer high power and high efficiency combined with low weight and compact dimensions.

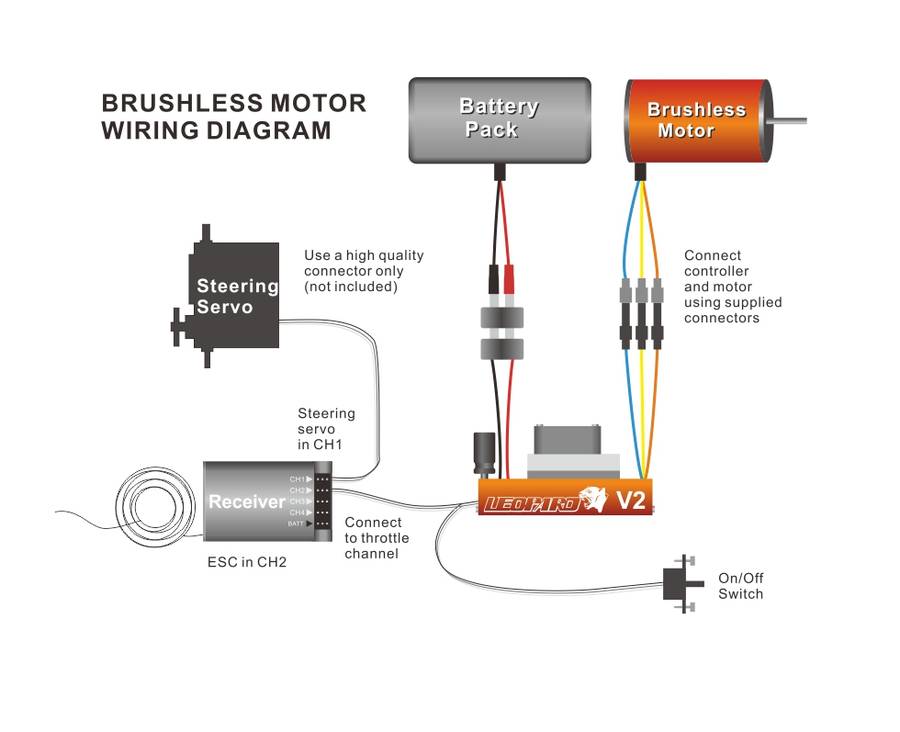

Connections:
Controls, Leopard 60A ESC V2 | Fwd/Brk or Fwd/Bra/Rev |
Input Power (Cells) | 2-3S LiPo,4-8S NiCd/NiMh |
On Resistance, Brushless | 0.001 Ohms per phase |
Continuous/Burst Current | 60Amp/90Amp |
Linear BEC | 5V 2Amp |
Input Power (Cells) 2S LiPo 3S LiPo | Motor Limits On Road:¿9.0T Off Road:¿10.0T On Road:¿10.0T Off Road:¿13.0T |
Thermal Overload Protection | Yes |
Dimensions(L*W*H) | 51.6*30*27.4mm(2.03*1.18*1.08in) |
Weight(With wires) | 78g(2.75oz) |
