LG SXGA (1280x1024) touchscreen monitor allows you to operate efficiently with your fingertips, enhancing work productivity and comfort. Plus, you can enjoy realistic videos with less screen stuttering, thanks to the fast 5ms response time.
Product Overview

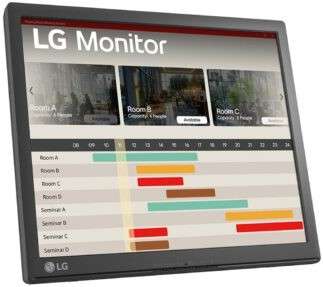

The LG 17" SXGA Touchscreen Monitor features a 1280x1024 TN display with a 5:4 aspect ratio, offering a touchscreen interface for enhanced productivity and comfort. It includes built-in power, Smart Energy Saving, and a tilt-adjustable stand for ergonomic use, along with a fast 5ms response time for smooth video playback. With a range of connectivity options and anti-glare treatment, it provides a versatile and efficient workspace solution.
Specifications
Product Code: 17BR30T-B.AFB
Decription: LG 17-inch SXGA Touch Monitor
Display Size (Inch): 17
Size (cm): 43.18 cm
Resolution: 1280 x 1024
Panel Type: TN
Aspect Ratio: 5:4
Pixel Pitch [mm]: 0.264 x 0.264
Brightness (Min.) [cd/m ] : 150 cd/m
Brightness (Typ.) [cd/m ]: 200 cd/m
Color Gamut (Typ.): NTSC 72%(CIE1931)
Color Depth (Number of Colors): 16.7M
Color Bit: 8bit
Contrast Ratio (Min.): 600:1
Contrast Ratio (Typ.): 1000:1
Response Time: 5ms (On/Off, Not Support OD)
Viewing Angle (CR 10): 170 (R/L), 160 (U/D)
Surface Treatment: Anti-Glare
Features Picture Mode: Reader Mode
Reader Mode: YES
Smart Energy Saving: YES
OSD Language: 18 countries (English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Portuguese(brazil), Polish, Russian, Greek, Ukrainian, Chinese, Traditional Chinese, Japanese, Korean, Hindi)
Others (Feature): Single Point Touch
Connectivity D-Sub: YES(1ea)
D-Sub (V Frequency): 56~75HZ
D-Sub (Max. Resolution at Hz): 1280 x 1024 at 75Hz
USB Upstream Port(USB-B): 1x USB2.0
Power Type: Built-in Power
AC Input: 100~240V (50/60Hz)
DC Output: 28W(19V,1.6A)
Power Consumption (On-Mode): 16W
Power Consumption (On-Mode) (ErP): 12W
Power Consumption (Sleep Mode): Less than 0.3W
Power Consumption (DC Off): Less than 0.3W
Mechanical Borderless Design: Normal
Color (Front Cabinet): Black - Non Glossy
Color (Middle Cabinet): Black - Non Glossy
Color (Back Cover): Black - Non Glossy
Color (Stand Body): Black - Non Glossy
Color (Stand Base): Black - Non Glossy
Display Position Adjustments: Tilt
Tilt: +15 ( 3 )~66 ( 3 )
Wall Mountable [mm]: 75 x 75 mm
Pallet Stuffing (20ft/40ft/40ft HC): 936/2028/2028
Accessory Power Cord: YES
Power Cord (Color/Length): Black / 1.5m
D-Sub: YES
D-Sub (Color/Length): Black / 1.5m
USB A to B: YES
USB A to B (Color/Length): Black / 1.8m
Standard TUV-Type: YES
CB: YES
UL (cUL): YES
FCC-B: YES
Erp: YES
CE: YES
BIS (for India): Depends on PDR
VCCI (for Japan): Depends on PDR
BSMI (for Taiwan): Depends on PDR
KC (for Rep. of Korea):Depends on PDR
CCC (for China): Depends on PDR
Others (Standard): Win10
