PROJECTION SYSTEM
Native ResolutionHD(1280x720)Brightness (Lumen, lm)*130
Contrast Ratio (Full On Full Off)100,000:1Noise - High Brightness29 dB(A)
Noise - Normal25 dB(A) Noise - Economic22 dB(A)
Uniformorty(JBMMA 9point)80% Projection Lens - FocusManual
Projection Lens - ZoomFixedProjection Image - Screen Size10 ~ 100
Projection Image - Standard (lens to wall)[email protected] Image - Throw Ratio1.57
Projection Offset100%Light source - TypeRGB LED
Light source - Life High Brightness30,000 Hrs
GENERAL SPECIFICATION
Menu LanguageKorean / English / L-Spanish / / Brazilian Portuguese / Spanish / French / German / Italian / Polish / Portuguese / Russian / Turkish / Slovenian / Bulgarian / Croatian / Hungarian / Czech / Romania / Dutch / Japanese / Indonesian / Italian / Arabic / Taiwanese / Hindi / Chinese SimplifiedAspect Ratio Control4:3/Just scan/Set by Pro./ 16:9/Cinema Zoom/
Sound - Output1W monoSound - Dolby Surround AudioYes
Sound - Clear VoiceYes (Clear Voice ll)BatteryBuilt-in type (up to 2.5H)
Net Size (mm) (W x D x H)115 x 115 x 44.3Net Weight (kg or g)460g
Gross size (mm) (W x D x H)342 x 132x 95Gross Weight (kg or g)1.15kg
Power Consumption (Max.)32WStand-by Power<0.5W
Power SupplyAdapter (100V 240V @ 50~60 Hz)Operation Temperature0 ~ 40
Input Signal Compatibility/Digital(HDMI)1080p/1080i/720p/480p/576p

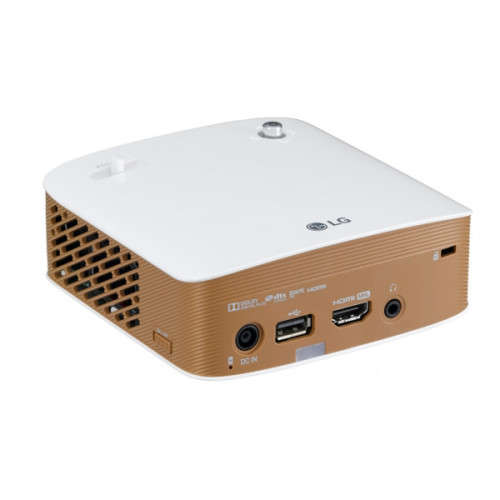

INPUT/OUTPUT TERMINALS
Audio Out1 (3.5)HDMI1 (MHL)
USB1 (Type A)
MAIN FEATURES
Wireless MirroringScreen ShareWired Mirroring (Cable sold separately) - MHLYes
Wired Mirroring (Cable sold separately) - Apple Digital AV AdapterYesWired Mirroring (Cable sold separately) - SlimportYes
Bluetooth Sound outYesPlug & Play(RGB/DVI/HDMI Auto Source Detection)Yes
USB Host (Movie, Music, Photo)Yes (HD DivX)File(Office) ViewerYes
Digital Keystone CorrectionYes(Vertical)Auto KeystoneYes(Vertical)
Eco Function - Energy Saving ModeYes (Min/Mid/Max)Eco Function - Sleep TimerYes
Eco Function - Auto Off / Auto SleepYesEco Function - Automatic Standby / Auto Power OffYes
ADDED FEATURES
Quick(Instant) Power on/offYes (on 10 Sec off 2 Sec)Store ModeYes
BlankYes(Blue, Green)Image FlipYes (Horizontal/Vertical)
Black Level ControlYesColor Temperature AdjustmentYes
Expert controlvADJYesGamma CorrectionYes
Noise ReductionYesSelf DiagnosisYes
DESIGN
Cabinet ColorFront / Side / Back Brown Top / Bottom WhiteLocal KeyJoystick
Kensington LockYesTripod hole (for Tripod, Ceiling mount)Yes
ACCESSORY
Manual (Full or Simple Book)Simple Book (Japan : Full Book)Quick User Guide (Quick Set-up Guide)Yes
Warranty CardYesCable - Adaptor1

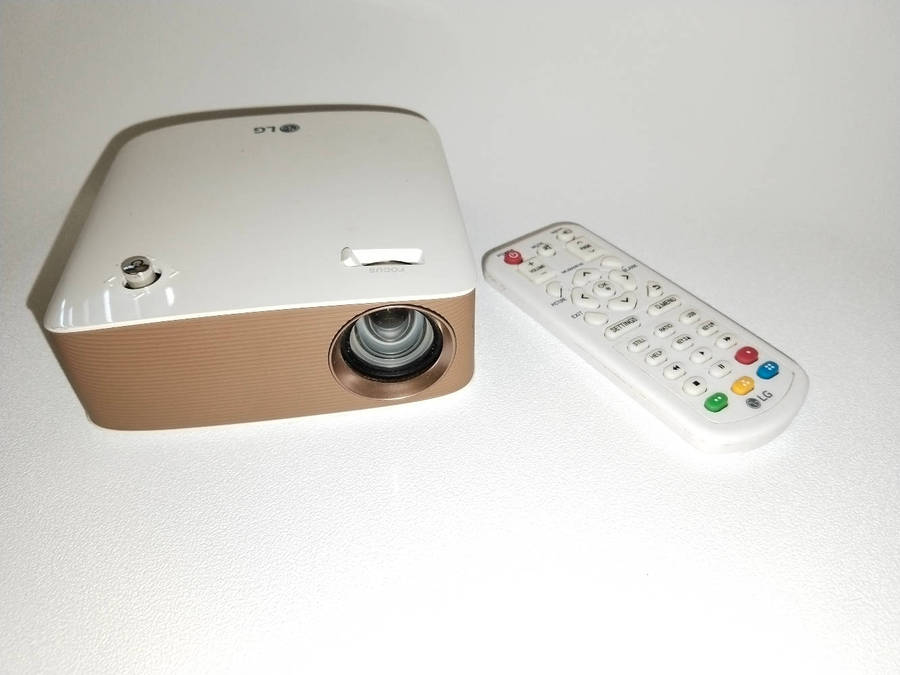

Cable - Power cord1Remote ControlRemote Control (Card Type) + Battery
Conformances(Regulation)CE/CB,VCCI, JATE , Chinese
