Li-ion 18650 Battery Capacity Meter 6s 25.2V LOCAL STOCK

Name: Li-ion 18650 Battery Capacity Meter 6s 25.2V **LOCAL STOCK**
SKU: MET238
Price: 38.00 ZAR
Availability: InStock

4 available / new

Only 4 left – grab it before it’s gone!

R38.00

Add to watchlist Watch

Shipping

Free shipping is available from Diy Select - Cape Town for all orders above R2,000.00, using one of our trusted couriers.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Diy Select - Cape Town8499

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Product details

Condition

New

Location

South Africa

Product code

MET238

Bob Shop ID

645304406

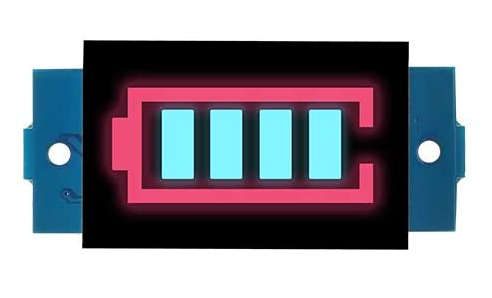

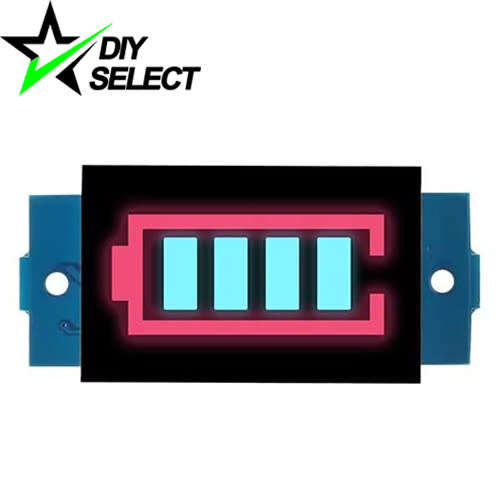

Meter Battery 18650 6s 25.2V:

Specifications:

Max Voltage: 25.2V
Display Colour: Blue/Red
Size: 43 x 20 x 8mm

These modules provide a quick visual reference of the charge status (capacity) of 18650 Lithium-ion batteries, as well as other lithium batteries with a maximum voltage of 4.2 volts per cell. Max total combined voltage 25.2V.

This battery capacity display module is perfect for DIY power supplies, battery chargers, RC and electric vehicles, to provide quick and easy-to-read voltage status of the battery.

Simply connect the module to the positive and negative connections of your battery or battery pack, and the charge status of the battery is displayed in real time using a visual bar display.

The display outline color is red, and the display bars are blue.

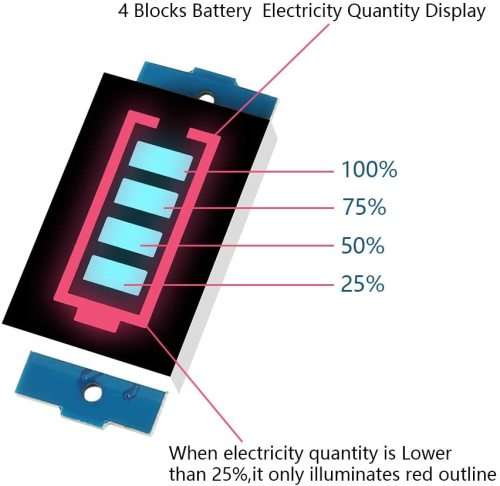

Electricity Quantity Parameter:

1. When battery voltage is between 20.1 - 21.2V, it will illuminate 1 bar.
2. When battery voltage is between 21.3 - 22.4V, it will illuminate 2 bars.
3. When battery voltage is between 22.5 - 23.6V, it will illuminate 3 bars.
4. When battery voltage is between 23.7 - 25.2V, it will illuminate 4 bars.
5. When battery voltage is less than 20V, all bars will be off. This Means battery capacity is less than 20V, and it should be charged.
