Li-ion 18650 Battery Meter 3s 12.6V **LOCAL STOCK**
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Meter Battery 18650 3s 12.6V:
Category: 1100312645 / 1112312645 - Battery 18650
| Free combined shipping for additional orders placed in our new store "DIY SELECT" https://bidorbuy.co.za/seller/4397469 |
Specifications:
Voltage: 12.6V
Display Colour: Blue/Red
Size: 43 x 20 x 8mm

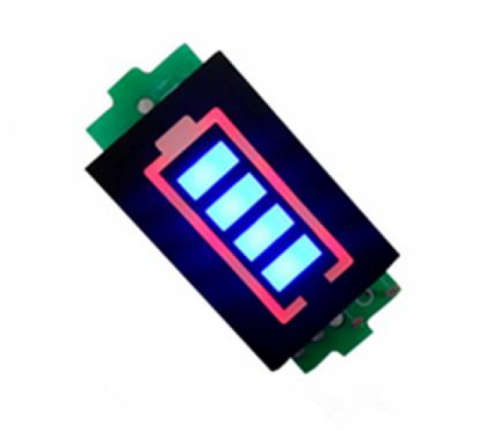

These modules provide a quick visual reference of the charge status (capacity) of 18650 Lithium-ion batteries, as well as other lithium batteries with a maximum voltage of 4.2 volts per cell. Max total combined voltage 12.6V.
This battery capacity display module is perfect for DIY power supplies, battery chargers, RC and electric vehicles, to provide quick and easy-to-read voltage status of the battery.
Simply connect the module to the positive and negative connections of your battery or battery pack, and the charge status of the battery is displayed in real time using a visual bar display.
The display outline color is red, and the display bars are blue.

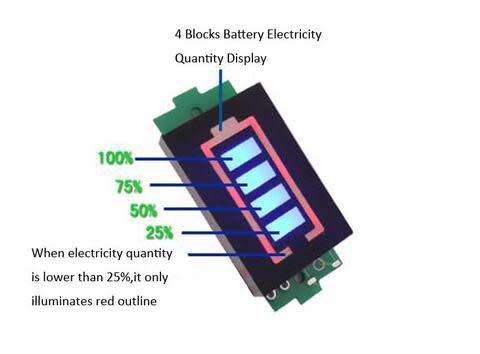

Electricity Quantity Parameter:
1. When battery voltage is between 10.3 - 10.8V, it will illuminate 1 bar.
2. When battery voltage is between 10.9 - 11.4V, it will illuminate 2 bars.
3. When battery voltage is between 11.5 - 12V, it will illuminate 3 bars.
4. When battery voltage is between 12.1 - 12.6V, it will illuminate 4 bars.
5. When battery voltage is less than 10.2V, all bars will be off. This Means battery capacity is less than 10.2V, and it should be charged.
