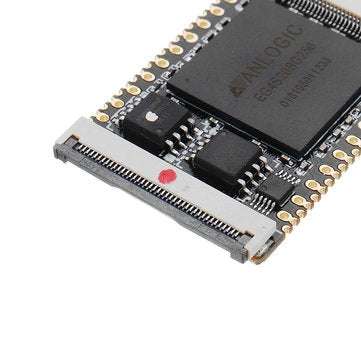

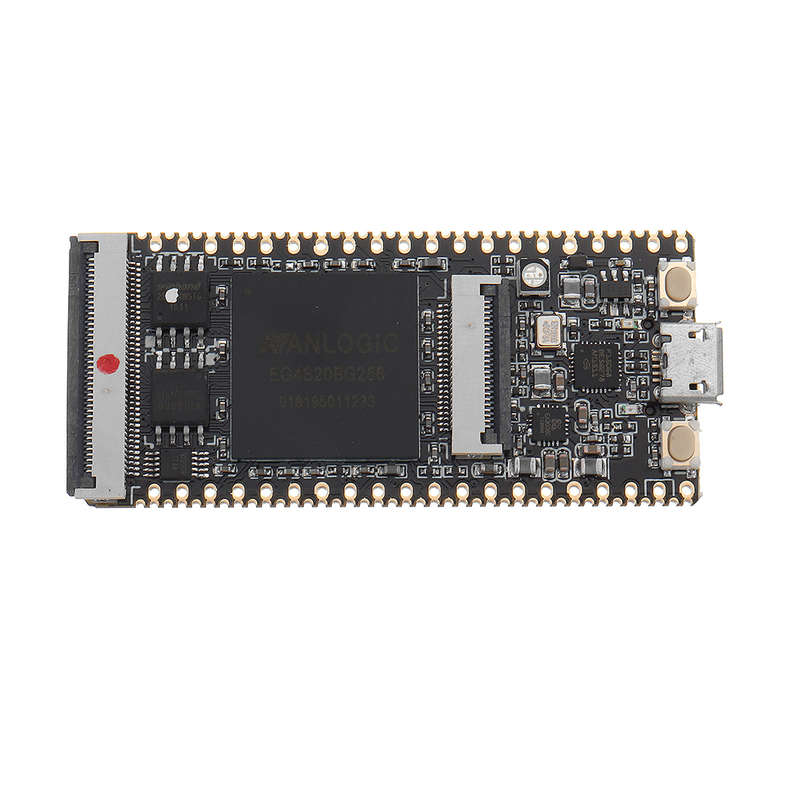

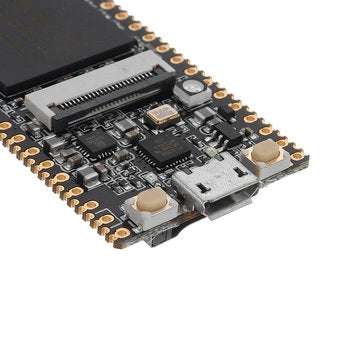

Lichee Tang 64Mbit SDRAM Onboard FPGA Downloader Dual Flash RISC-V Development Board

(aclick for more info.)

Description:

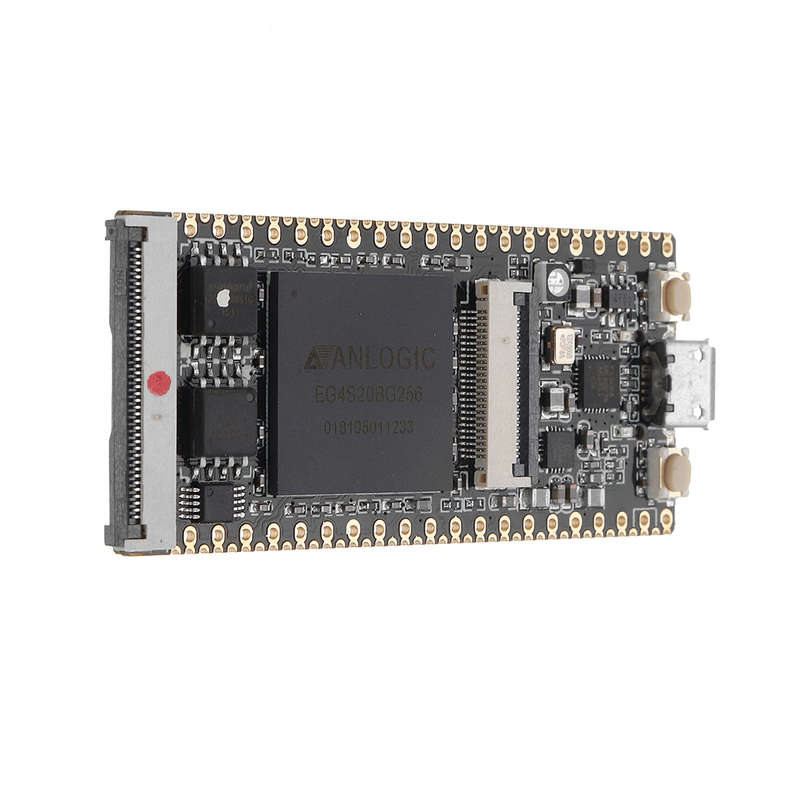

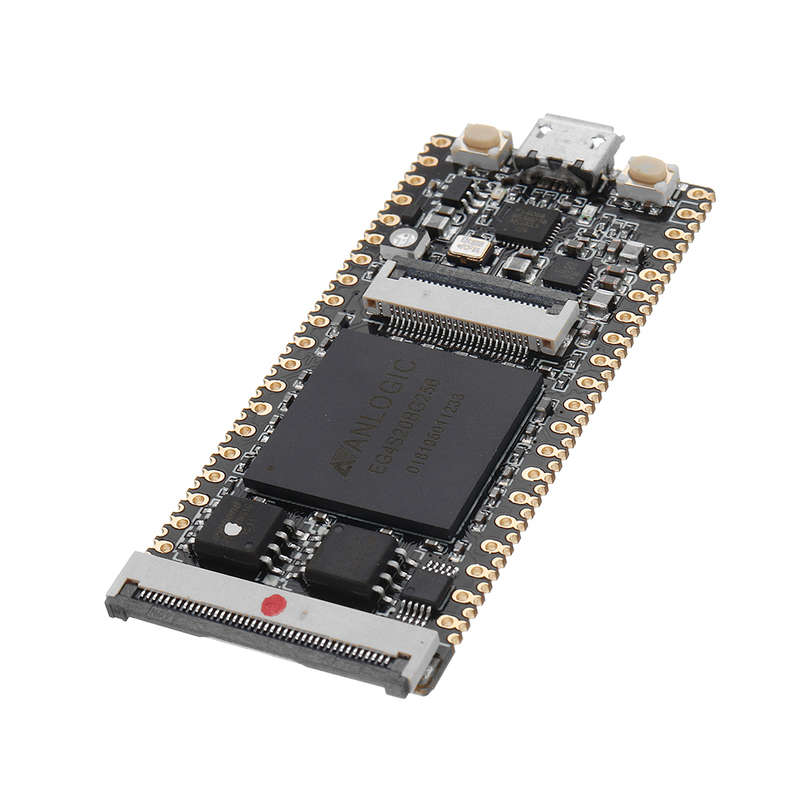

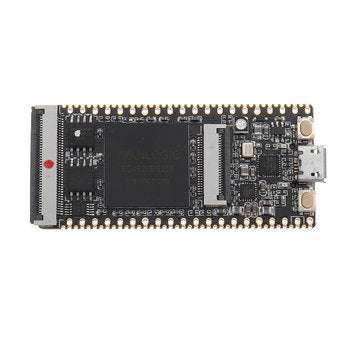

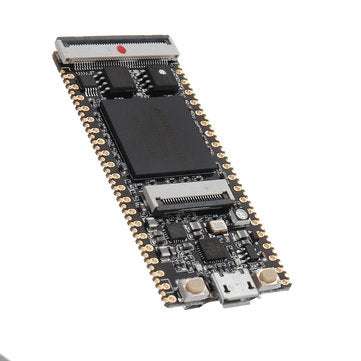

Lichee Tanguses Anlogic Technologies' EG4S20 as the core unit, 20K logic unit (LUT4/LUT5 hybrid architecture), approximately 130KB SRAM, built-in 32bit bit width 64MBit SDRAM, rich LVDS pin, built-in 12-bit 1MSPS ADC.

- FPC40P, can be connected to RGB LCD, VGA adapter board, high speed DAC module - FPC24P, can be connected to DVP camera, high speed ADC module - Support resistive touch screen controller for I2C interface, used with RGB LCD
- 3-channel DCDC power supply chip, stable and efficient power supply, independent adjustment of Bank0 IO level - FPGA configuration Flash, 8Mbit - User Flash, nor/nand optional - Onboard FPGA JTAG Download Debugger - RGB LED

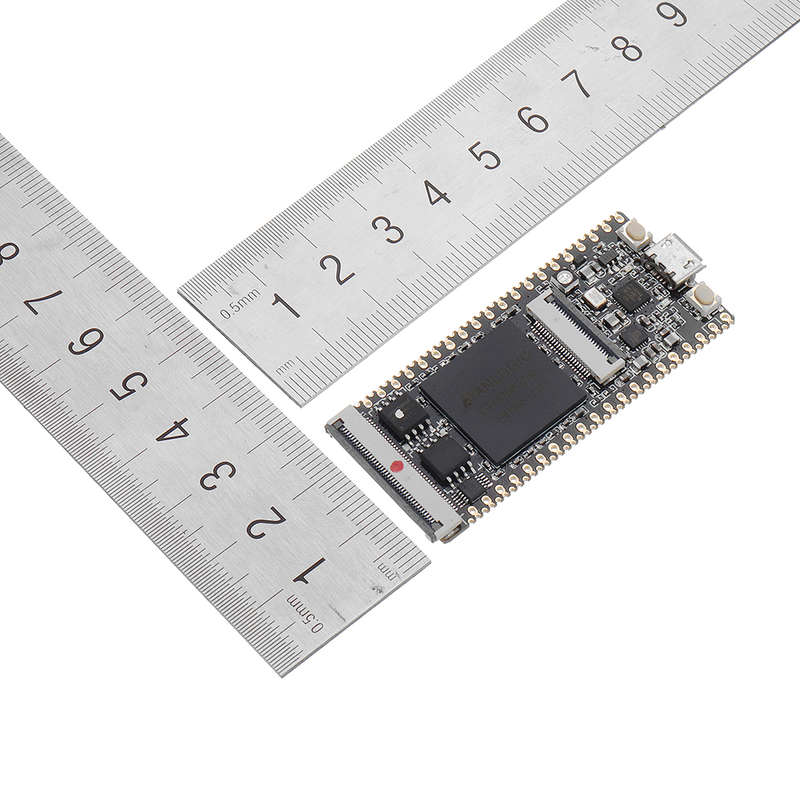

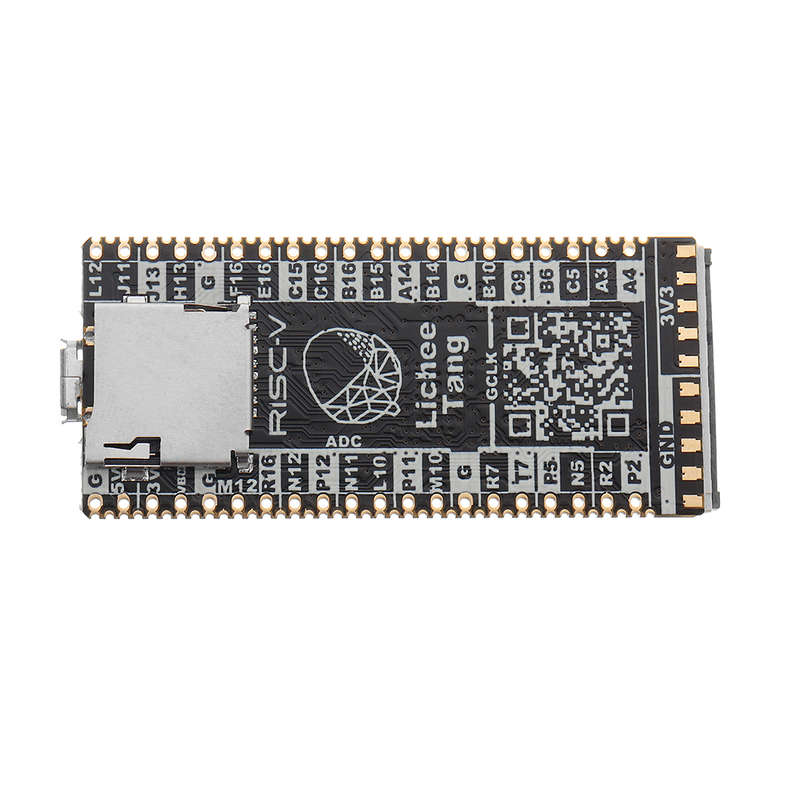

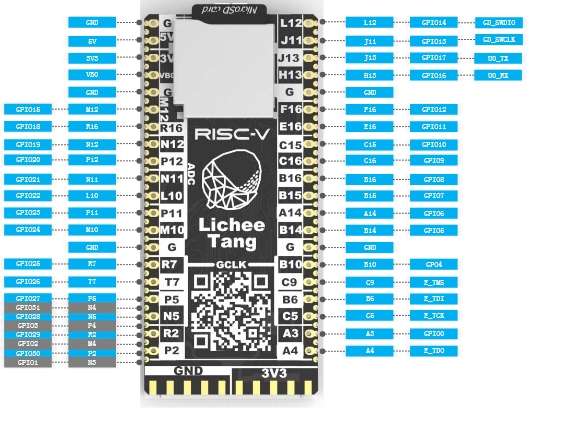

- Dual row pin spacing 900mil, compatible with breadboard development. - The half hole leads to an additional 40 IO and the entire board leads to 130+ IO.

Reference info. (Can click for more detail):

1.
2.
3. 4.

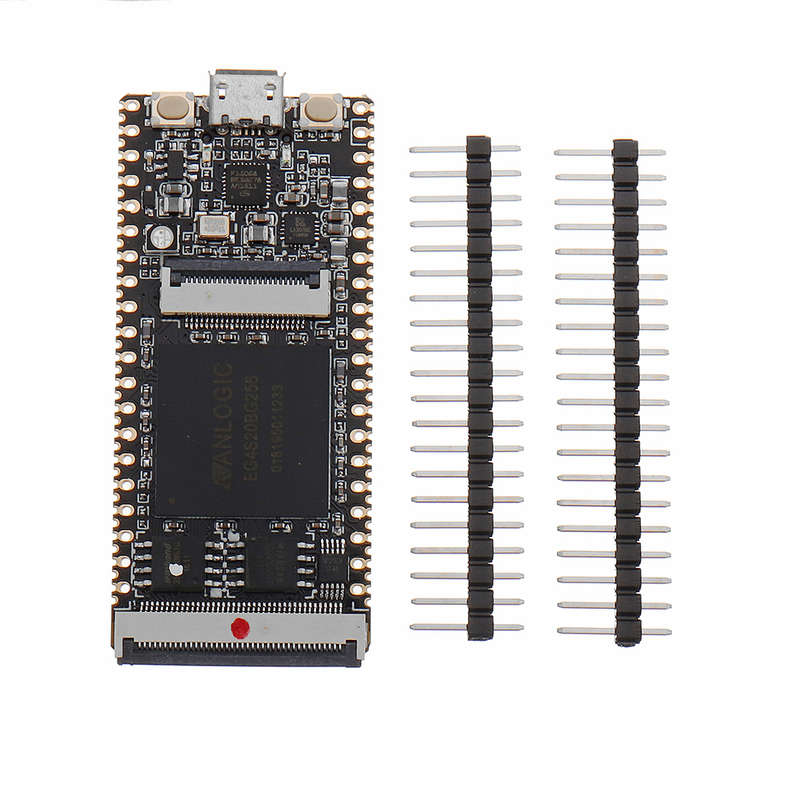

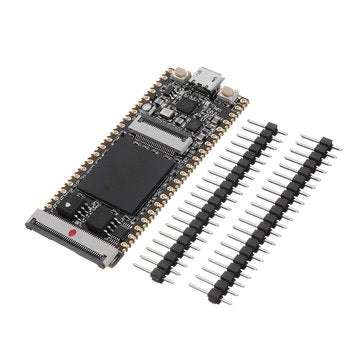

Package Included:

1x Lichee Tang board

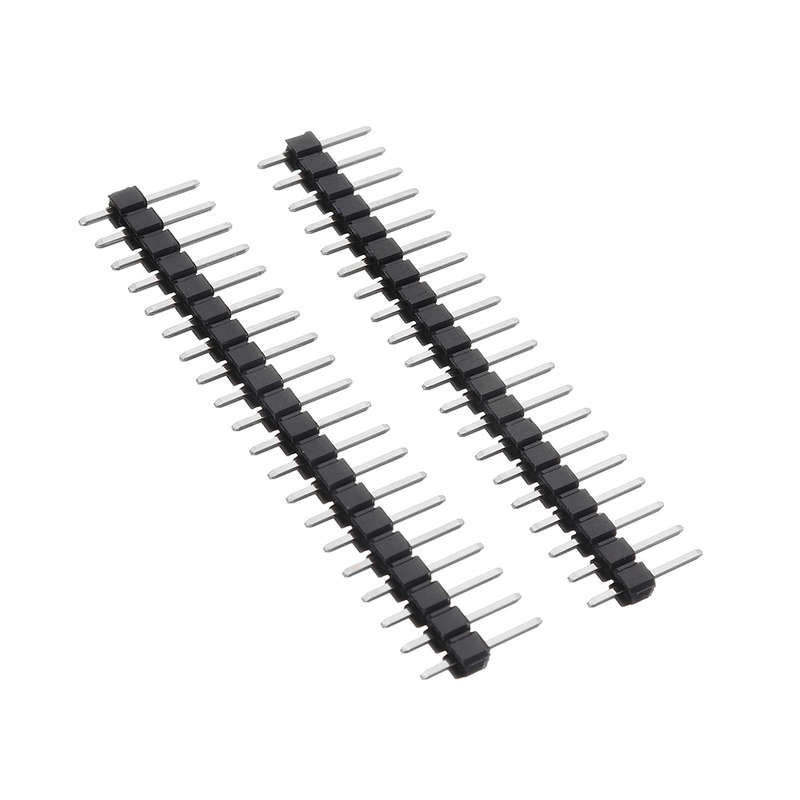

2x Pins
