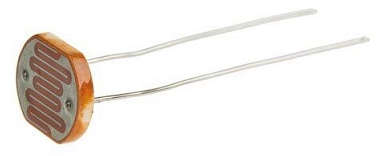

5mm Light Dependent Photoresistor 5mm GL5528.

Photoconductive cells are sensors that allow you to detect light. They are small, inexpensive, low-power, easy to use and
don't wear out. Theys are are often referred to as CdS cells (they are made of Cadmium-Sulfide), light-dependent resistors
(LDR), and photoresistors. whose resistance decreases with increasing incident light intensity. In other words when it is dark
it has a high electrical resistance and when it is light it has a low electrical resistance.

Epoxy encapsulated
Quick response
Small size
High sensitivity
Reliable performance
Good characteristic of spectrum

Light Resistance at 10Lux (at 25ºC)8 ~ 20KΩ
Dark Resistance at 0 Lux1.0MΩ (Min)
Gamma value at 100-10Lux0.7
Power Dissipation (at 25ºC)100mW
Max Voltage (at 25ºC)150V
Spectral Response peak (at 25ºC)540nm
Ambient Temperature Range-30 ~ +70ºC















This item is available in stock and is not drop shipped. This avoids delays, customs charges and extra VAT.
