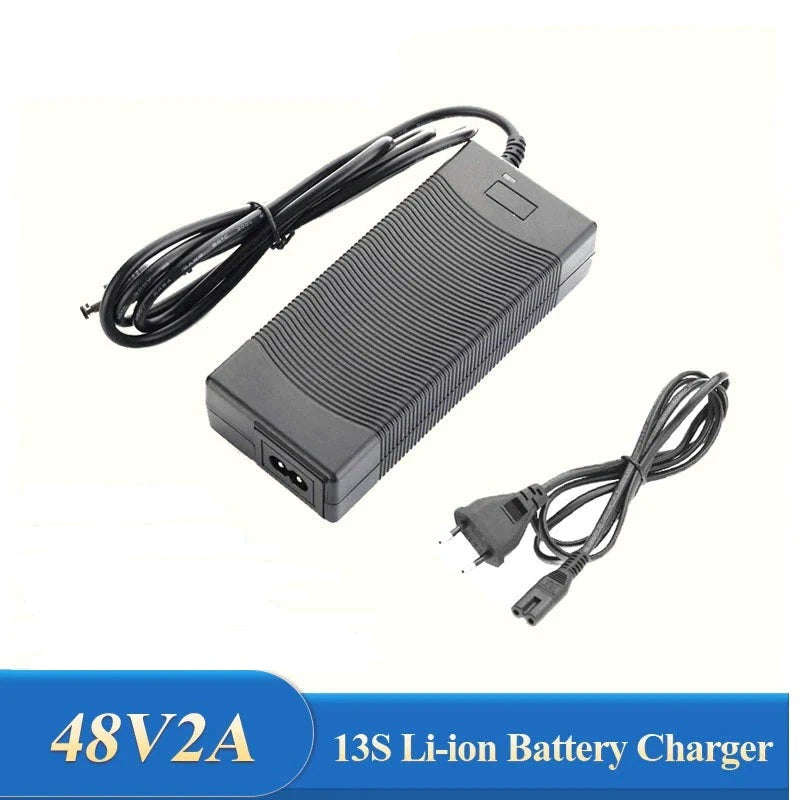

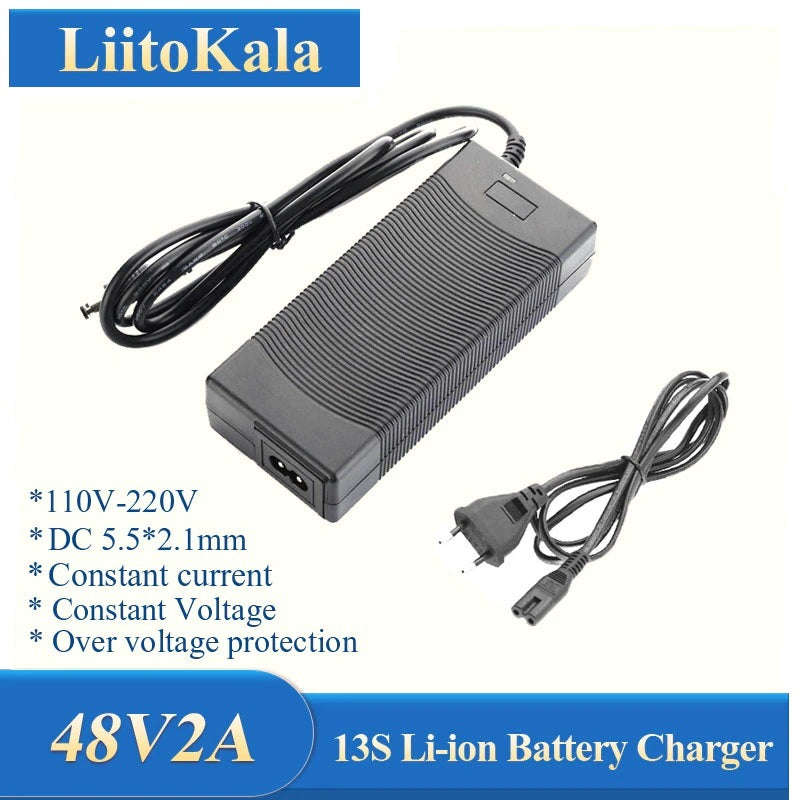

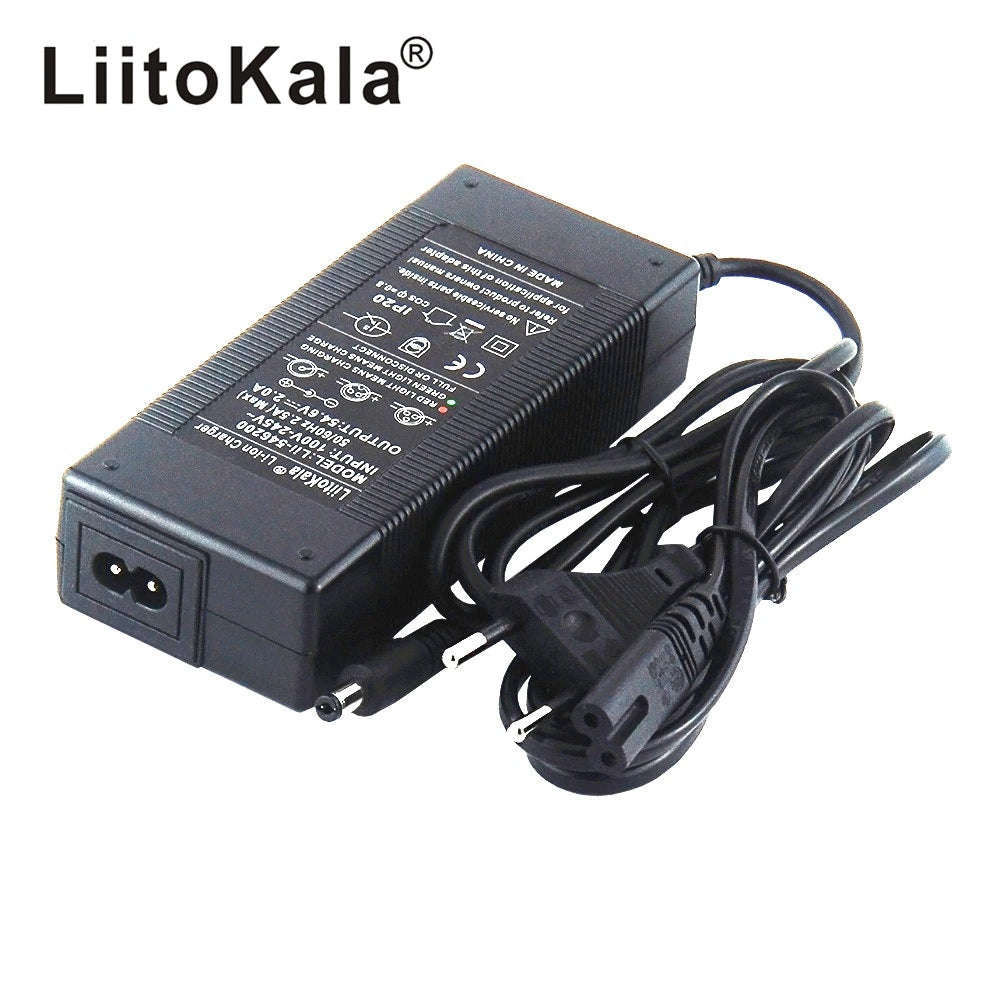

The LIITOKALA 48V 2A 13S Lithium Battery Pack Charger is a high-quality charger designed specifically for 48V lithium battery packs with 13 cells in series. It features a durable and compact design, making it easy to carry and store. This charger has an output voltage of 48V and a charging current of 2A, ensuring efficient and safe charging of your lithium battery pack.
With its advanced charging technology and built-in protection features, this charger provides a reliable and convenient solution for keeping your 48V lithium battery pack charged and ready to use. Whether you need to charge your electric bicycle, scooter, or any other device powered by a 48V lithium battery pack, the LIITOKALA 48V 2A 13S Lithium Battery Pack Charger is the perfect choice.
With: constant voltage, constant current, over voltage, over current protection; indicator light conversion; automatic recovery and other functions. Charging voltage, 54.6V (±0.1), the indicator light is green when no load Charging voltage range, the highest voltage is not higher than 55V, the voltage in the constant current phase is random, but not higher than 55V Output current, 2A, constant current charging, the indicator light is red Conversion current, 200mA (ie constant current 10%), after the full conversion, the indicator light is green Ripple and noise (Note 3), <300mVp-p (constant voltage) Line adjustment rate (Note 4), ±1% Load regulation rate (Note 5), ±1% DC output power, 110W Efficiency, >85% (maximum output voltage, full load) DC voltage adjustable range, 0-54.6V Input voltage range, 100 ~ 240VAC; 47 ~ 63Hz; 140-350VDC Input current, 0.03A/230V Inrush current, cold start current 2A/230V Leakage current, <3.5mA Overload protection, 105%~150% Type: FOLDBACK current limit output Reset: automatic recovery Temperature coefficient, ±0.03% °C (0 to 50 °C) OUTPUT Start, rise, hold time, 200ms, 50ms, 30ms Shock resistance, 10500Hz, 2G 10min./1 cycle, duration 60 minutes, each axis Pressure resistance, input - output: 1.5KVAC Isolation resistance, between input and output: 10M Ohms Working temperature, humidity, -10 ° C ~ +50 ° C, 20% ~ 90% RH Storage temperature, temperature, -10 ° C ~ +60 ° C, 20% ~ 90% RH
